Issue 51
Picture 1 shows the contents of this issue.
The Right Leg Outer Protection

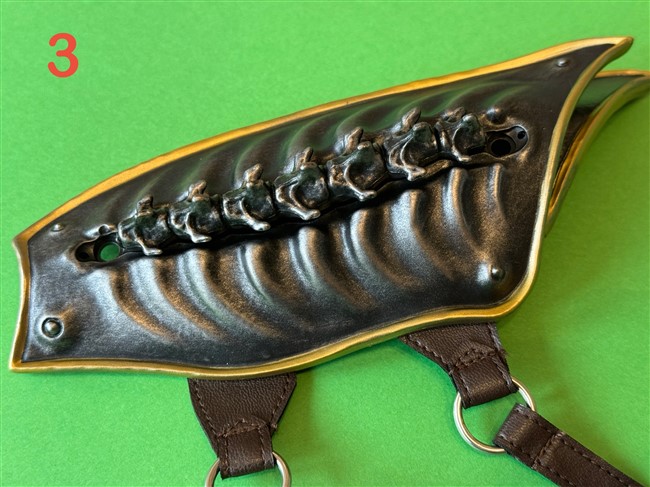

Place the spine of the protection (51B) onto the right leg assembly from issue 50, pictures 2 and 3. Secure in place using 2 x LP screws, picture 4.
Place the fastening straps (51D and 51E) on the inner pegs securing each strap using 2 x SP screws as illustrated in picture 5.
Picture 6 shows the assembly complete for this issue.
