Issue 57
Right Control Arm
Picture 1 shows the parts for this issue.
Begin the assembly by attaching the right strut rod (57E) to the right control arm (57A), secure them using 2 x “D” screws, picture 2.
Fix the control arm bracket (57B) using 2 x “F” screws as illustrated in picture 3. Fit the assembly from the first step using “D”, “K” and “L” screws as highlighted in picture 4.
Push fit the strut rod bracket in place as shown in picture 5.

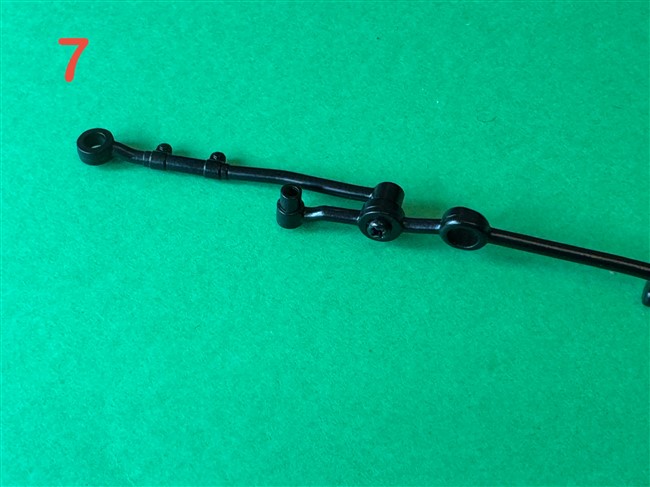

Retrieve the linkage assembly from issue 53 and attach the steering tie rod as illustrated in pictures 6 and 7.
That completes the assembly for this issue.
