STAGE 69:
Spare wheel.
Pic 1: Fit the wheel cover parts 69B and 69D together as shown and fix with 2 x A screws.
Pic 2: Press-fit the assembly in place on the front of the wheel 69A.
The red rim is to the front.
Pic 3: Press-fit the outer ring 69C in place.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,548 Points: 16,796 Location: ipswich
|
STAGE 70:
Exhaust 1.
Pic 1: Fix the tailpipe protector 70B to the end of the spoiler centre pillar 70A as shown using 1 x V screw.
The parts will only fit one way.
Pic 2: The exhaust elbows 70D and 70E will push-fit together.
Pic 3: Parts assembled.
Pic 4: Fit the exhaust end section 70C into the assembly with the hole closest.
Fit the exhaust pipe 70F onto the other end of 70C.
Pic 5: Store everything safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,548 Points: 16,796 Location: ipswich
|
STAGE 71:
Beam wings 1.
Pic 1: Retrieve the rear body assembly and fit the lower wing plates 71B and 71C into the slots at the rear as shown.
Make sure the wings are tilted up at the rear.
Pic 2: Fit the upper beam wing 71A in place and add the support plug 71D in the middle.

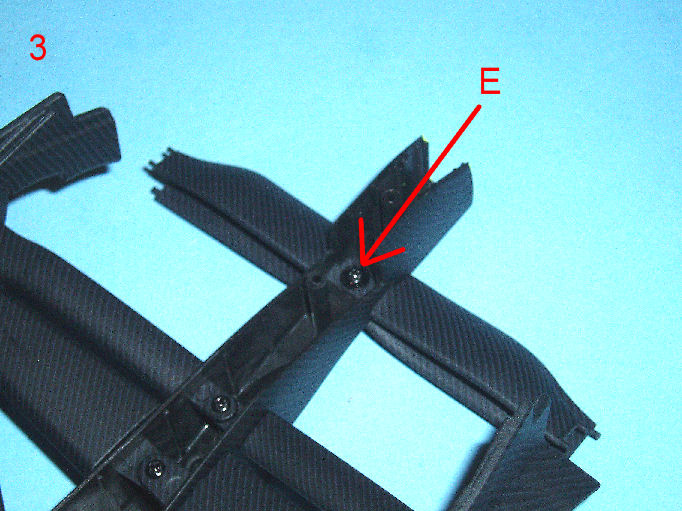

Pic 3: Fix from underneath with 1 x E screw.
Pic 4: Retrieve assemblies 70B and 70C.
Fit 70C in place on the body and then fit 70B on top.
Fix from underneath with 1 x A screw.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
|
