Issue 33
Picture 1 shows the contents of this issue
Place the shock absorber reservoir onto the caliper mounting, pictures 2 and 3.
Retrieve the shock absorber from issue 32 and attach the brake caliper mounting onto the end of the fork, securing it in place using 2 x AM screws, pictures 4 and 5.
Picture 6 shows the complete assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,176 Points: 21,835 Location: Northamptonshire, England
|
Issue 34
Picture 1 shows the contents of this issue
Place the lower fork plate onto the fork assembly as shown in picture 2. Using a pair of tweezers, align the two holes in readiness for the AM screw to secure the two parts together, pictures 3 and 4.
Note: The magazine shows the screw being inserted in the wrong hole, please use the illustration in picture 4 to show the correct positioning of the screw.
Now place the right handlebar into the end of the fork as shown in picture 5, again using a pair of tweezers to locate the two holes, securing the parts using a AM screw, picture 6.
Picture 7 shows the complete assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,176 Points: 21,835 Location: Northamptonshire, England
|
Issue 35
Picture 1 shows the contents of this issue
Get a little warm water in a suitable container and prepare two of the carbon decals. Place one of the decals in the water for around 30 seconds, then using a pair of tweezers take the decal of the paper and wrap it around the front of the fork slider as shown in picture 2. Carefully dab any excess water off using a soft paper towel.
Repeat the process with the second decal, placing it on the fork slider as indicated in picture 3.
Allow the decals to dry for at least two hours before moving onto the next stage.

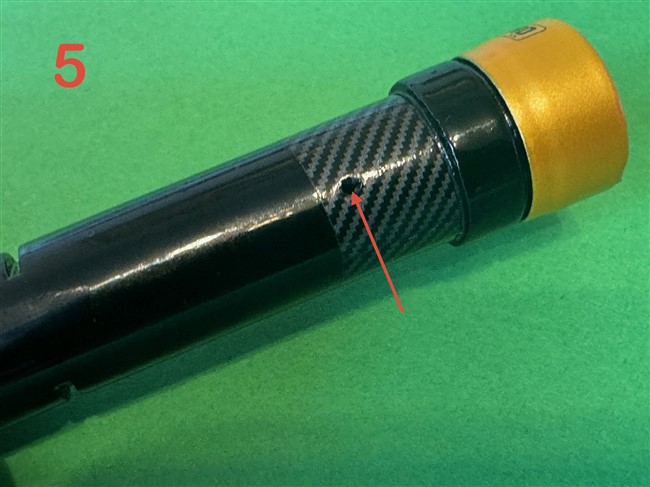

Finally, using a pair of tweezers, open the screw holes as shown in pictures 4 and 5.
Picture 6 shows the complete assembly for this issue.
