Issue 63 Part 1
Extension Cables and Brake Pipes
Picture 1 shows the parts for this issue.
Take the circuit board and the cables labelled D7, D8 and D9 and place them in their corresponding slots on the circuit board as shown in pictures 2 and 3. Now place in the cables marked D10, 11, 12 and 13, picture 4.
Fit the circuit board into the cars chassis between the engine bay and the dashboard using 4 x G type screws as shown in picture 5.
Take the extension cable D5 and place it into the circuit board and feed the cable through the left-hand side of the firewall, pictures 6 and 7.
Next, place the cables D1 and 2 into the circuit board as shown in picture 8. Feed the two cables on the top groove on the engine bay and secure them in place using the front and rear clips, pictures 9, 10 and 11.
That completes Part 1 of this assemblyMarkwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,191 Points: 21,880 Location: Northamptonshire, England
|
Issue 63 Part 2
Extension Cables and Brake Pipes
Plug the extension cable D6 into the circuit board, picture 12, then feed the cable through the hole in the right side of the firewall, picture 13.
Plug extension cables D2 and 4 into the circuit board and feed these two cables along the slot in the firewall as before, securing them in place using the two clips, pictures 14 and 15.
Take the selection of cables and place them in order as shown in picture 16.

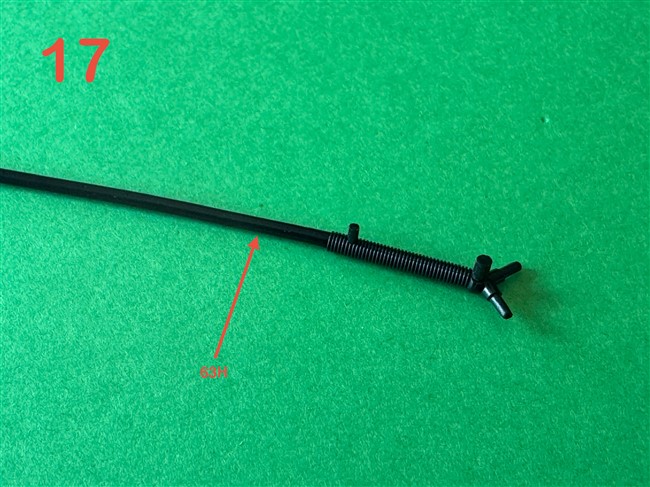

Turn the car over and place the cable 63H onto the parking cable as shown in picture 17. Place the parking brake on the side of the chassis floor and the free and of the cable in the hole, illustrated in pictures 18 and 19.
That completes Part 2 of this assemblyMarkwarren attached the following image(s): Regards
