STAGE 87:
Steering column.
Pic 1: Retrieve the steering wheel and remove the centre cap.
Pic 2: Fit the shaft 87D into the back of the wheel.
Note that one end has a shorter stepped part. This fits in the wheel.
Fix from the front with 1 x AM screw.
Pic 3: Re-fit the centre cap.
Pic 4: Fit the driver’s intercom as shown.
The part is not a tight fit so you may wish to use a little adhesive.
This is at the builder’s discretion.
Pic 5: Locate the column parts 87A and 87B.
They fit together, one on top of the other.
Pic 6: Fix using 4 x AP screws.
Pic 7: Peel the backing from the felt sheet 87C and wrap it around the black section of the column as shown.
Store everything safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,589 Points: 16,919 Location: ipswich
|
STAGE 88:
Dashboard and firewall.
Pic 1: Retrieve the interior and firewall assemblies.
Fit the firewall behind the locating tabs on the interior and fix the parts with 5 x EP screws.
Pic 2: Connect the 3 x ignition wires as shown.
The printed instructions say to pass the short lead through a hole in the firewall.
There is no hole – the wire connects to a pin.
Pic 3: Store the assembly and unused part safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,589 Points: 16,919 Location: ipswich
|
STAGE 89:
Dashboard brace.
Pic 1: Retrieve the dashboard from stage 88 and fit one of the ‘L’ shaped brackets 89C as shown.
Fix with 1 x EP screw.
The bracket will only fit one way.
Pic 2: Repeat on the other side.
Pic 3: Retrieve the column housing 87A and fit the larger bracket 89B as shown.
Fix with 2 x AP screws.
Pic 4: Fit the column housing onto the brace 89A as shown.
Pic 5: Fix from underneath with 2 x CM screws.
Pic 6: Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,589 Points: 16,919 Location: ipswich
|
STAGE 90:
Dashboard front panel.
Pic 1: Fit the 6 x dashboard lenses 5 x 90E and 1 x 90D in the order as shown.
Pic 2: Fit the instrument panel 90C over the top.
Pic 3: View from the other side.
Pic 4: Retrieve the main assembly and remove the screw and bracket indicated.
Keep the parts safe for later use.
Pic 5: Unplug the LED strip as shown.
Pic 6: Peel the backing paper from the LED strip and stick it to the dashboard front where shown.
Pic 7: Fit the dash panel 90B over the LED strip.
Pic 8: Fix from behind with 2 x QP screws.
Pic 9: Reconnect the plug and socket.
Store everything safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,589 Points: 16,919 Location: ipswich
|
STAGE 91:
Control panel.
Pic 1: Press-fit the tachometer control 91A into the large dial on the dash panel 90D.
It will only fit one way.
Pic 2: Locate the toggle switches 91C. You will only need two of them.
Pic 3: Carefully cut the switches off BELOW the larger bulge and press them through the holes in the edge of the panel 91B as shown
.
Pic 4: Locate the longer switches 91D.
You will need ten of them.
Pic 5: As before, cut them off the sprue carefully and press through the remaining holes in the panel from behind.
Pic 6: Fit the panel onto the end of the dashboard and fix from behind with 2 x AP screws.
Pic 7: Press-fit the control switch 91E into place where shown
Store safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,589 Points: 16,919 Location: ipswich
|
STAGE 92:
Roll cage brace.
Pic 1: Peel the backing from the 30mm strip of padding 92B and wrap it around the brace arm 92A as shown.
Pic 2: Repeat with the other padding strips in the positions indicated.
Pic 3: Locate the length of wire 92G.

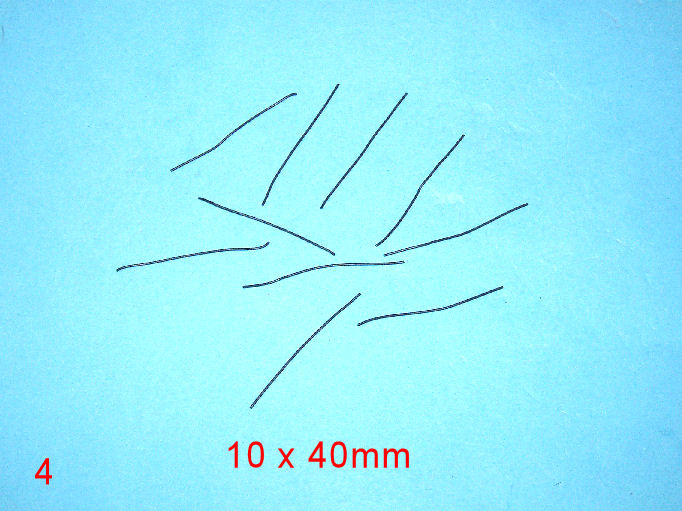

Pic 4: Cut the wire into 10 x 40mm lengths.
Pic 5: Wrap a piece of the wire around each end of the padding as shown.
Twist the wires to keep them in place.
Pic 6: Carefully cut off the excess wire and fold the remaining ends down.
Pic 7: Fit the brace to the interior assembly as shown and fix from underneath with 3 x AP screws
.
Store safely for now.roymattblack attached the following image(s):
|
|
|
|
