Issue 57
The Right Arm
Picture 1 shows the contents of this issue.
Retrieve the right arm assembly from the previous issue. Fit the rear cover of the right bicep so it fits between the shoulder and the forearm and secure it in place using 4 x type F screws, picture 2.
Now attach the front cover in the same way using 4 x type F screws, picture 3.
Finally attach the right elbow cover to the inner elbow part. The cover has two holes that fit into the pegs on the elbow, picture 4.
Picture 5 shows the assembly stage complete for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,210 Points: 21,937 Location: Northamptonshire, England
|
Issue 58
The Left Hand
Picture 1 shows the contents of this issue.

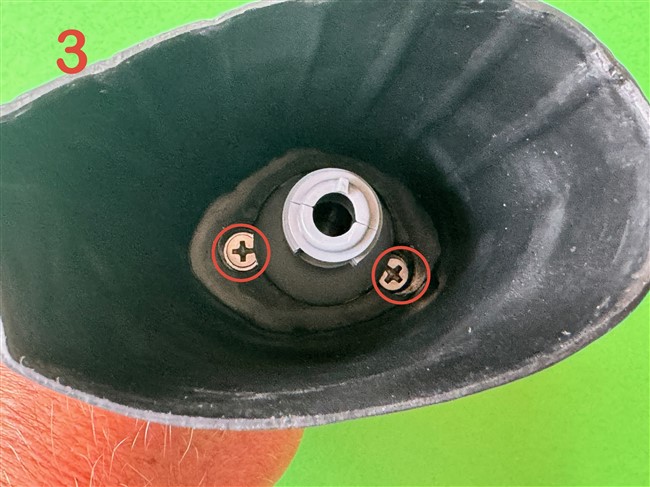

Insert the left glove cuff into the opening of the glove hand, picture 2. Secure the two parts in place using 2 x L type screws as shown in picture 3.
Picture 4 shows the assembly stage complete for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,210 Points: 21,937 Location: Northamptonshire, England
|
Issue 59
The Right Hand
Picture 1 shows the contents of this issue.
There is no assembly for this issue, keep the part safe as you will use it in the next assembly stage.
That completes the assembly for this stage.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,210 Points: 21,937 Location: Northamptonshire, England
|
Issue 60
The Right Hand and Lightsaber
Picture 1 shows the contents of this issue.
Attach the lightsaber decorations in the holes as shown in picture 2. Do the same with the other two decorations, picture 3.
Take the wrist part you received in the previous issue and slot the wrist into the glove feeding the cable through the hand, picture 4. Secure the two parts together using the type P screws, pictures 5 and 6.
Finally, find the lightsaber assembly you made earlier in the build and push fit it in place as shown in picture 7, then place the end of the cable into the larger slot inside the lighsaber as illustrated in picture 8.
Picture 9 shows the assembly stage complete for this issue.
