Issue 66
The Upper Left Spider Leg
Picture 1 show the parts for this issue

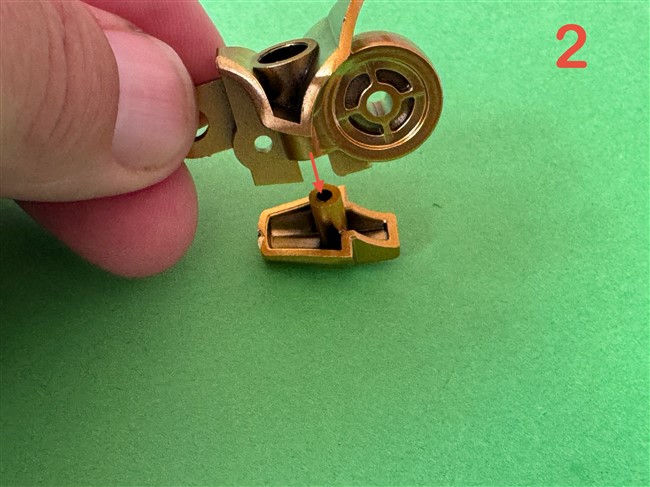

Attach the claw joint to the claw joint detail by using a type E screw, pictures 2, 3 and 4.
Push fit the claw upper profile as shown in picture 5. Identify the two claw sides, picture 6 and place the right inner body, the bottom one in picture 6, onto the part you’ve just assembled, picture 7. Place a type E screw to hold it in place, picture 8.
Fit the left inner claw on the other side and secure it in place using a type E screw, picture 9.
Insert the assembly into the claw tip as illustrated in pictures 10 and 11.
Fit the right blue claw plate into the claw tip, picture 12. Turn the assembly over and apply two type E screws to hold it in place, picture 13. Push fit the other side of the blue claw plate, picture 14.
Picture 15 shows the assembly complete for this issue.
