Issue 63
Right Leg
Picture 1 shows the contents of this issue.
Retrieve the right knee assembly from issue 63. Insert the friction disc in the base and secure in place using 4 x V screws, picture 2.
Slot the right mobile knee bar onto the friction disc and secure in place using 4 x W screws, picture 3.

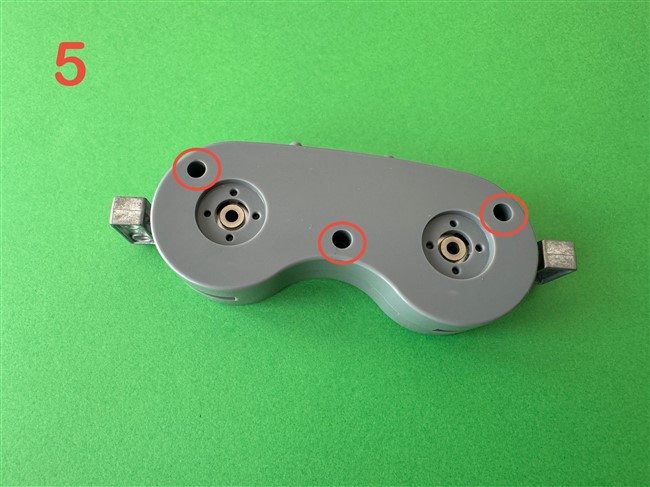

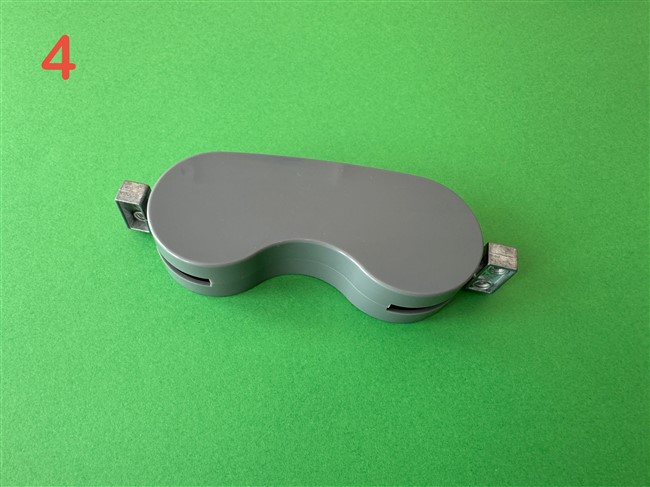

Place the cover over the assembly, picture 4, then turn the part over and secure it in place using 3 x F screws, picture 5.
That completes the assembly for this stage.Markwarren attached the following image(s): Regards
