STAGE 105:
Air intake and left wheel well.
Pic 1: Retrieve the upper and lower ready body panels.
Turn the upper panel upside down and fit the lower panel in place as shown.
Take care that the grilles indicated are fitted into the slots in the upper body.
Pic 2: Fix the parts using 6 x AM screws saved from the previous issue.
Pic 3: Fix with a further 4 x AM screws saved from the previous issue.
Pic 4: Soak the decal from the previous issue in warm water and then slide the decal in place, dabbing it down with a paper towel so it conforms to the body shape.
Pic 5: Fit the three number lights from the previous issue.
Make sure the white area on the lights face the numbers.
Pic 6: Save the body and unused parts safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,673 Points: 17,171 Location: ipswich
|
STAGE 106:
Air intake and right wheel well.
Pic 1: Fit the air intake parts 106A and 106B together as shown.
Pic 2: Fit the air intake parts 105A and 105B together as shown.
Pic 3: Fit 105A into the upper rear body where shown and fix with 1 x AP and 1 x AM screws.

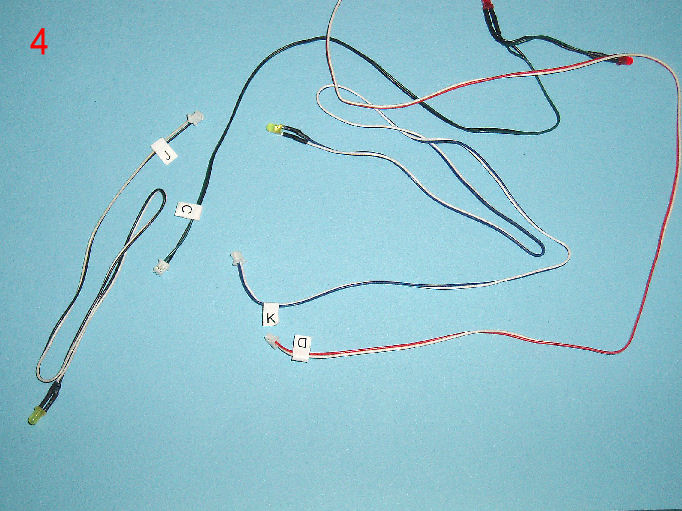

Pic 4: Retrieve the rear lights ‘C’, ‘D’ ‘J’ and ‘K’.
Pic 5: Fit LED ‘K’ where shown.
Pic 6: Fit the 2 x LED’s ‘D’ where shown.
Pic 7: Fit LED ‘J’ where shown.
Pic 8: Fit the 2 x LED’s ‘C’ where shown.
Pic 9: Run the cables under 106A as shown and fix with 1 x AM and 1 x AP screws.
Pic 10: Store everything safely for now.roymattblack attached the following image(s):
|
|
|
|
