STAGE 105:
Air intake and left wheel well.
Pic 1: Retrieve the upper and lower ready body panels.
Turn the upper panel upside down and fit the lower panel in place as shown.
Take care that the grilles indicated are fitted into the slots in the upper body.
Pic 2: Fix the parts using 6 x AM screws saved from the previous issue.
Pic 3: Fix with a further 4 x AM screws saved from the previous issue.
Pic 4: Soak the decal from the previous issue in warm water and then slide the decal in place, dabbing it down with a paper towel so it conforms to the body shape.
Pic 5: Fit the three number lights from the previous issue.
Make sure the white area on the lights face the numbers.
Pic 6: Save the body and unused parts safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,684 Points: 17,204 Location: ipswich
|
STAGE 106:
Air intake and right wheel well.
Pic 1: Fit the air intake parts 106A and 106B together as shown.
Pic 2: Fit the air intake parts 105A and 105B together as shown.
Pic 3: Fit 105A into the upper rear body where shown and fix with 1 x AP and 1 x AM screws.
Pic 4: Retrieve the rear lights ‘C’, ‘D’ ‘J’ and ‘K’.
Pic 5: Fit LED ‘K’ where shown.
Pic 6: Fit the 2 x LED’s ‘D’ where shown.
Pic 7: Fit LED ‘J’ where shown.
Pic 8: Fit the 2 x LED’s ‘C’ where shown.
Pic 9: Run the cables under 106A as shown and fix with 1 x AM and 1 x AP screws.
Pic 10: Store everything safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,684 Points: 17,204 Location: ipswich
|
STAGE 107:
Trunk partition and light housing.
Pic 1: Locate the partition parts 107A and 107B.
They will press-fit together.
Pic 2: Parts assembled.
Pic 3: Fit the assembly into the rear body as shown, noting where the light wires exit.
Fix with 2 x AM and 1 x AP screws.

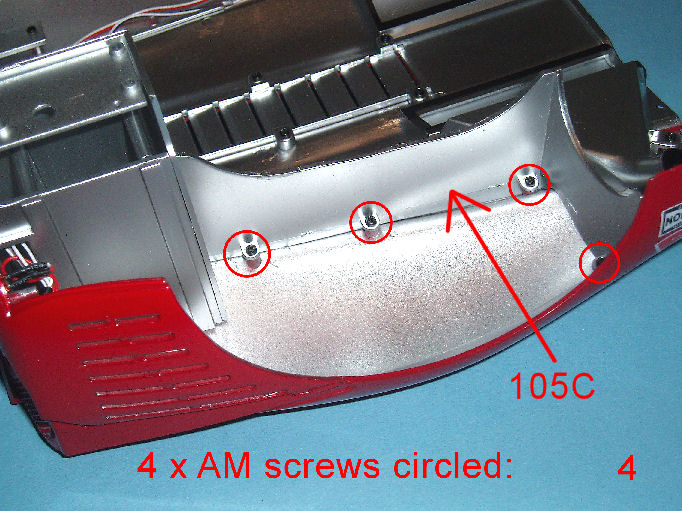

Pic 4: Fit the wheel well 105C in place and fix with 4 x AM screws.
Pic 5: Tuck the LED wires behind the partition.
Store the body and unused parts safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,684 Points: 17,204 Location: ipswich
|
STAGE 108:
Trunk partition and light housing.
Pic 1: Locate the partition parts 108A and 108B.
They will press-fit together.
Pic 2: Parts assembled.
Pic 3: Route the wires at the rear along the body as shown and fix with a strip of tape 108D.
Pic 4: Fit the assembly into the rear body as shown, noting where the light wires exit.
Fix with 2 x AM and 1 x AP screws.
Pic 5: Route the wires along the inside of the body as shown and fix with strips of tape 108D.

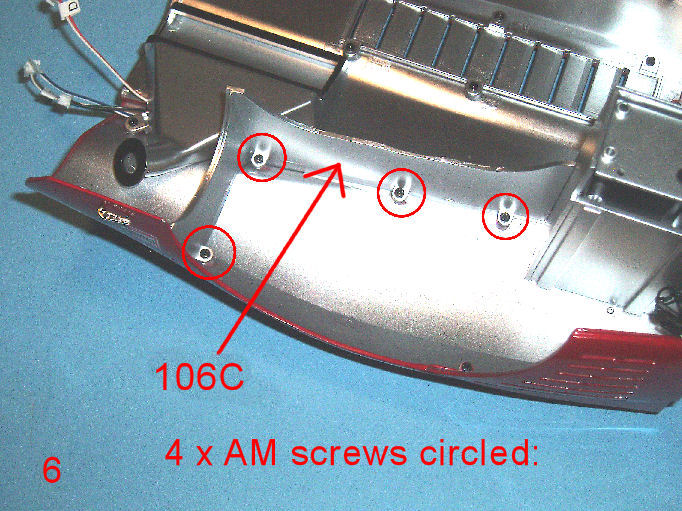

Pic 6: Fit the wheel well 106C in place and fix with 4 x AM screws.
Pic 7: Tuck the LED wires behind the partition.
Store the body and unused parts safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,684 Points: 17,204 Location: ipswich
|
STAGE 109:
Left hood components.
Pic 1: Fit the rear wing 109A in place on the rear body.
Pic 2: Fix from the inside with 2 x UM screws.
Pic 3: Fix the light housing 107C in place as shown with 2 x AM screws.
Pic 4: Fix the lower wing 109B in place with 2 x AM screws.
Pic 5: Press-fit the cover plate 109C in place.
Store safely for now.roymattblack attached the following image(s):
|
|
|
|
