STAGE 27:
Fittings and hoses.
Pic 1: Assemble hose parts 27A, 27B and 27C as shown.
Pic 2: Slide the long hose under and between the manifolds as shown.
Pic 3: Fit the long end of the hose into the hole on the manifold top as indicated.
Highlighted in red for clarity.
Pic 4: Feed the ‘Tee’ end down behind the connecting pipe as shown.
Pic 5: Fix the valves 27D and 27E where indicated using 1 x G screw in each.
Fit the hoses on the ‘Tee’ connector into the holes on the sides of each valve.
Pic 6: Retrieve the engine cover from stage 24 and fit it in place as shown.
Pic 7: Fix 2 x throttle bodies 26A as shown using 3 x F screws in each.
Pic 8: Repeat on the other side.
Store the engine safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,691 Points: 17,225 Location: ipswich
|
STAGE 28:
Left exhaust guard.
Pic 1: Fix the bracket 28B to the guard 28A in the position shown using 2 x B screws.
Pic 2: Fit the guard over the left exhaust and fix using 1 x G screw where indicated.
Store the engine safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,691 Points: 17,225 Location: ipswich
|
STAGE 29:
Right exhaust guard.
Pic 1: Fix the bracket 29B to the guard 29A in the position shown using 2 x B screws.
Pic 2: Fit the guard over the left exhaust and fix using 1 x G screw where indicated.
Store the engine safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,691 Points: 17,225 Location: ipswich
|
STAGE 30:
Gearbox housing.
Pic 1: Retrieve the gearbox from stage 9 and fit the housing part 30A as shown.
Pic 2: Fix from the end with 2 x F screws.

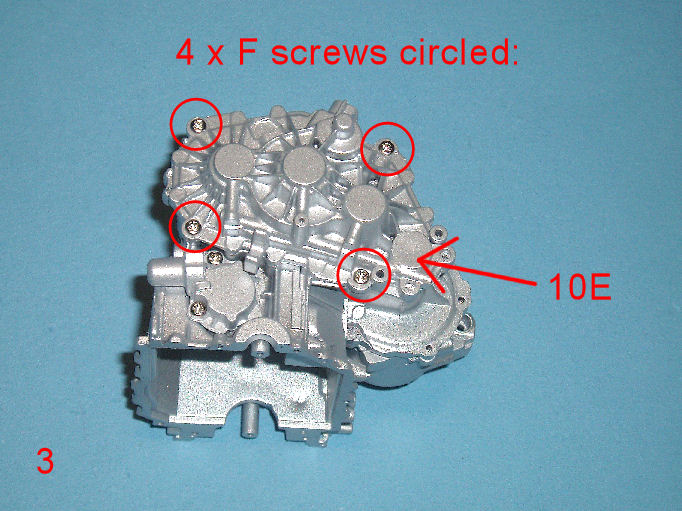

Pic 3: Retrieve the cover 10E and fix it in place as shown with 4 x F screws.
Pic 4: Fix the end plate 30B to the housing from stage 7 with 3 x F screws.
Pic 5: Fix the side cover 30D with 4 x B screws.
Pic 6: Fix the end cover 30D with 5 x F screws.
Pic 7: Fix the shaft 30E in place with 2 x B screws.
It will only fit one way.
Pic 8: Fit the cover plate from stage 7 and fix with 5 x F screws.
Store safely for now.roymattblack attached the following image(s):
|
|
|
|
