Issue 69
Right Leg
Picture 1 shows the contents of this issue.
Slot the right an ankle friction disc into the friction disc base, then secure it in place using four type J screws, picture 2.

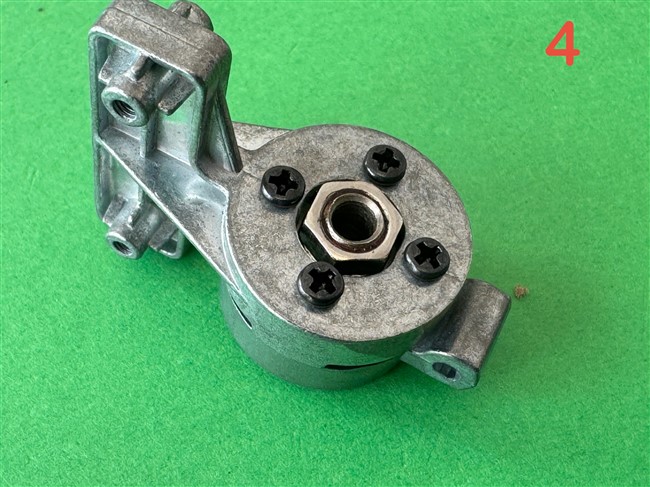

Next, slot the right ankle mobile bar on the top of the assembly and secure it in place using four type O screws, pictures 3 and 4.
Retrieve the right leg assembly you've been building in previous issues and attach the ankle joint you've built in this issue as shown in picture 5. Turn the assembly over and secure it in place using two type M screws picture 6.
That completes the assembly for this stage.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,271 Points: 22,120 Location: Northamptonshire, England
|
Issue 70
Right Leg
Picture 1 shows the contents of this issue
Retrieve the right leg assembly you've been working on in previous issues and fit the right shin over the front of the right knee as shown in picture 2. Secure the assembly in place using two type F screws to the top and two type M screws to the bottom.
Fit the right kneecap onto the pegs on the knee joint in the central part of the leg, as shown in picture 3.
Place the two friction spacer washers on top of the end of the ankle joint that sticks out from the bottom of the legs. Now slot the boot hinge bracket into the part where you place the washers as illustrated in picture 4. Rest the screw washer inside the bracket you fitted in the previous step, as shown in picture 5. Now secure this entire ankle assembly using the type N screw, picture 6.
That completes the assembly for this stage.
