STAGE 87:
Rear right wheel.
Pic 1: Locate the wheel cover parts 87B and 87C.
They will fit together as indicated.
Fix the parts together with 2 x A screws.
Pic 2: Press the assembly into the front of the wheel 87A as shown.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,717 Points: 17,303 Location: ipswich
|
STAGE 88:
Upper radiator 2.

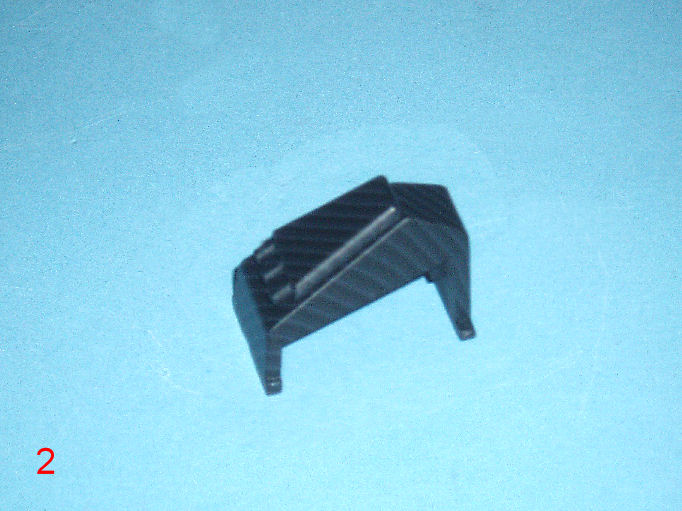

Pic 1: Locate the coolant hose connector parts 88B and 88C.
They will press-fit together.
Pic 2: Parts assembled.
Pic 3: Retrieve the air housing 19B and fit the assembly in the top slots.
Pic 4: Fit the other half of the housing 19A and fix with 3 x A screws.
Pic 5: Retrieve the upper radiator from stage 86 and fit the plate 88A as shown.
It will only fit one way.
Pic 6: Fit the two assemblies together as shown and fix with 2 x A screws.
Pic 7: Retrieve the rear chassis assembly and fit the shock absorber bracket 88D as shown.
Store everything safely for now.roymattblack attached the following image(s):
|
|
|
|
