STAGE 105:
Rear lights and grille.
Pic 1: Retrieve the rear body and fit the tail lights 105B and 105D as shown.
Fix from behind with 2 x AP screws in each.
Pic 2: Press-fit the light covers 105C and 105E.
Pic 3: Turn the assembly over and fit the grill 105A as shown and fix with 3 x AM screws on the inside.
Pic 4: Fix the bumper from stage 104 as shown using 5 x AM screws.
Pic 5: Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,722 Points: 17,318 Location: ipswich
|
STAGE 106:
Rear body inner shell.
Pic 1: If you have not already done so, disconnect the 4 x wires/plugs at the rear of the car.
Pic 2: Retrieve the rear body and place it so you can work on the inside.
Plug the shorter wire LED on wire 15 into the lower hole on the right light cluster.
Pic 3: Plug in the LED’s on wire 13 as shown.
Pic 4: On the other side, add LED 15 in the lower hole.
Pic 5: Connect the 2 x LED’s on wire 12 as shown.
Pic 6: Carefully run all the wires around the inside of the body as shown and tape in place with pieces of tape 71D.
NOTE – It is important that you keep the wires flat and side-by-side.
Pic 7: Fit the inner shell 106A in place, checking that the wires all pass through the cut-outs in the lower corners and top right.
Fix with 6 x AM screws where shown.
Pic 8: Fix with another 5 x AM screws in the roof section.
At this stage you can reconnect the wires/plugs, add batteries and test the light functions.
Disconnect the wires/plugs afterwards.
Pic 9: Store safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,722 Points: 17,318 Location: ipswich
|
STAGE 107:
Rear left window.
Pic 1: Choose which window glass you wish to use – 107A or 107B.
Press-fit the glass into the frame 107C.

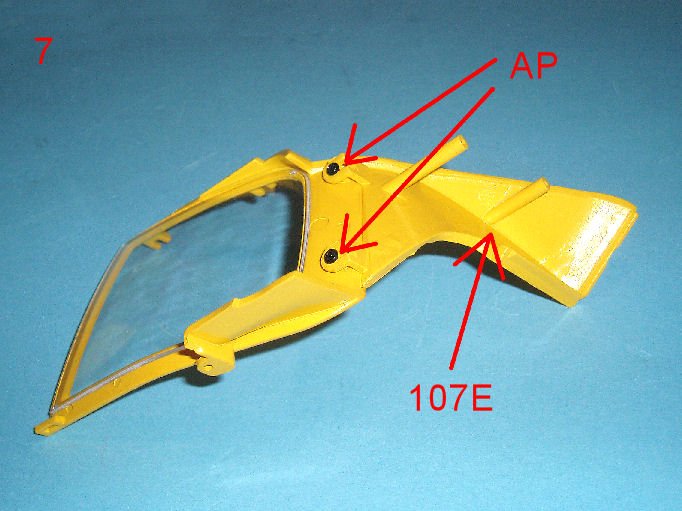

Pic 2: Fix the air intake part 107E to the frame using 2 x AP screws.
Pic 3: Fix the outer panel 107D to the assembly with 2 x AP screws.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
|
