STAGE 97:
Lower side valance.
Pic 1: Holding the passenger door open carefully, fit the valance 97A in place making sure the front and rear ends are tucked inside the body.
Fix in the door step with 2 x NM screws.
Pic 2: Peel the backing from the tread plate 97B and stick it in place where shown.
Make sure the ‘DMC’ is the right way up.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,741 Points: 17,375 Location: ipswich
|
STAGE 98:
Power coil lighting.
Pic 1: Remove the tape from the LED.
Pic 2: Use a piece of tape 98G to wrap around the LED and the 2 x clear filaments 98F.
Make sure the ends of the filaments are in contact with the LED.
Pic 3: Locate the power box parts 98A (L) and 98B.
Pic 4: Fix the filaments and LED into the box 98B with the bracket 98A and 2 x IP screws.
Pic 5: Fix the box to the front of the car as shown using 1 x KM screw.
Pic 6: Press the cover 98C in place and fit the filaments into the brackets as shown.
Pic 7: Connect the other ends of the filaments to the LED on the other side.
Pic 8: Fix the power box in place as before and fit the filaments into the brackets on that side.
Store the car safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,741 Points: 17,375 Location: ipswich
|
STAGE 99:
Power coil frame and grilles.
Pic 1: Press-fit the frame 99A into the clips as shown making sure the ends highlighted go into the holes in the power box on both sides.
Pic 2: Fix the grille 99B on the driver’s side using 2 x AP screws and 2 x IP screws.
The grill should curve downwards at the front.
Repeat with grille C on the other side.
Pic 3: Fit the central grille 99D by fixing the centre first with 2 x IP screws, then working outwards with AP screws.
Hold grilles 99B and 99C in place over the ends of 99D as you fit the screws.
Store the car safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,741 Points: 17,375 Location: ipswich
|
STAGE 100:

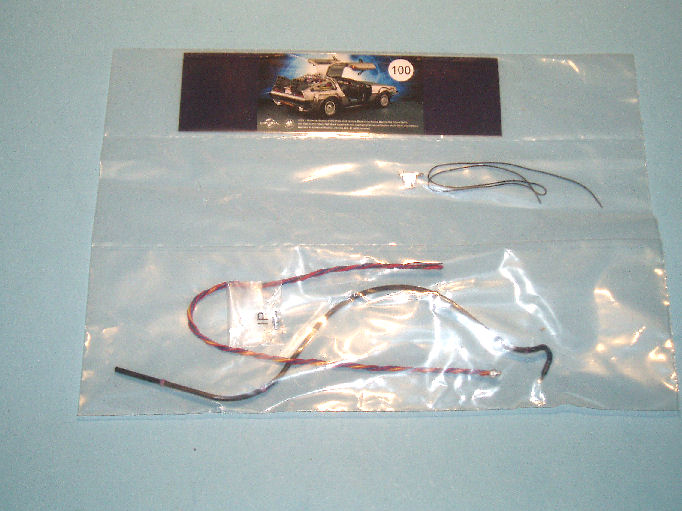

Cables, wires front left.
Pic 1: Attach the fitting 100A to the end of the cable 100C.
Pic 2: Fix the fitting to the left power box with 1 x IP screw.
Attach the cable to the side of the car with the pins/locating holes.
Pic 3: Connect the wires 100D to the power box as shown.
Pic 4: Using pieces of the wire 100B, attach the coloured wires to the cable at intervals by twisting the wire around them. Trim off any excess.
Store the car safely for now.
