STAGE 87:
Right door 2.
Pic 1: Fix the control panel 87D to the inner door 87A with 1 x AP screw from behind.
Pic 2: Press-fit the lock parts 87E and 87F to the door pull 87B as shown.
Pic 3: Press-fit the upper trim 87C in place.
Pic 4: Fix the assembly to the door with 2 x AP screws from behind.
Pic 5: Press-fit the speaker 87G into the door as shown.
Pic 6: Fix the door catch 87H to the inside of the door panel with 1 x AP screw.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,745 Points: 17,387 Location: ipswich
|
STAGE 88:
Right door 3.
Pic 1: Fit the window mechanism parts 88C and 88E together as shown and fix with 1 x DP screw.
Pic 2: Fit the lever 88D in place as shown and fix with 1 x DP screw.
Pic 3: Fit the regulator arm 88F as shown and fix with 2 x DP screws.
Pic 4: Fit the window 88A to the assembly and fix with 2 x JP screws.
Pic 5: Retrieve the door panel 87A and fit the window and mechanism as shown.
Fix with 2 x DP screws and 1 x AP screw.
Pic 6: Retrieve outer door 86A and fix the hinges 88B as shown using 2 x GM screws.
Pic 7: Fit the inner and outer door panels together and fix with 5 x QM screws.
Check the window operates correctly by turning the wheel at the bottom of the door.
Pic 8: Fix the door catch 88G to the body as shown using 1 x CP screw from the inside.
Repeat on the other side of the body.
Store everything safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,745 Points: 17,387 Location: ipswich
|
STAGE 89:
Windscreen frame.

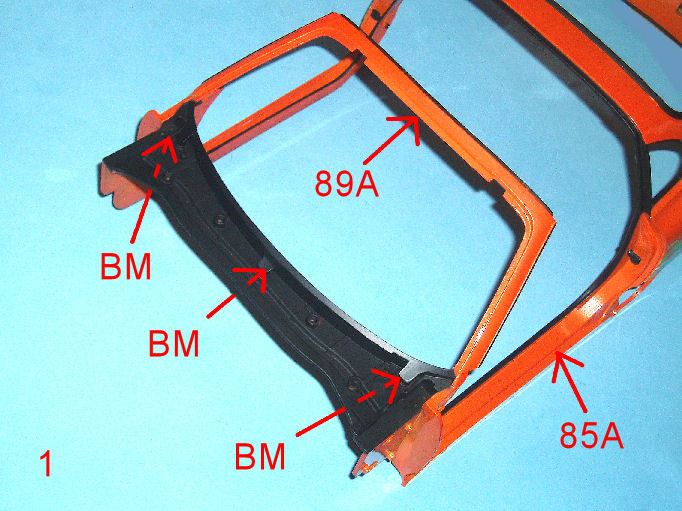

Pic 1: Fix the frame 89A to the body 85A with 3 x BM screws from underneath.
Pic 2: Fix the side of the frame with 1 x UM screw where indicated.
Repeat on the other side.
Pic 3: Fix the left hinge 89C as shown with 2 x SM screws.
Pic 4: Fit the right hinge 89D in the same way.
Pic 5: Store everything safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,745 Points: 17,387 Location: ipswich
|
STAGE 90:
Windscreen.
Pic 1: Press-fit the mirror parts 90B and 90C together as shown and then stick 1 x self-adhesive tab 90E to the end of the support arm 90B.
Pic 2: Peel the backing from the mirror 90D and stick it to the front of the mirror assembly.
Pic 3: Retrieve the body and fit the screen 90A in place by tucking the top tabs highlighted in yellow under the top of the screen surround and then lowering the screen and fixing at the bottom with 2 x BM screws.
Pic 4: Store everything safely for now.
