STAGE 87:
Right door 2.
Pic 1: Fix the control panel 87D to the inner door 87A with 1 x AP screw from behind.
Pic 2: Press-fit the lock parts 87E and 87F to the door pull 87B as shown.
Pic 3: Press-fit the upper trim 87C in place.
Pic 4: Fix the assembly to the door with 2 x AP screws from behind.
Pic 5: Press-fit the speaker 87G into the door as shown.
Pic 6: Fix the door catch 87H to the inside of the door panel with 1 x AP screw.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,758 Points: 17,426 Location: ipswich
|
STAGE 88:
Right door 3.
Pic 1: Fit the window mechanism parts 88C and 88E together as shown and fix with 1 x DP screw.
Pic 2: Fit the lever 88D in place as shown and fix with 1 x DP screw.
Pic 3: Fit the regulator arm 88F as shown and fix with 2 x DP screws.
Pic 4: Fit the window 88A to the assembly and fix with 2 x JP screws.
Pic 5: Retrieve the door panel 87A and fit the window and mechanism as shown.
Fix with 2 x DP screws and 1 x AP screw.
Pic 6: Retrieve outer door 86A and fix the hinges 88B as shown using 2 x GM screws.
Pic 7: Fit the inner and outer door panels together and fix with 5 x QM screws.
Check the window operates correctly by turning the wheel at the bottom of the door.
Pic 8: Fix the door catch 88G to the body as shown using 1 x CP screw from the inside.
Repeat on the other side of the body.
Store everything safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,758 Points: 17,426 Location: ipswich
|
STAGE 89:
Windscreen frame.
Pic 1: Fix the frame 89A to the body 85A with 3 x BM screws from underneath.
Pic 2: Fix the side of the frame with 1 x UM screw where indicated.
Repeat on the other side.
Pic 3: Fix the left hinge 89C as shown with 2 x SM screws.
Pic 4: Fit the right hinge 89D in the same way.
Pic 5: Store everything safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,758 Points: 17,426 Location: ipswich
|
STAGE 90:
Windscreen.
Pic 1: Press-fit the mirror parts 90B and 90C together as shown and then stick 1 x self-adhesive tab 90E to the end of the support arm 90B.
Pic 2: Peel the backing from the mirror 90D and stick it to the front of the mirror assembly.
Pic 3: Retrieve the body and fit the screen 90A in place by tucking the top tabs highlighted in yellow under the top of the screen surround and then lowering the screen and fixing at the bottom with 2 x BM screws.
Pic 4: Store everything safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,758 Points: 17,426 Location: ipswich
|
STAGE 91:
A pillar interior panel.
Pic 1: Press-fit the interior light 91C into the A panel 91A.
Pic 2: Press-fit the grab handle 91B as shown.
Pic 3: Retrieve the main body and attach 7 x sticky tabs 91F where shown.
Pic 4: Retrieve the LED wire labelled ‘A’ and fix it in place on the sticky tabs as indicated, with the LED in the centre of the top frame.
Pic 5: Fix the wire to the side of the body as shown with a piece of tape 22D.
Pic 6: Fit the inner frame 91A and fix with 4 x QM and 2 x IM screws.
Pic 7: Clip-fit the 2 x sun visors 91D and 91E where shown.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,758 Points: 17,426 Location: ipswich
|
STAGE 92:
Front left wing, suspension and steering.
Parts are included in this stage to replace the front coil springs with slightly shorter ones, and slightly more detailed steering rack.
Attached below is an explanation of how to do these upgrades.
Unfortunately there is far more involved than the printed instructions specify.
If you try to follow them, you will not be able to put the shock absorbers back, and the steering rack is impossible to remove.
I have studied the model closely to come up with this work-round but I have NOT undertaken the work.
Once completed, you cannot see the differences.
Whether you choose to do the modifications is up to you, considering the minimal differences it will make.
This is totally at the builder’s discretion but bear in mind there is a risk of stripping screw threads or even worse, breaking screws.

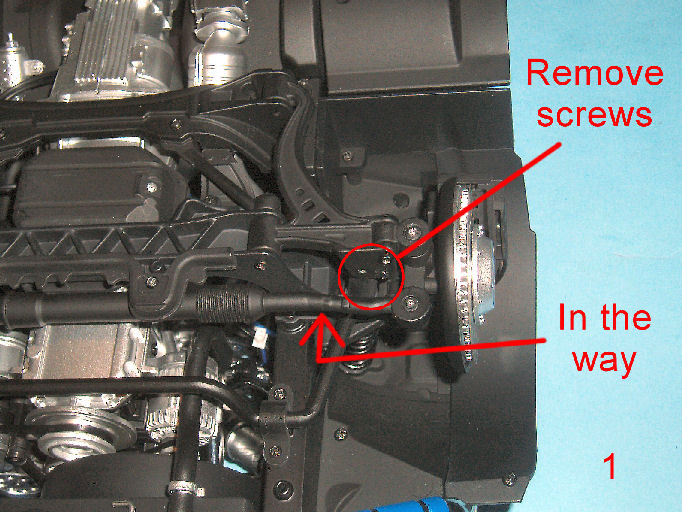

Pic 1: To replace the shock absorber springs.
Place the car upside down and remove the screws indicated.
Do this on both sides.
This is very awkward as the steering rack is in the way.
WARNING – Once these screws are removed there is NO turning back as the shock absorbers will move so the screws cannot be replaced.
Pic 2: Remove the two screws indicated.
Again, on both sides of the car.
You are supposed to be able to lift the suspension arm and the steering rack to be able to tilt the upright/hub out of the way.
This cannot be done with the central lower subframe in the way – you need to take the whole subframe assembly off.
Pic 3: The new steering rack beside the existing one to show the slight detail differences.
If you look, you can see the subframe goes over the steering rack already fitted, preventing you from lifting it off the pivots on the hub/uprights.
Pic 4: This shows the subframe that needs to be removed.
Pic 5: Remove the screw indicated on both sides of the chassis.

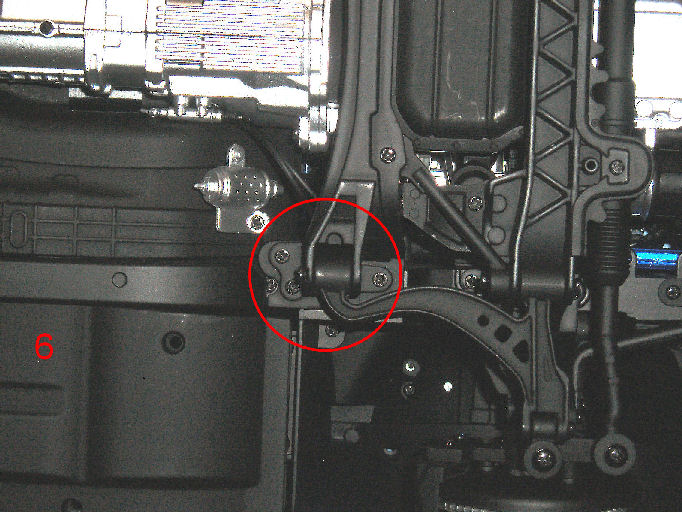

Pic 6: The 3 x screws shown here need to be removed. Again on both sides.
You will now be able to remove the subframe and steering rack.
Pic 7: Undo the screws holding the brake vents in place on both sides and remove them.

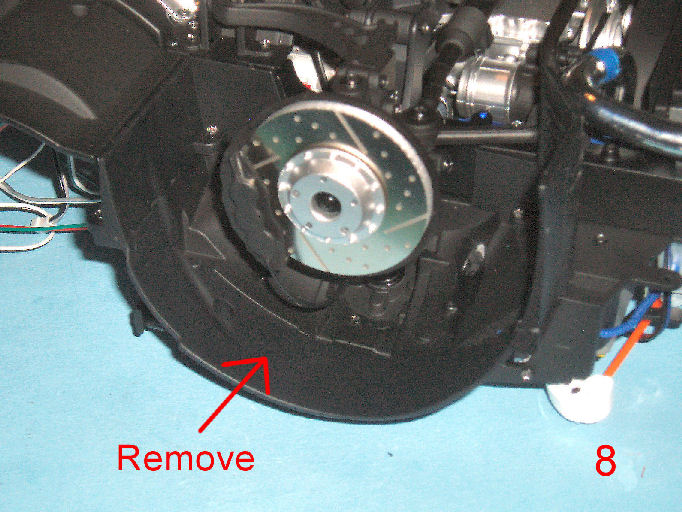

Pic 8: Undo the screws holding the outer wheel arches in place, and remove them.
With the car the right way up, you can now undo the top screws holding the hub/upright in place on the upper suspension arm.
Pic 9: Remove the screws holding the tops of the shock absorbers in place.
Carefully ‘wiggle the hub/uprights out, remove the shock absorbers and dismantle them to fit the new springs.
Reassembly is a reverse of all the above but make sure you fit the base of the shock absorber into the lower arm first.
Fix with the 2 screws shown in pic 1.
If you try to do this later in the reassembly you will not be able to fit the screws.
Pic 10: Fit the front wing inner supports 92B and fix with 3 x BM screws.
Pic 11: Store safely for now.roymattblack attached the following image(s):
|
|
|
|
