 Rank: Super-Elite        Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,766 Points: 17,450 Location: ipswich
|
STAGE 107:
Power coils.
NOTE – The printed instructions tell you to fit the 2 x clear filaments into the 6 x black brackets on the side of the car.
You will very possibly find this extremely difficult as the filaments are not flexible enough, and constantly spring out of place.
The method below should make the task easier.
Pic 1: Fit the filaments into the top bracket and then press-fit the frame 107A over the top.
Do not worry about the rest of the filaments just now.
Pic 2: Fit the filaments into the lower bracket on the side of the car and then add the frame 107B.
Pic 3: Fit the filaments into the next two brackets and then add the frame 107C, screwing it in place with 1 x AP screw, and 1 x AP screw in part 107B.
This will keep the filaments in place.
Pic 4: Fit the filaments into the bracket as shown and fix the frame with 1 x AP screw.
Pic 5: Turn the car over and fit the frame 107D s shown, trapping the filaments in the bracket.
Fix with 1 x AP screw.
Pic 6: Fit the grille 107I as shown, making sure the slightly curved end faces the back.
Fix the end near the junction box with 2 x IP screws.
Remove the AP screw fitted at step 5, and then add 2 x AP screws through the grille as shown.
Then fit another 2 x IP screws at the end of the grille.
Pic 7: Turn the car the right way up and fit the grille 107E, fixing it at the top with 2 x IP screws.
Remove the AP screw in the top bracket, fold the grille down and fix with 2 x AP screws.
Fix with a further 2 x IP screws in the lower bracket.
Pic 8: Fit the curved grille 107F and fix where shown with 2 x AP screws and 2 x IP screws.
Pic 9: Fit the curved grill 107H at the rear.
Remove the AP screws previously fitted and fix the grille with 4 x IP and 2 x AP screws where shown.
Pic 10: Remove the AP screw near the front and fit the grille 107G.
Fix with 4 x AP and 4 x IP screws where shown.
Store the car safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,766 Points: 17,450 Location: ipswich
|
STAGE 108:
Power coils.
NOTE – The printed instructions tell you to fit the 2 x clear filaments into the black brackets on the side of the car.
You will very possibly find this extremely difficult as the filaments are not flexible enough, and constantly spring out of place.
The method below should make the task easier.
Pic 1: Fit the filaments into the top bracket and then press-fit the frame 108A over the top.
Do not worry about the rest of the filaments just now.
Pic 2: Fit the filaments into the lower bracket on the side of the car and then add the frame 108B.
Pic 3: Fit the filaments into the next two brackets and then add the frame 108C, screwing it in place with 1 x AP screw, and 1 x AP screw in part 108B.
This will keep the filaments in place.
Pic 4: Fit the filaments into the bracket as shown and fix the frame with 1 x AP screw.
Pic 5: Turn the car over and fit the frame 108D s shown, trapping the filaments in the bracket.
Fix with 1 x AP screw.
Pic 6: Fit the grille 108I as shown, making sure the slightly curved end faces the back.
Fix the end near the junction box with 2 x IP screws.
Remove the AP screw fitted at step 5, and then add 2 x AP screws through the grille as shown.
Then fit another 2 x IP screws at the end of the grille.
Pic 7: Turn the car the right way up and fit the grille 108E, fixing it at the top with 2 x IP screws.
Remove the AP screw in the top bracket, fold the grille down and fix with 2 x AP screws.
Fix with a further 2 x IP screws in the lower bracket.
Pic 8: Fit the curved grille 108F and fix where shown with 2 x AP screws and 2 x IP screws.
Pic 9: Fit the curved grill 108H at the rear.
Remove the AP screws previously fitted and fix the grille with 4 x IP and 2 x AP screws where shown.
Pic 10: Remove the AP screw near the front and fit the grille 108G.
Fix with 4 x AP and 4 x IP screws where shown.
Store the car safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,766 Points: 17,450 Location: ipswich
|
STAGE 109:
Time field generator.
Pic 1: Locate the wires 109G and 109H.
Note the different lengths.
Pic 2: Attach the longer wire 109G to the pipe 109E with pieces of twisted wire 109I as shown.
Pic 3: Repeat with parts 109F and 109H.
Pic 4: Fix the shorter assembly 109F/H to the rear of the car as shown using 1 x AP screw.
Make sure the lower ends are fitted in the holes indicated, leaving the other two empty.
Pic 5: Fix the other wire assembly in the same way, fitting the lower ends in the other two holes.
Pic 6: Fit part 109B into the generator 109A as shown.
Pic 7: Fit part 109C into the other end.
Pic 8: Fix the mounting bracket 109D as shown using 2 x MM screws.
Pic 9: Fix the assembly to the roof of the car as shown using 2 x AP screws.
Store the model safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,766 Points: 17,450 Location: ipswich
|

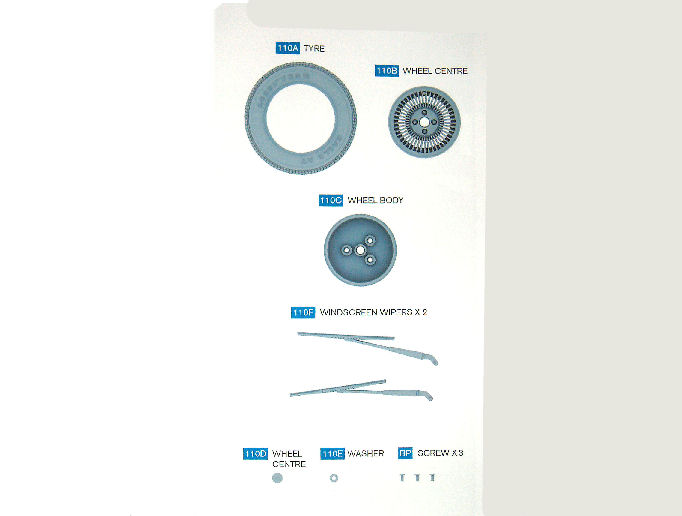

STAGE 110:
Spare wheel and windscreen wipers.
Pic 1: Fit the rear wheel rim 110C into the tyre 110A.
Pic 2: From the other side fit the front rim 110B in place, lining up the screw fixing holes.
Fit the washer 110E and then the centre cap 110D.
Pic 3: Fix the rim parts together with 3 x BP screws from behind.
Pic 4: The spare wheel can be placed under the retaining strap in the front of the car and the strap pulled tight.
Pic 5: Press-fit the wipers 110F in place as shown.
Store the car safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,766 Points: 17,450 Location: ipswich
|
STAGE 111: Reactor platform. Pic 1: Fix the tank 111B to the platform 111A with 1 x GP screw from underneath. Pic 2: Push the cable 111D onto the pin on the base as shown. Pic 3: Fix the cylinder 111C to the base with 2 x AP screws from underneath. Pic 4: Fix the unit 111E to the base with 2 x GP screws from underneath. Store safely for now. roymattblack attached the following image(s):
|
|
|
|
