Issue 72
The Upper Right Spider Leg
Picture 1 show the parts for this issue
Connect the claw joint and the claw joint detail together by securing them both using an E type screw, pictures 2 and 3. Push on the claw upper profile, picture 4.

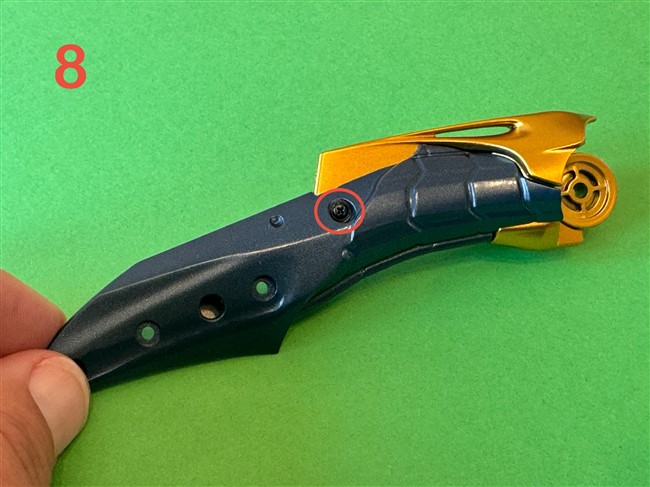

Identify the left and right side of the clamps, picture 5. Fit the assembly you’ve just done into the right inner claw body, picture 6, and secure it in place using an E type screw, picture 7. Now fit the left claw body and secure in place using an e type screw, picture 8.
Slide the claw tip over the claw body, picture 9.
Fit the right blue claw plate, picture 10, turning the assembly over and securing it using 2 x E type screws, picture 11. Finally, push fit the left claw plate in place, picture 12.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,312 Points: 22,243 Location: Northamptonshire, England
|
Issue 73
The Upper Right Spider Leg
Picture 1 show the parts for this issue
Retrieve the assemble from issue 71 fit the lower blue plate into the recess, picture 2. The turn the assembly over and fit the upper assembly securing it place using 3 x E type screws, picture 3. Place the three covers over the screws, picture 4. Note the covers are number in order of their assembly on the inside.
Place a washer on either side of the third joint, then attach the two third gold joint segments along with the screw and M3 nut, pictures 5, 6 and 7.
Place a washer on both sides of the claw joint assembly and place it on the end of the third segment in the same way as before using a screw and an M3 nut, pictures 8, 9 and 10.
That completes the assembly for this issue.
