STAGE 112:
Reactor components.

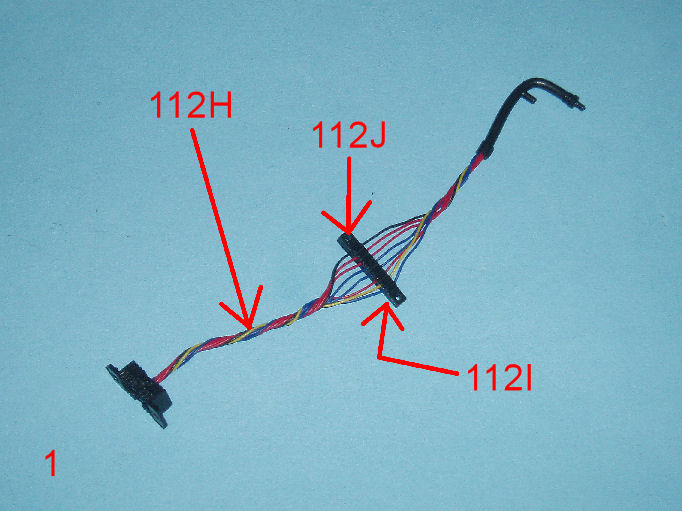

Pic 1: Un-twist the centre section of the wires 112H and then position them in the grooves in bracket 112I and hold them in place with 112J as shown.
Pic 2: Fix the bracket to the reactor base with 2 x SM screws.
Note the black component is at the top.
Pic 3: Connect the tube end of the wires to the red cylinder and base as indicated.
Pic 4: Fix the other end to the tank using 2 x AP screws.
Pic 5: Fix the component 112A to the base with 1 x AP screw from underneath.
Pic 6: Fix the components 2 x 112E to the base with 1 x AP screw from underneath in each.
Pic 7: Press-fit the pipe 112G in place as shown.
Pic 8: Assemble the parts 112B, 112C and 112D as shown.
Pic 9: Press-fit the pipe 112F in place where indicated.
Pic 10: Fix the assembly 112B/C/D in place where shown using 1 x BP screw from underneath.
Store safely for now.roymattblack attached the following image(s):
|
|
|
|
