Issue 81
Picture 1 shows the contents of this issue. It also shows the parts in order of assembly.
Right Wrist Joint
Insert the shaft into the joint base and insert the shaft pin, picture 2. Place the spring over the rod then place them into the joint base as shown in picture 3. Place the joint base cover on top and secure it in place using pin nut and 2 x HM screws, picture 4.
Place the assembly into the wrist joint, picture 5, then secure it in place by attaching the support and fixing it in place using 3 x UP screws, picture 6.
Attach the wrist joint to the right forearm, picture 7 and secure it in place using 4 x KP screws, picture 8.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 82
Picture 1 shows the contents of this issue. It also shows the parts in order of assembly.
Right Thumb and Shoulder Pad Support
Insert the shoulder pad support A inside the support B and place the smaller of the pins to hold them in place, picture 2. Next, place the shoulder pad joint on the told and hold it in place using the larger pin as shown in picture 3.
As you did with the previous hand, identify all the small finger and thumb segments. Take the thumb structure and place the first top three segment by push fitting the parts in place, picture 4. Do the same with the bottom segments, picture 5.
Picture 6 shows the completed assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 83

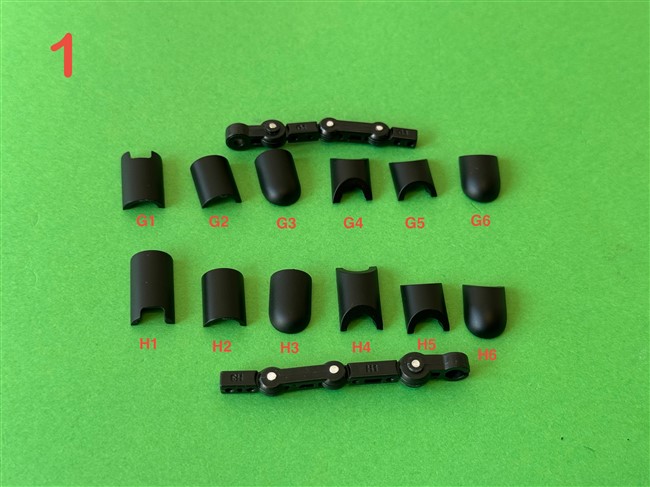

Picture 1 shows the contents of this issue. It also shows the parts in order of assembly.
Right Index and Middle Finger

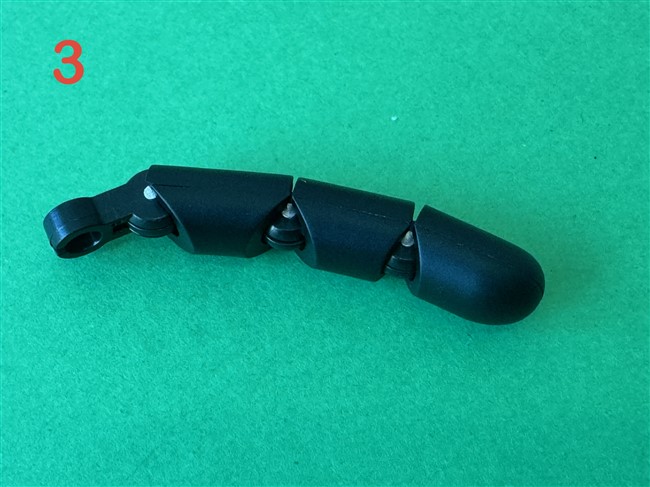

As you did with the previous hand, identify all the index finger segments. Take the index structure and place the first top three segment by push fitting the parts in place, picture 2. Do the same with the bottom segments, picture 3.

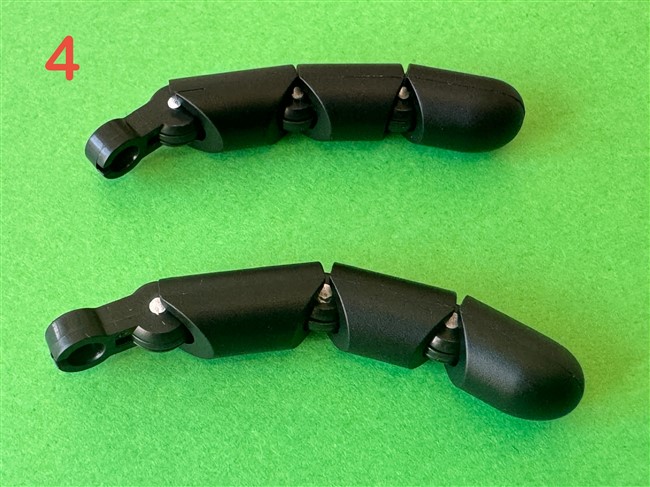

Carry out the same process with the middle finger as shown in picture 4.
That completes the assembly for this issue.Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 84

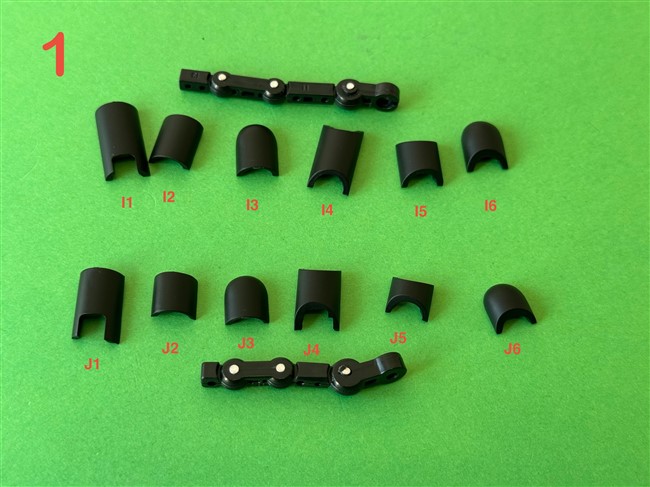

Picture 1 shows the contents of this issue. It also shows the parts in order of assembly.
Right Ring and Little Finger
As you did with the previous hand, identify all the ring and little finger segments. Take the structures and place the first top three segment by push fitting the parts in place. Do the same with the bottom segments., picture 2.
That completes the assembly for this issue.Markwarren attached the following image(s): Regards
