Issue 72
The Upper Right Spider Leg Picture 1 show the parts for this issue Connect the claw joint and the claw joint detail together by securing them both using an E type screw, pictures 2 and 3. Push on the claw upper profile, picture 4.
Identify the left and right side of the clamps, picture 5. Fit the assembly you’ve just done into the right inner claw body, picture 6, and secure it in place using an E type screw, picture 7. Now fit the left claw body and secure in place using an e type screw, picture 8.
Slide the claw tip over the claw body, picture 9.
Fit the right blue claw plate, picture 10, turning the assembly over and securing it using 2 x E type screws, picture 11. Finally, push fit the left claw plate in place, picture 12.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards Markwarren (Mark) Admin
|
|
|
Rank: Administration         Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 73
The Upper Right Spider Leg Picture 1 show the parts for this issue Retrieve the assemble from issue 71 fit the lower blue plate into the recess, picture 2. The turn the assembly over and fit the upper assembly securing it place using 3 x E type screws, picture 3. Place the three covers over the screws, picture 4. Note the covers are number in order of their assembly on the inside.
Place a washer on either side of the third joint, then attach the two third gold joint segments along with the screw and M3 nut, pictures 5, 6 and 7.
Place a washer on both sides of the claw joint assembly and place it on the end of the third segment in the same way as before using a screw and an M3 nut, pictures 8, 9 and 10.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards Markwarren (Mark) Admin
|
|
|
Rank: Administration         Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 74

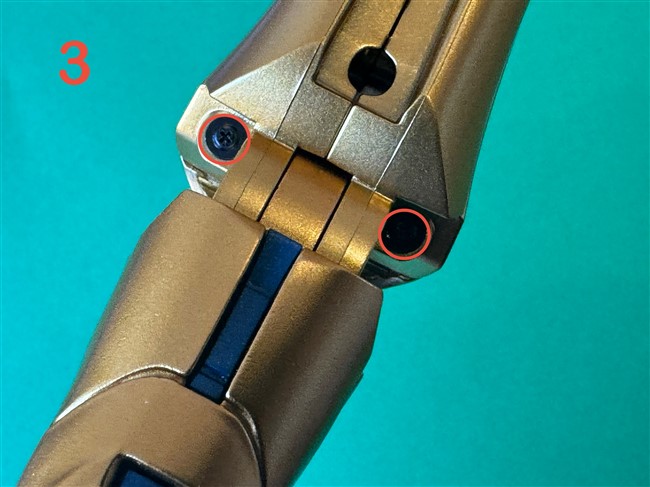

The Upper Right Spider Leg Picture 1 show the parts for this issue Retrieve the assembly from issue 73. On the outside of the third segment, fit the third joint cover on the outside, picture 2. Turn the assembly over and secure it in place using 2 x G screws, picture 3. Place the two blue circular joint covers on the side as shown in picture 4, push fitting the two parts in place.
Fit the gold detail on the upper blue plate securing it in place using a type E screw, pictures 5 and 6.

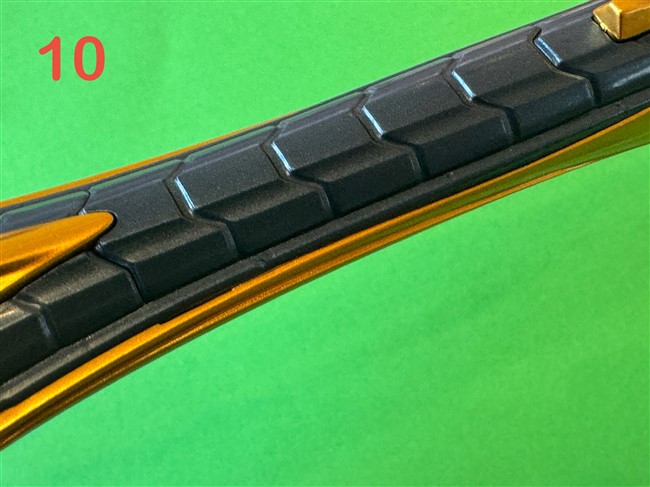

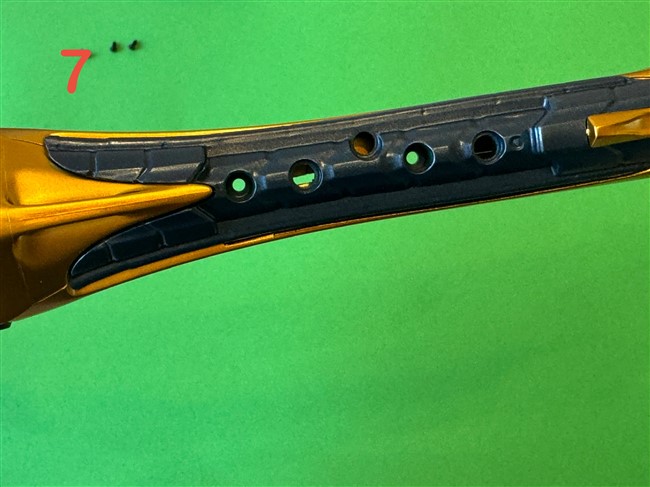

Fit the assembly on the upper side of the third segment, picture 7. Turn the assembly over and place the smaller blue detail on the opposite side, picture 8. With both parts in place, turn the assembly over again and place 2 x E screws as shown in picture 9. Place the blue cover plate over the screws, picture 10, then fit the gold side cover in place as shown in picture 11.
Finally, place the two blue circular side parts in place on the claw joint, picture 12.
Picture 13 shows the assembly complete for this issue.
