Issue 124

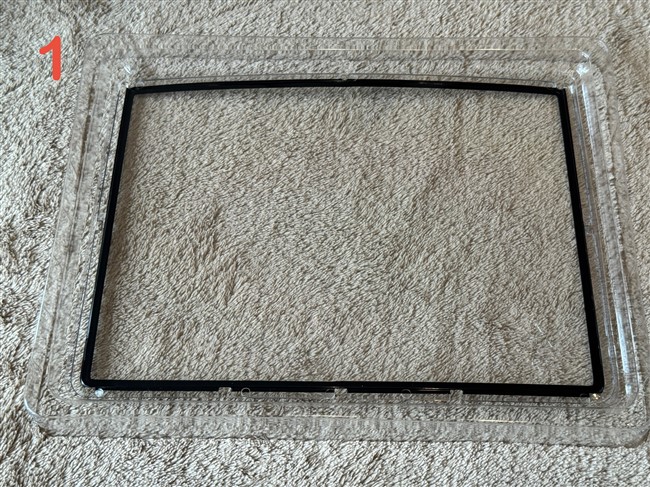

Picture 1 shows the contents of this issue.
Rear Window

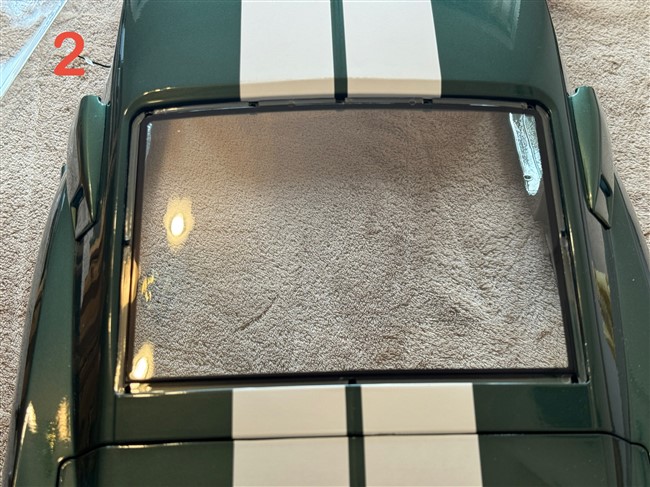

Place the rear window into the back of the body in preparation for the next stage, picture 2.
That completes the assembly for this issue.Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 125

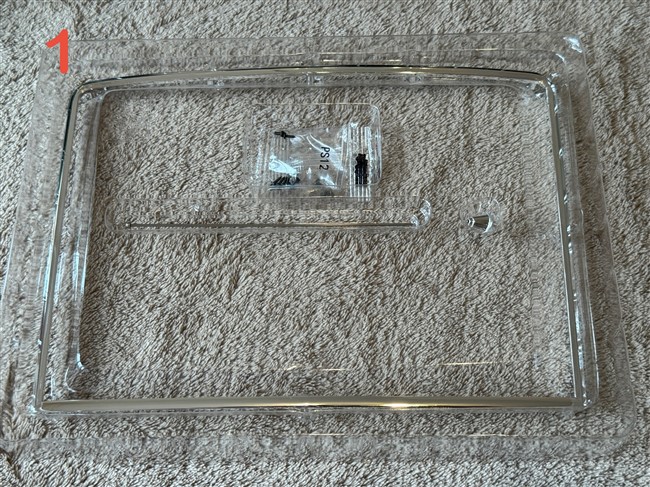

Picture 1 shows the contents of this issue.
Rear Window Frame

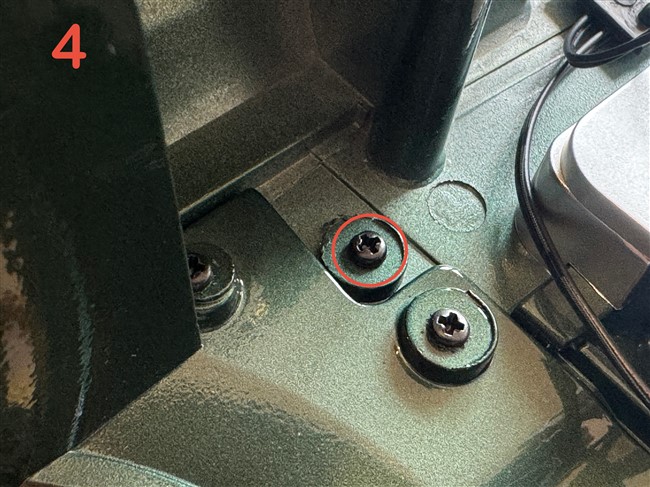

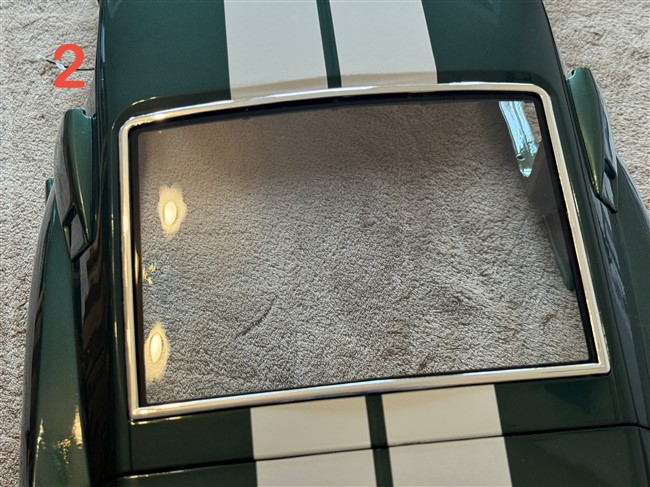

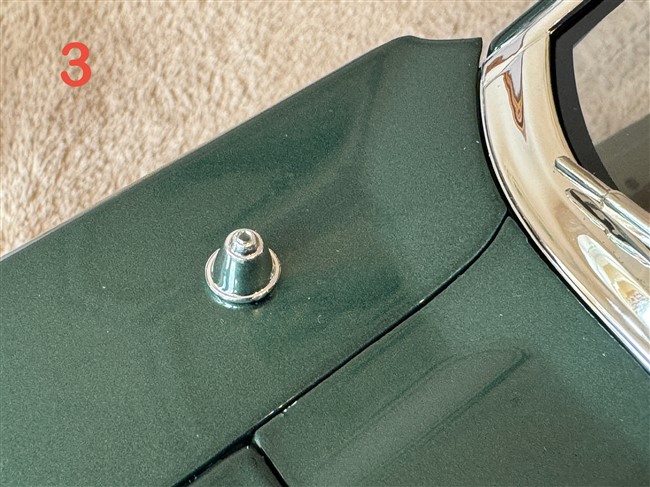

Place the rear window frame onto the window, picture 2. Place the antenna base into the slot on the right wing, picture 3, turning it over and securing it in place using a PS05 screw, picture 4.

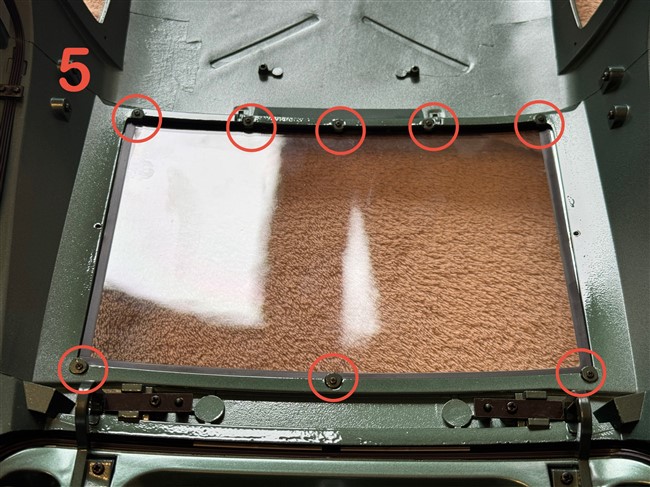

Whilst the assembly is in the upside down position, secure the window and frame by using 8 x PS12 screws, picture 5.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 126
Door Trims

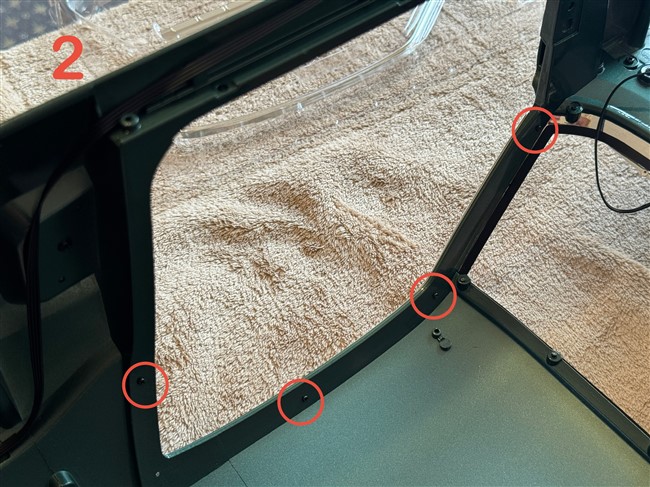

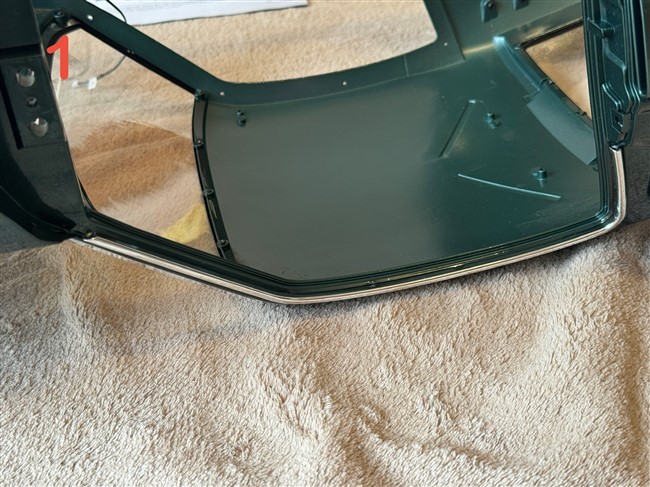

Place the right upper door trim on the outside of the door opening, pressing home the four pins, picture 1. Secure it in place using 4 x PS27 screws from the inside, picture 2. Do the same with the left door trim.

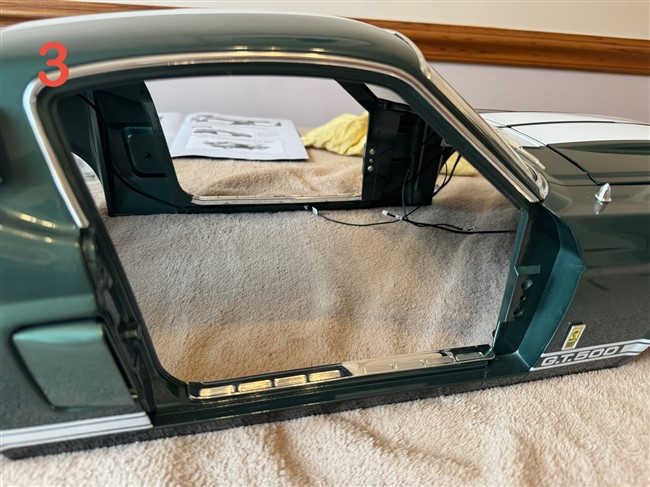

Place the right doorstep trim on the lower section of the door opening and press in place, picture 3. Do the same with the left door trim.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 127

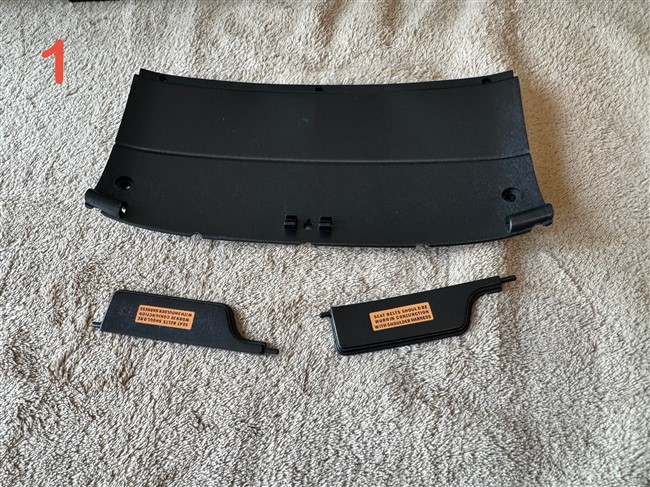

Picture 1 shows the contents of this issue.
Front roof interior and sun visors
Identify the right and left sun visors, they will have an “R” and “L” on the back of them. Insert the outer pin into the socket and press fit the other inner pin in place on the roof interior.
That completes the assembly for this issue.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,333 Points: 22,306 Location: Northamptonshire, England
|
Issue 128

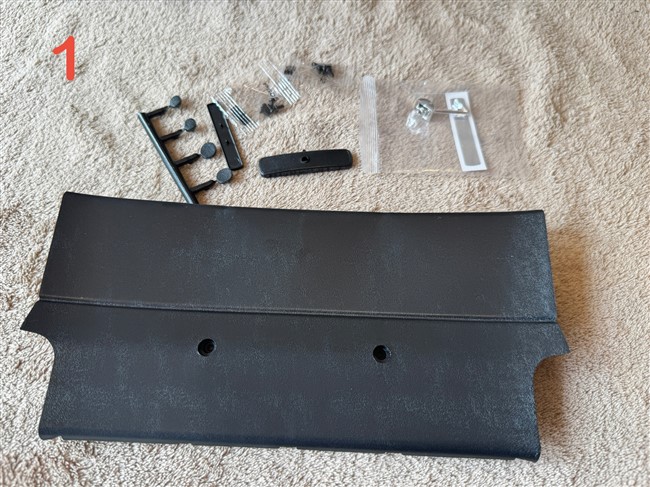

Picture 1 shows the contents of this issue.
Rear roof interior and rear view mirror

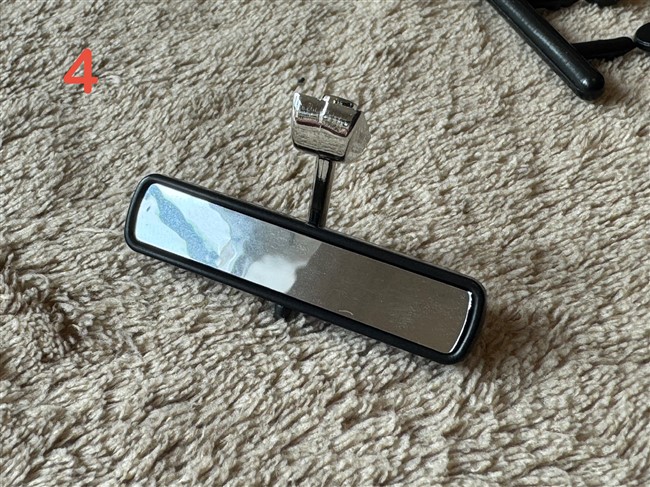

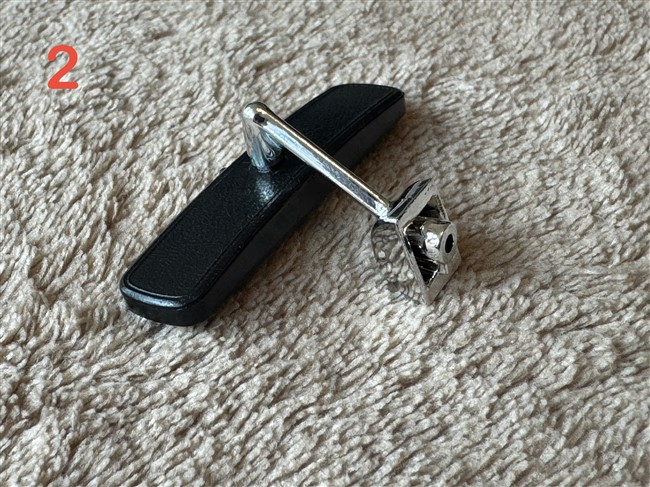

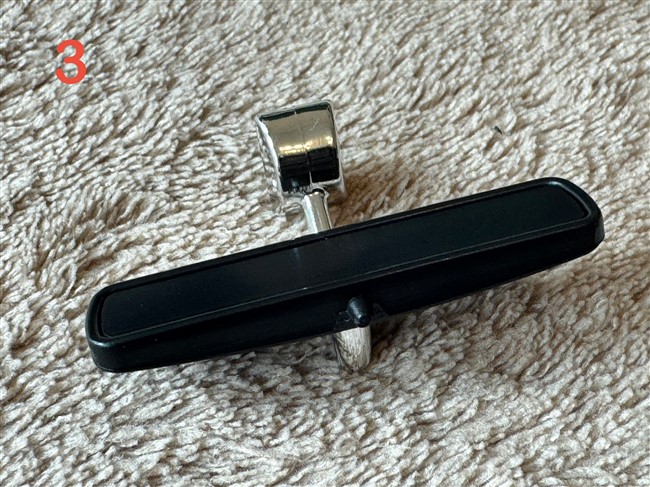

Attach the rear-view mirror mount to the mirror holder, picture 2. Place the adhesive mirror base inside the mirror holder, picture 3, then attach the mirror, picture 4.

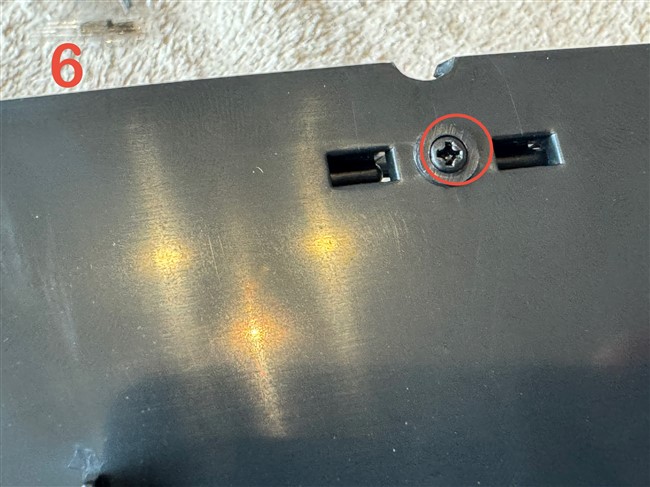

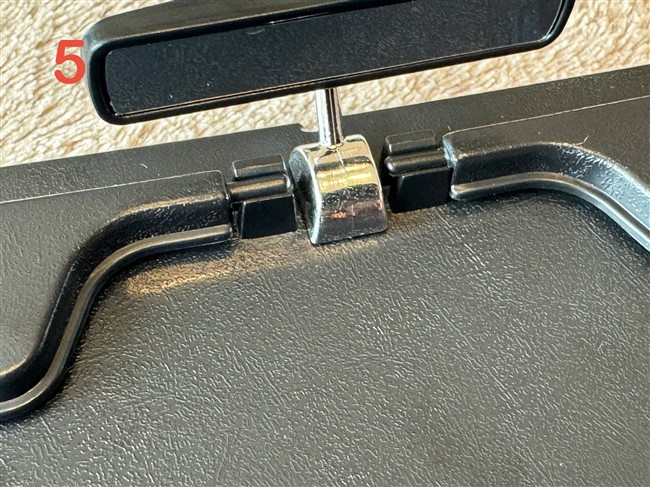

Place the mirror assembly into the notch on the front roof interior, picture 5, turning it over and securing it in place using a PS05 screw, picture 6.

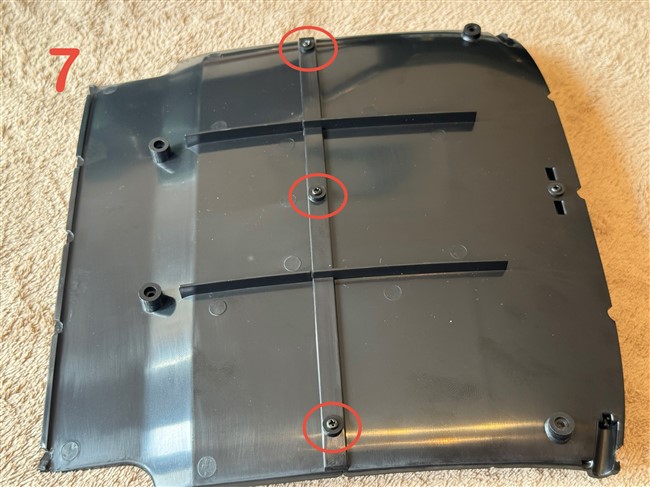

Attach both the front and rear roof lining together using 3 x PS05 screws as shown in picture 7.

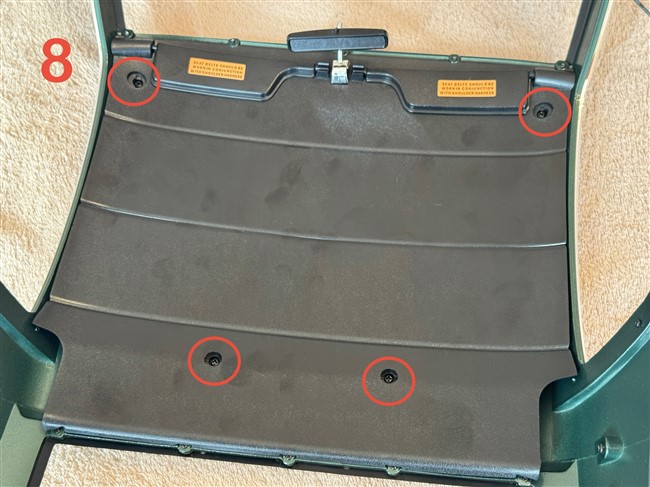

Now place the roof interior inside the body and secure it in place using 4 x DS02 screws, picture 8.

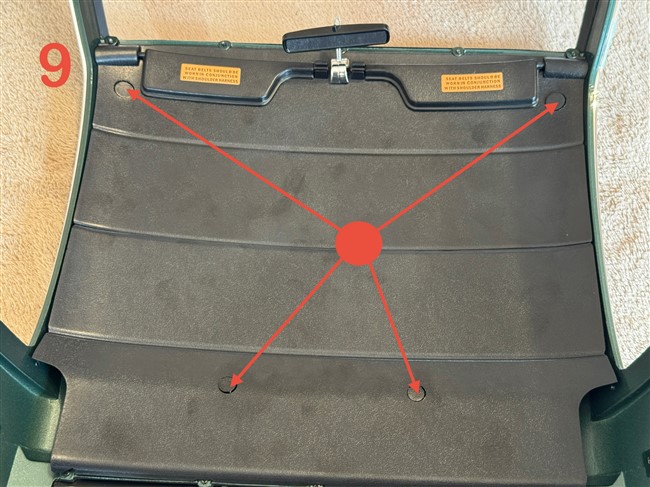

Finally, cover the screws using the caps provided, picture 9.
That completes the assembly for this issue.Markwarren attached the following image(s): Regards
