Issue 87
Left Foot
Picture 1 shows the contents of this issue
Remove the protective film on the rear heel piece and place it on the heel of the shoe. Do the same with the front piece, picture 2.
That completes the assembly for this stage.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,348 Points: 22,351 Location: Northamptonshire, England
|
Issue 88
Waist and Abdomen
Picture 1 shows the contents of this issue
Slot the friction disc into the seat support and secure in place using 4 x AA screws, picture 2.
Fit the assembly into the two seat blocks and secure in place using 4 x F screws one side and the same again the other side, pictures 3, 4 and 5.
That completes the assembly for this stage.
Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,348 Points: 22,351 Location: Northamptonshire, England
|
Issue 89
Waist and Abdomen
Picture 1 shows the contents of this issue
Slot the friction disc into the seat support and secure in place using 4 x AA screws, picture 2.
Fit the assembly into the lower waist block and secure in place using 2 x Y screws, picture 3.
Fit the mobile left arm of the support onto the assembly as shown in pictures 4 and 5.
That completes the assembly for this stage.Markwarren attached the following image(s): Regards
Markwarren
(Mark) Admin
|
|
|
Rank: Administration Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds Joined: 04/01/2016 Posts: 7,348 Points: 22,351 Location: Northamptonshire, England
|
Issue 90
Waist and Abdomen
Picture 1 shows the contents of this issue
Slot the friction disc into the seat support and secure in place using 4 x AA screws, picture 2.
Fit the assembly into the lower waist block and secure in place using 2 x Y screws, picture 3.
Fit the mobile left arm of the support onto the assembly as shown in picture 4.
Fit the assembly onto the assembly from issue 88 and secure in place using 4 x Q screws with four washers as shown in pictures 5 and 6.

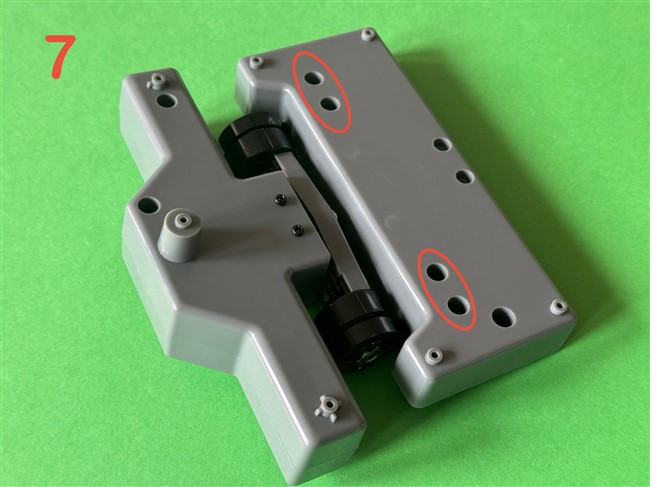

Next rotate the assembly 90 degrees and fit the lower waist block, securing it in place using 4 x F screws, picture 7.
That completes the assembly for this stage.
