STAGE 122:
Left reactor cowl vanes and fitting.
Pic 1: The 3 x vanes are numbered – 1, 2, 3.
Fit vane 1, 122A as shown and fix with 4 x NP screws.
Pic 2: Fit vane 2, 122B as shown and fix with 4 x NP screws.
Pic 3: Fit vane 3, 122C as shown and fix with 4 x NP screws.
Pic 4: Fit the pipe 122D where indicated.

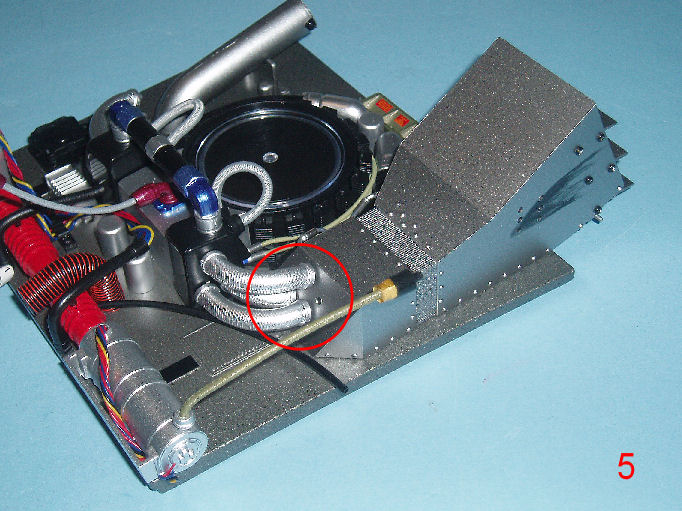

Pic 5: Fit the assembly to the reactor base making sure the 3 x pipes indicated locate in the holes at the rear correctly.
Pic 6: Fix from underneath with 3 x FP screws.
Pic 7: Feed the black tube through the rear of the cowl as shown.
Pic 8: Connect the hose at the front where indicated.
Pic 9: OPTIONAL – You could recolour the screw heads silver to blend them in better with the cowl.
This is at the builder’s discretion.
Store safely for now.roymattblack attached the following image(s):
|
|
|
|
