Issue 93
Waist and Abdomen
Picture 1 shows the contents of this issue
Slot the friction disc into the waist support and secure in place using 4 x AA screws, picture 2.
Next, fit the mobile support arm onto the friction disc, picture 3.
Fit the waist assembly from the last issue onto the waist block, picture 4, and keeping the piece in position, secure the entire assembly together using 5 x F screws, picture 5.

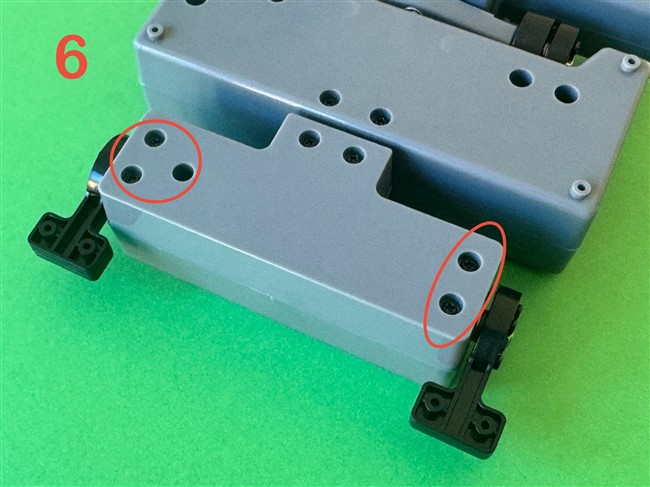

Turn the assembly over and secure in place another 5 x F screws, picture 6.
That completes the assembly for this stage.
