STAGE 127:
Plutonium case lid.
Pic 1: Fit the handle 127C in place on the case lid 127A as shown.
Pic 2: Fit the cover 127B and fix with 4 x MP screws.
Pic 3: Fix the 2 x catches 127D with 2 x MP screws in each.
Note the small lip on the lower edge of the catches must face out.
Store for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,805 Points: 17,567 Location: ipswich
|
STAGE 128:
Plutonium case.

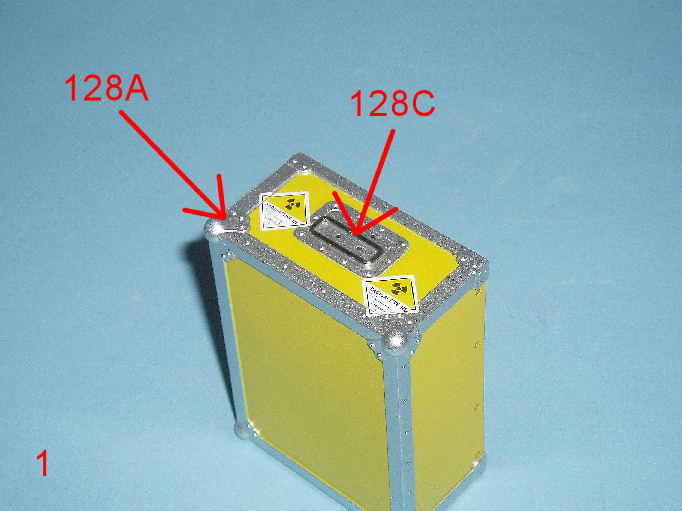

Pic 1: Fit the handle 128C in place on the end of the case 128A as shown.
Pic 2: Fit the cover 128B and fix with 4 x MP screws.
Pic 3: Repeat on the other end of the case.
Pic 4: Fix the 2 x latches 128D with 2 x MP screws in each.
Store safely for now.
