STAGE 127:
Plutonium case lid.
Pic 1: Fit the handle 127C in place on the case lid 127A as shown.
Pic 2: Fit the cover 127B and fix with 4 x MP screws.
Pic 3: Fix the 2 x catches 127D with 2 x MP screws in each.
Note the small lip on the lower edge of the catches must face out.
Store for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,813 Points: 17,591 Location: ipswich
|
STAGE 128:
Plutonium case.
Pic 1: Fit the handle 128C in place on the end of the case 128A as shown.
Pic 2: Fit the cover 128B and fix with 4 x MP screws.
Pic 3: Repeat on the other end of the case.
Pic 4: Fix the 2 x latches 128D with 2 x MP screws in each.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,813 Points: 17,591 Location: ipswich
|
STAGE 129:
Plutonium case.
Pic 1: Locate the interior pad 129D.

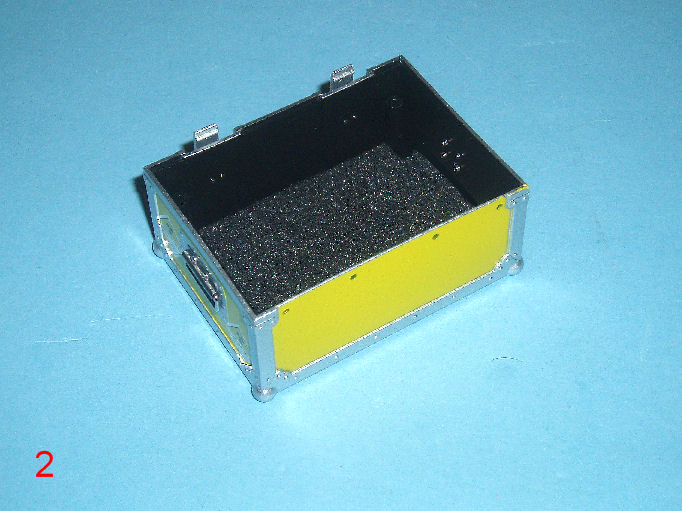

Pic 2: Peel the backing paper off the pad and stick it down inside the case bottom.
Pic 3: Fix the 2 x straps 129E to the inner panel 129A with 2 x IP screws.

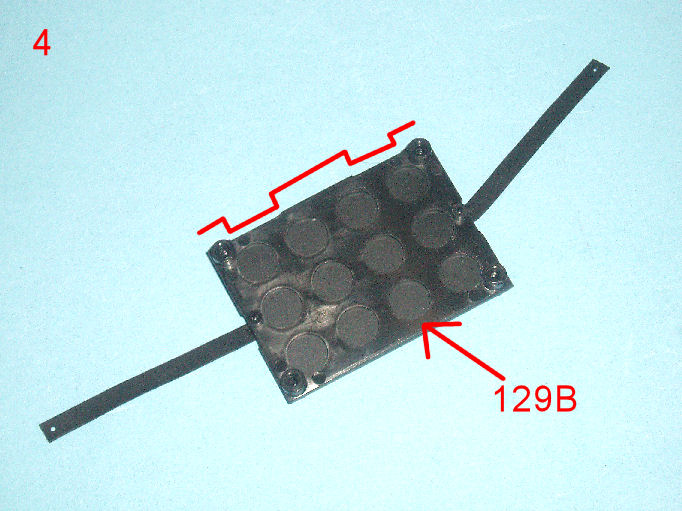

Pic 4: Turn the assembly over and position the panel 129B as shown with the ridges edges on both panels on the same side.
Pic 5: Fold the straps over and fix each end to the upper panel with 1 x IP screw.
Pic 6: With the screw/strap fixings underneath, fix the flat panel inside the case lid with 4 x AP screws.
Pic 7: Again with the screw/strap fixings underneath, fix the other panel inside the case body as shown with 4 x AP screws.
Pic 8: Close the case and fix the hinge 129C in place as shown with 8 x PP screws.
Store safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,813 Points: 17,591 Location: ipswich
|
STAGE 130:
Plutonium case.
Pic 1: Fit the upper canister 130B onto the lower parts13A as shown.
The parts are notched and will only fit one way.
Assemble 12 canisters the same.
Pic 2: Wrap 1 x label 130D around the upper end of the 12 x plutonium rods 130C as shown.
Pic 3: Fit the canisters and fuel rods into the case.
Pic 4: Store everything safely.
