STAGE 33:
Remote control 2.
Pic 1: Retrieve the assembly from stage 32.
The circuit board 33B will fit inside with the silver contacts facing the rubber buttons.
Pic 2: Circuit board installed.
Pic 3: Clip the back cover 33A in place and then fit the battery holder 33C.
The remote control will need 1 x CR2032 battery – not supplied.
Pic 4: Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,813 Points: 17,591 Location: ipswich
|
STAGE 34:
Circuit board.
Pic 1: Fit the plug on wire 34B into the ‘B’ socket on the circuit board 34A.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,813 Points: 17,591 Location: ipswich
|
STAGE 35:
Electrical components.
Pic 1: Retrieve the circuit board from the previous stage and connect the battery box plug A to the matching socket on the board.
Pic 2: Connect the speaker plug D to the matching socket on the board.
Pic 3: Connect wire C and the extension wire together
.
Pic 4: Connect the extension wire plug C to the matching socket on the board.
You can now add batteries to the battery box and the remote control to test that all the functions work.
Store everything safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,813 Points: 17,591 Location: ipswich
|
STAGE 36:
Intake box.
Pic 1: The intake box 36A will attach to the top of the engine using small magnets to keep it in place, so that is removable.
Pic 2: Airbox installed.
Store the engine safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,813 Points: 17,591 Location: ipswich
|

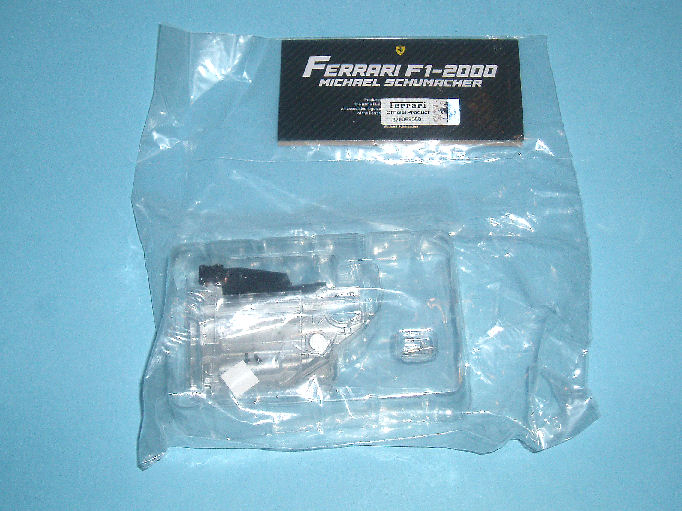

STAGE 37:
Gearbox 1.
Pic 1: Fix the bracket 37B to the side of the gearbox 37A where shown using 1 x QM screw.
It will only fit one way.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
|
