STAGE 127:
Plutonium case lid.
Pic 1: Fit the handle 127C in place on the case lid 127A as shown.
Pic 2: Fit the cover 127B and fix with 4 x MP screws.
Pic 3: Fix the 2 x catches 127D with 2 x MP screws in each.
Note the small lip on the lower edge of the catches must face out.
Store for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,814 Points: 17,594 Location: ipswich
|
STAGE 128:
Plutonium case.
Pic 1: Fit the handle 128C in place on the end of the case 128A as shown.
Pic 2: Fit the cover 128B and fix with 4 x MP screws.
Pic 3: Repeat on the other end of the case.
Pic 4: Fix the 2 x latches 128D with 2 x MP screws in each.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,814 Points: 17,594 Location: ipswich
|
STAGE 129:
Plutonium case.
Pic 1: Locate the interior pad 129D.
Pic 2: Peel the backing paper off the pad and stick it down inside the case bottom.
Pic 3: Fix the 2 x straps 129E to the inner panel 129A with 2 x IP screws.
Pic 4: Turn the assembly over and position the panel 129B as shown with the ridges edges on both panels on the same side.
Pic 5: Fold the straps over and fix each end to the upper panel with 1 x IP screw.
Pic 6: With the screw/strap fixings underneath, fix the flat panel inside the case lid with 4 x AP screws.
Pic 7: Again with the screw/strap fixings underneath, fix the other panel inside the case body as shown with 4 x AP screws.
Pic 8: Close the case and fix the hinge 129C in place as shown with 8 x PP screws.
Store safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,814 Points: 17,594 Location: ipswich
|
STAGE 130:
Plutonium case.
Pic 1: Fit the upper canister 130B onto the lower parts13A as shown.
The parts are notched and will only fit one way.
Assemble 12 canisters the same.
Pic 2: Wrap 1 x label 130D around the upper end of the 12 x plutonium rods 130C as shown.
Pic 3: Fit the canisters and fuel rods into the case.
Pic 4: Store everything safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,814 Points: 17,594 Location: ipswich
|
STAGE 131:

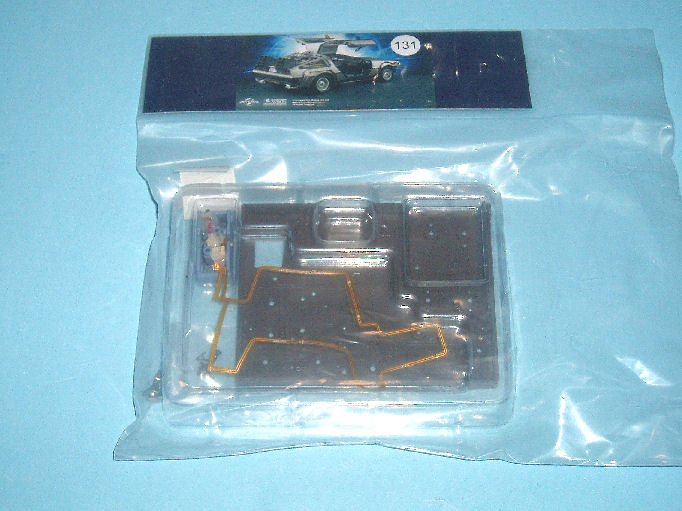

Emergency time circuit.
Pic 1: Press-fit the support 131C into the time circuit box 131A as shown.
Pic 2: Fit the LED strip and battery box into the casing, fixing the battery box from underneath with 2 x AP screws.
Fit the LED strip into the locating track and fix with strip of tape 131D.
Take care not to put tape over any of the small LED’s.
Pic 3: Optional detail – you can add decals to improve the look of the wooden box.
The decals can be found online.
This is at the builder’s discretion.
Store safely for now.roymattblack attached the following image(s):
|
|
|
|
