STAGE 132:
Railway parts
Pic 1: Fit parts 132A and 132B together as shown.
Pic 2: Fix with 2 x EP screws from underneath.
Pic 3: Repeat at the other end of the sleeper 132A.
Pic 4: Save everything for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,820 Points: 17,612 Location: ipswich
|
STAGE 133:
Rail and chairs.
Pic 1: Place the rail 133A on the previously assemble sleeper with the ends level.
Fix the chairs 133B on each side of the rail as shown using 2 x EP screws in each.
Pic 2: Store everything safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,820 Points: 17,612 Location: ipswich
|
STAGE 134A:
Time circuit box.

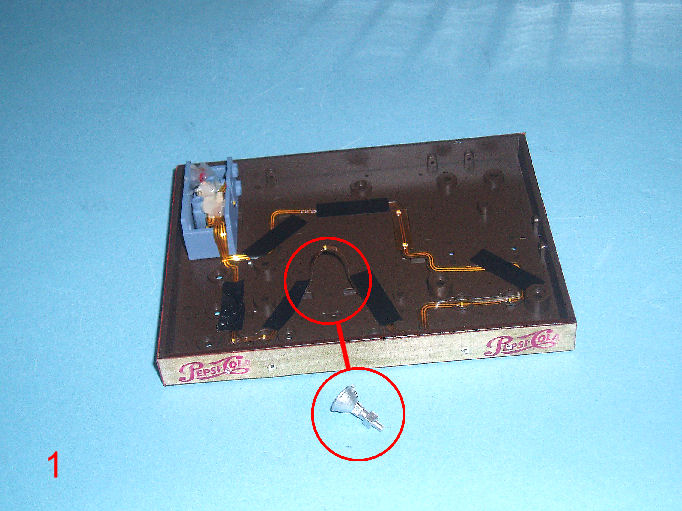

Pic 1: Retrieve the box from the previous stage and remove the component indicated.
Pic 2: Fit the base plate 134M and replace the component.
Pic 3: Fix with 3 x IP screws.
Pic 4: Press-fit 134J and 134K where shown.
Pic 5: Assemble parts 134B, 134C and 2 x 134D as shown.
Pic 6: Wrap the mesh 134A around the assembly and fix with 4 x QP screws.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,820 Points: 17,612 Location: ipswich
|
STAGE 134B:
Pic 7: Fit the assembly to the box and fix with 2 x NP screws from underneath.
Pic 8: Fit the battery cover 134L.
Pic 9: Fit the coil 134F inside the housing 134E and fix the assembly to the box with 2 x AP screws from underneath.
Pic 10: Fit the component 134L where shown.
Pic 11: Fix the mesh cover 134H over the top of the clear fitting using 2 x QP screws.

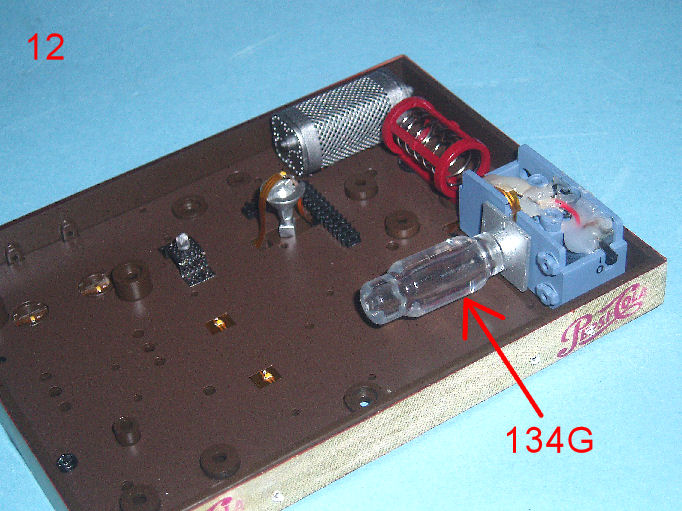

Pic 12: Press-fit the tube 134G in place where indicated.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,820 Points: 17,612 Location: ipswich
|
STAGE 135:
More railway.

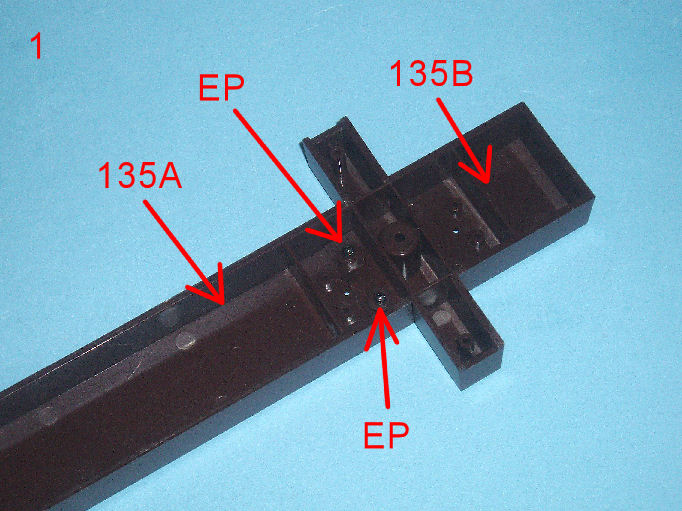

Pic 1: Fix the sleeper parts 135A and 135B together with 2 x EP screws.
Repeat on the other end of 135A.
Pic 2: Fix the connectors 132C and 135C to the assembly as shown with 1 x EP screw in each.
Repeat on the other end.
Pic 3: Retrieve the assembly from stage 132 and fix to the new assembly as shown with 1 x EP screw at each end.
Pic 4: Fix the chairs saved from stage 133 in place as shown using 2 x EP screws in each.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
|
