STAGE 137A:
Emergency time circuits.

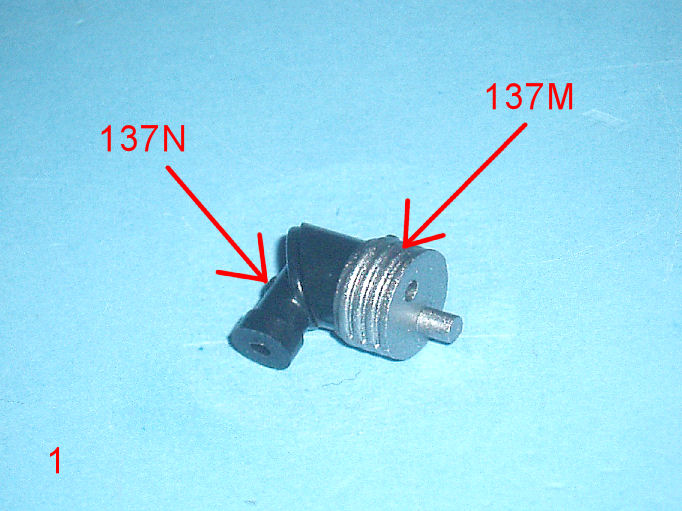

Pic 1: Press-fit parts 137N and 137M together.

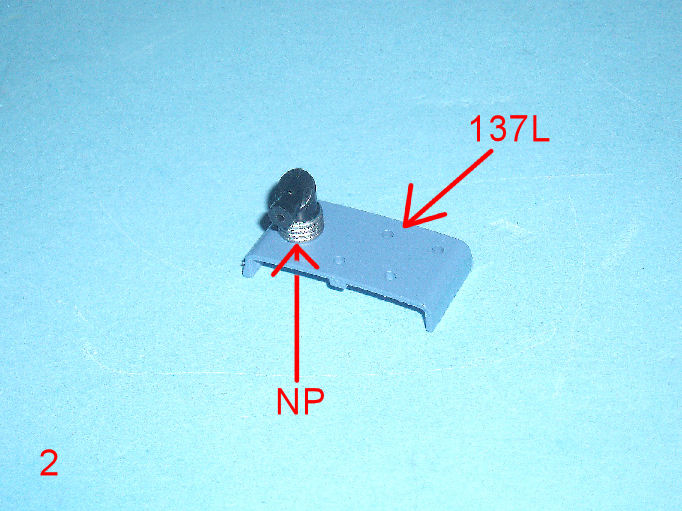

Pic 2: Fit the assembly to part 137L and fix from underneath with 1 x NP screw.
Pic 3: Fit the assembly over the battery box as shown.
Pic 4: Fit part F61 through 137G and then fit F45 over the top on the other side as shown.
NOTE – All the clear part sprues are numbered.
Pic 5: Assemble all four tubes.
Pic 6: Fix the assembly into the box where shown with 2 x QP screws.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,825 Points: 17,627 Location: ipswich
|
STAGE 137B:
Pic 7: Fit part F63 through 137C and then add F51 over the top on the other side.
Pic 8: Assemble all 7 x tubes the same way.
Pic 9: Fit part F62 through the large hole and then add F49 over the top on the other side.

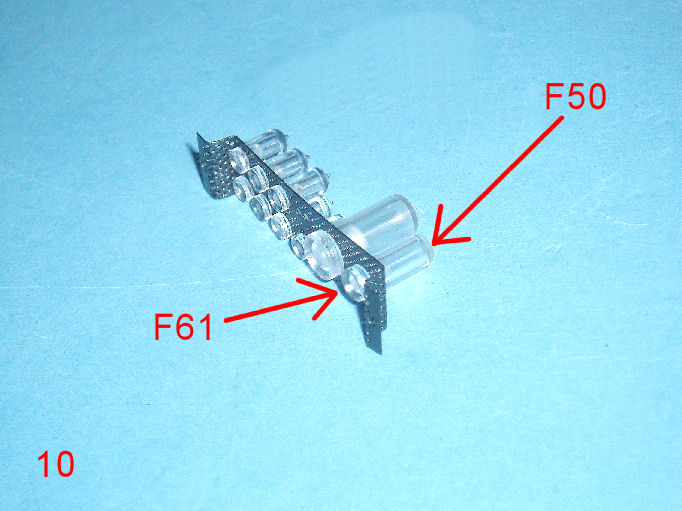

Pic 10: Fit part F61 through the smaller hole and then add F50 over the top on the other side.
Pic 11: Fix the assembly into the box as shown using 2 x QP screws.

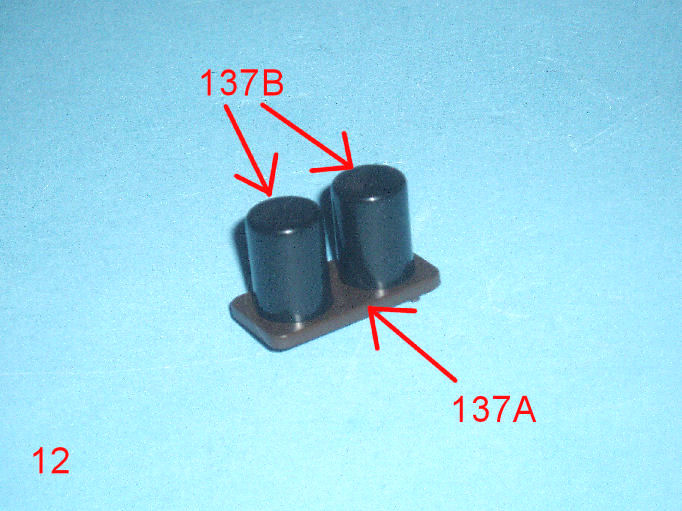

Pic 12: Press-fit parts 2 x 137B and 137A together as shown.
Pic 13: Fit the assembly into the box where indicated.

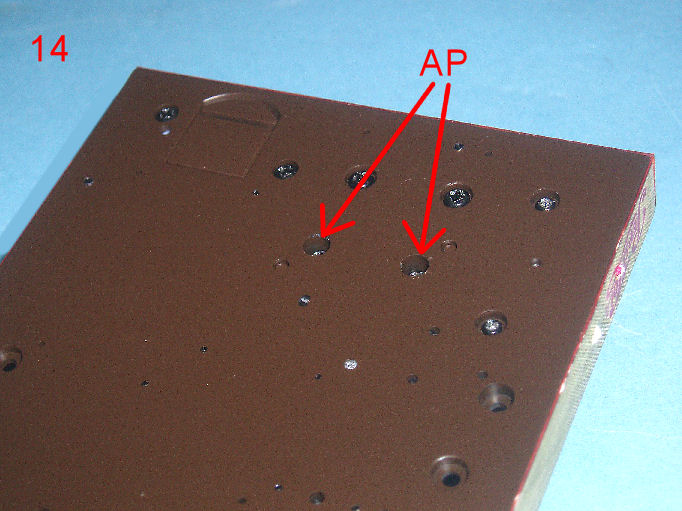

Pic 14: Fix from underneath with 2 x AP screws.
Store safely for now.
