Mizzen topgallant Options
GilShapley
#1 Posted : 19 February 2012 14:00:45

Rank: Vice-Master
Active Service Medal: 500 post active service MedalBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 10/10/2010
Posts: 689
Points: 2,130
Location: Dorset
As we get nearer to the top of each mast they do get thinner and therefore more fragile. Some of the parts we have to attach are also small which do not go well with my sausage fingers. Particularly the shaped octagon which requires us to carve out some of the already thin mast.

My solution to this rather frustrating job was to :-

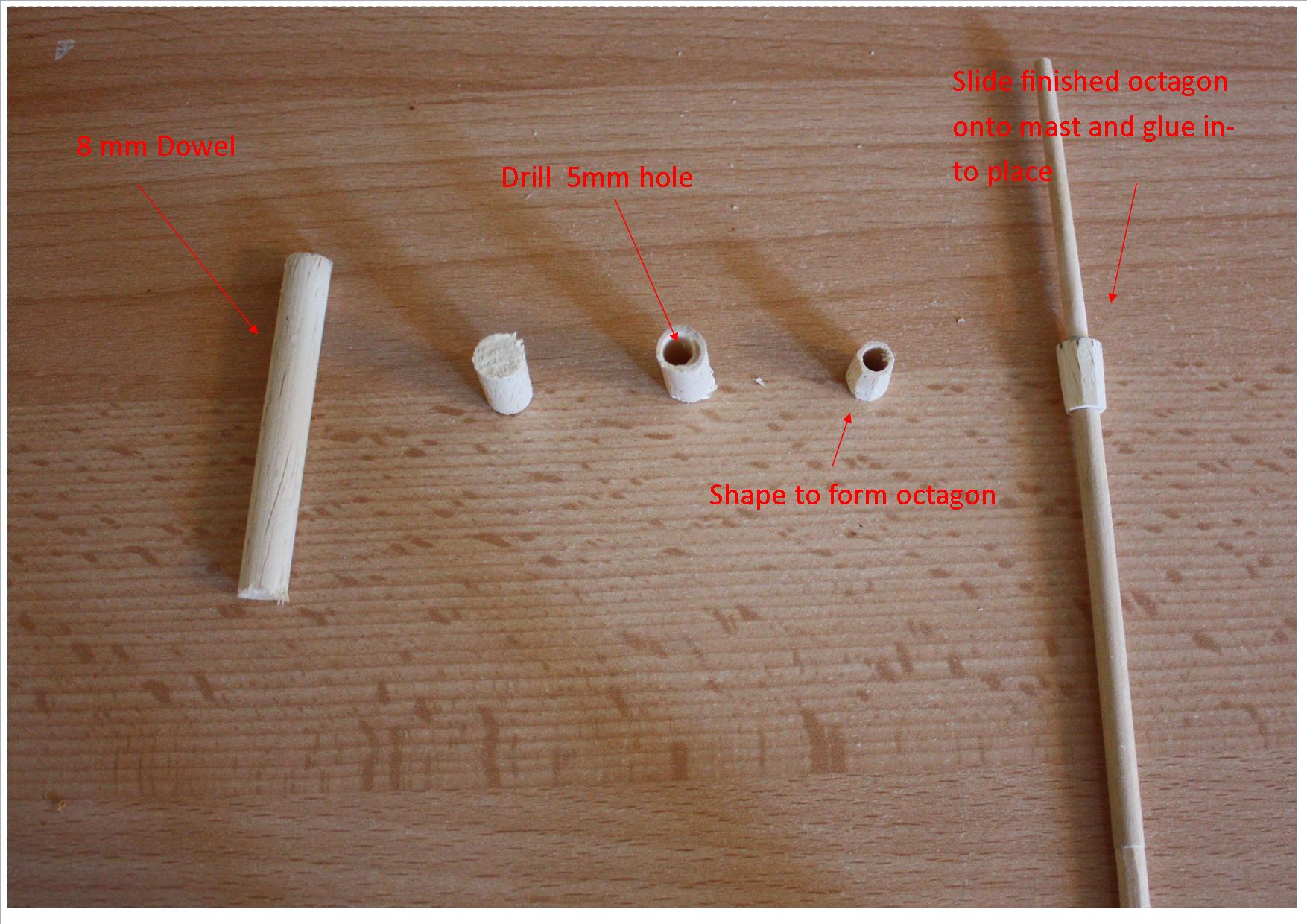

Cut a length of 8mm Dowel. (Had some spare as one of my past parts was broken on arrival and could not wait for a replacement)

Drill out a 5mm hole through the center of the dowel. Dont worry too much if it is off center as you can adjust when when you shape it.

Shape the octagon and slide it onto the mast

Glue in place ensuring it is in line with the base of the mast

Piccy attached
File Attachment(s):
Current Build:-
[color=blue]Stash Avro Lancaster (Full Kit)plus some extra issues I picked up at a good price
[color=blue]Built:- Norman Catapult by Mantua,Roman Catapult by Mantua,HMS Victory,HMS Victory XSection,Focker DB1,Bismark,English Carronade Titanic Lifeboat,American Civil War Gatling,Hummer,Sopwith Camel F1,Occre Jupiter ,OcCre Wagon, Latina Arab Dhow, Eaglemass Orrery OcCre Rogers 119 [color=red][color=red]RB7,OcCre Missippi River Boat, Model Airways Fokker DR1
OcCre London L>C>C 106 Ugears Scrambler, Ugears Hexapod Explorer UGears Off-Road Vehicle
karl1113
#2 Posted : 19 February 2012 14:28:29

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 04/04/2010
Posts: 3,955
Points: 11,809
Location: uk
ingenious idea well done,wish I had thought of that.
Current builds: SotS, USS Consitution, San Felipe, D51 loco, HMS Surprise, RB7, Arab Dhow, Jotika HMS Victory
Completed builds: HMS Pickel, Thermopylae, Mississipi river boat, Mary Rose, Cutty Sark, San Francisco II, HMS Victory x5, Titanic Lifeboat, Panart HMS Victory Launch, Hachette Titanic, Virginia Schooner, Endeavour Longboat.

http://www.model-space.com/gb/
saintsman123
#3 Posted : 19 February 2012 14:35:00

Rank: Vice-Master

Active Service Medal: 500 post active service MedalTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of Honour
Groups: Registered

Joined: 30/01/2011
Posts: 865
Points: 2,410
Location: Cambs
There is another way which is well used in other models, and that is to cut two lengths of dowel, and a square piece of wood, you then carve the square into an octagon shape, drill 1mm holes either end of the octagon, then taper your dowels, and drill a 1mm hole in the end that needs to fit the octagon (you drill all the holes around 10mm deep) once everything is drilled and shaped you fit a 20mm length of 1mm brass wire into the octagon holes gluing with superglue,then fit your two dowels on to either end of the octagon, again gluing with superglue.

I hope all this makes sense
Come on you Jimmies
