 Rank: Pro  Groups: Registered
Joined: 31/03/2010 Posts: 194 Points: 446 Location: Gloucestershire
|
i think Mike could answer this could you give me the dimensions of the binnacle please, i will have a go at making one myself. Thank's Mike, Glen  Roger the Cabin Boy
|
|
|
 Rank: Super-Elite      Groups: Registered
Joined: 24/04/2010 Posts: 5,787 Points: 17,662 Location: Stafford, United Kingdom
|
Glen wrote:i think Mike could answer this could you give me the dimensions of the binnacle please, i will have a go at making one myself. Thank's Mike, Glen Hi Glen the dimensions are 17mm x 11mm then the top is 17mm x 5mm. The brass etch is on the outside covering a wooden former please see Jases build I have included a photo to help you Kind regards Mike MWG attached the following image(s): MWG BUILD DIARIES: HMS VICTORY, SOVEREIGN OF THE SEAS, SAN FRANCISCO II, HMS HOOD, HMS ENDEAVOUR LONGBOAT, HMS VICTORY X-SECTION, 007 DB5, NISSAN GTR, CUTTY SARK, RB7, AKAGI, BARK HMS ENDEAVOUR, HUMMER H1, MITSUBISHI ZERO.
|
|
|
Rank: Pro Groups: Registered
Joined: 31/03/2010 Posts: 194 Points: 446 Location: Gloucestershire
|
Thank's for that Mike,(i think i will contact NASA so i can borrow the Hubble Telescope to see it).  Roger the Cabin Boy
|
|
|
Rank: Super-Elite Groups: Registered
Joined: 24/04/2010 Posts: 5,787 Points: 17,662 Location: Stafford, United Kingdom
|

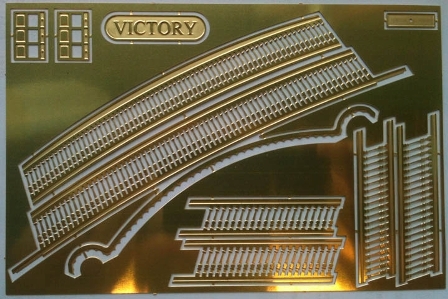

Glen wrote: Thank's for that Mike,(i think i will contact NASA so i can borrow the Hubble Telescope to see it). Hi Glen I am just trying to help you With the dimensions I gave you and jases build you should have been good to go, but i have taken some more photos (I do not have a photo of the wooden infill, thats why you have a photo of the Gallery parts --its at the top on the right) but please go to see the construction on Jases build.  Kind regards Mike MWG attached the following image(s): MWG BUILD DIARIES: HMS VICTORY, SOVEREIGN OF THE SEAS, SAN FRANCISCO II, HMS HOOD, HMS ENDEAVOUR LONGBOAT, HMS VICTORY X-SECTION, 007 DB5, NISSAN GTR, CUTTY SARK, RB7, AKAGI, BARK HMS ENDEAVOUR, HUMMER H1, MITSUBISHI ZERO.
|
|
|
Rank: Pro Groups: Registered
Joined: 31/03/2010 Posts: 194 Points: 446 Location: Gloucestershire
|
Thank's Mike i will have a look. Glen Roger the Cabin Boy
|
|
|
|
