 Thanks Mike your comments as always are appreciated  Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|
Thanks Yaturo for your kind words as for the blocks i have noted this from your diary and will fix as appropriate regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|

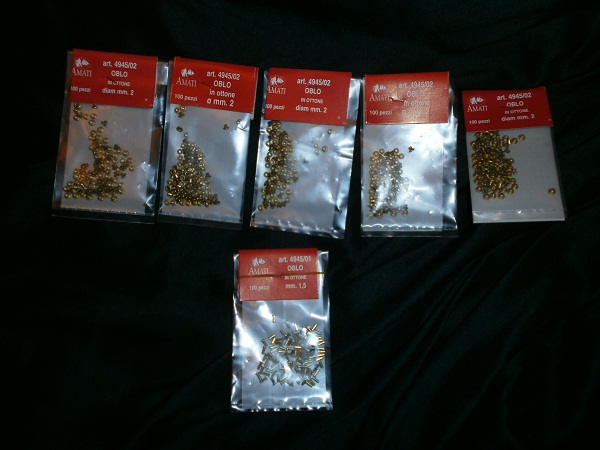

Hi All recieved the portholes so i can crack on with them now,the packs in the pic should be more than enough to do the requirements for the plans provided in the kit but as i have the myuki-kai plans aswell i shall probably be adding more regards Andy arpurchase attached the following image(s): Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
 Rank: Vice-Master       Groups: Registered
Joined: 21/04/2012 Posts: 747 Points: 2,233 Location: Tokyo, Japan
|
Hi Andy! What a lot of portholes there are! Building the Akagi is my hobby, but I call next three process "practice mortification" of Zen(禅).  1. Planking the flight deck 2. Attaching Jackstays on the hull 3. Making portholes Have a good practice for your success. Best Regards, Yutaro DeAGOSTINI 1/250 the YAMATO, 1/250 the AKAGI.
Hasegawa Co. 1/350 Battle ship NGATO, 1/350 Aircraft carrier Akagi, Battle ship MIKASA.
Water line series 1/700 Battle ship YAMATO, HIEI, YAMASHIRO, Aircraft carrier HIRYU,TAIHO, Heavy Cruiser Myoukou, Ashigara, Nachi, Haguro & others.
|
|
|
|
|
Hi Yaturo Most of the portholes are in the correct positions apart from a few,i will be ajusting as i place them regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|

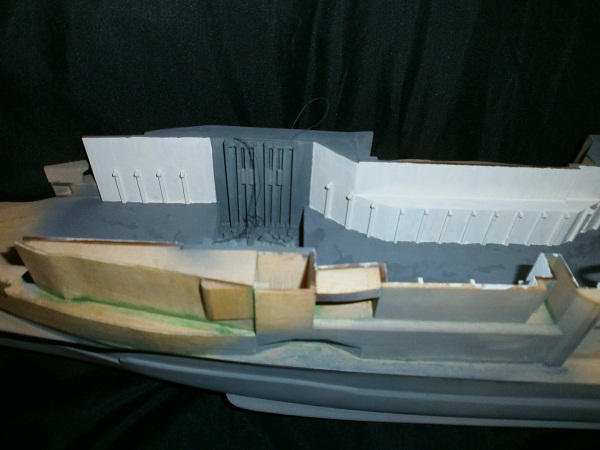

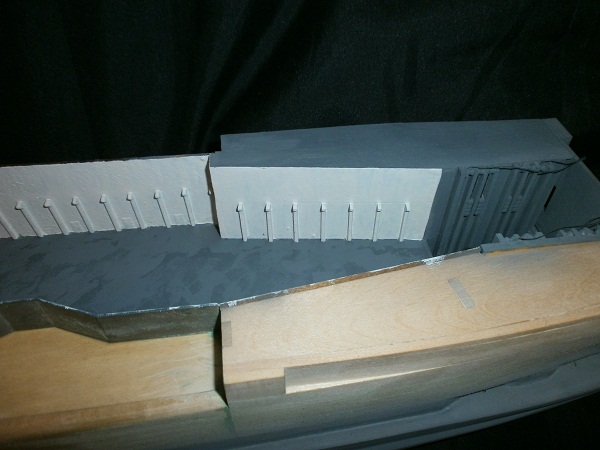

Hi All decided to start the painting of the hangar insides still a little touching up to do here and there as painting was never my strongpoint.As always all comments questions are welcome regards Andy arpurchase attached the following image(s): Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|

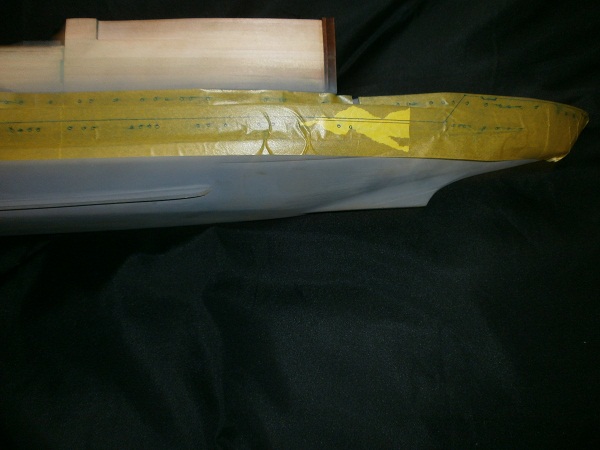

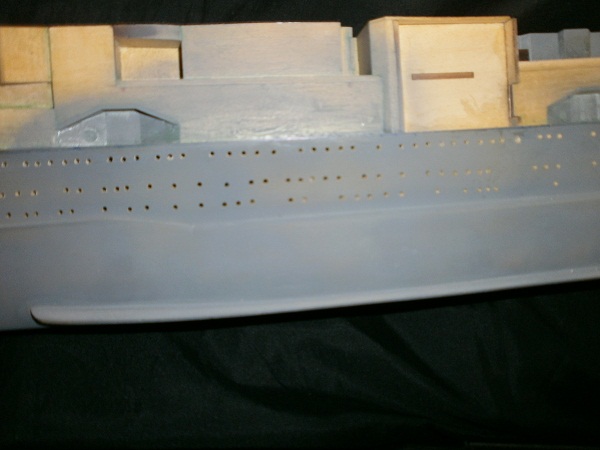

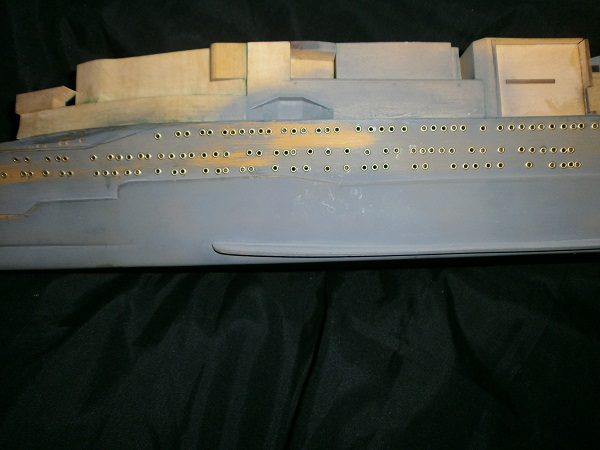

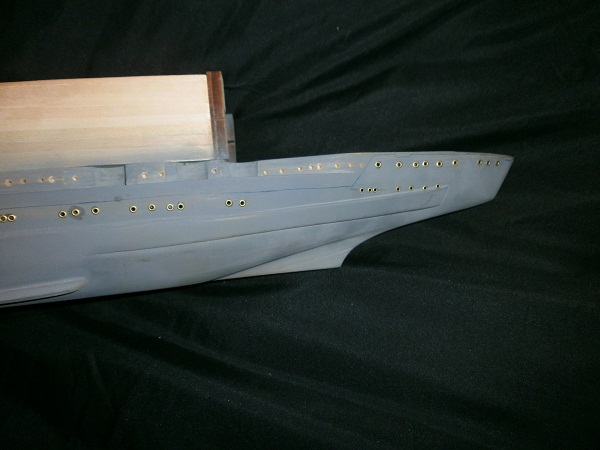

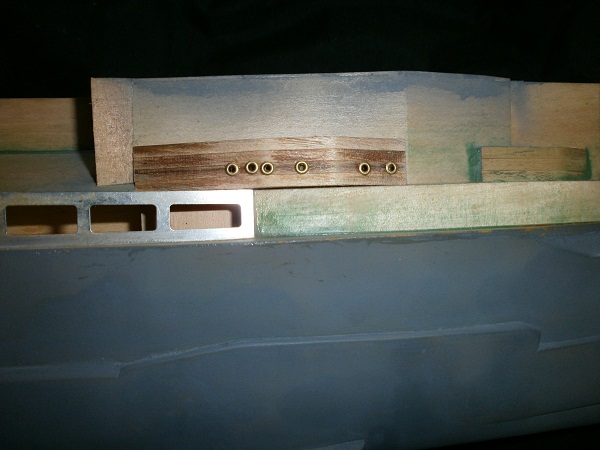

Hi All Bit more done on her hull,started to add the lower hull portholes the upper portholes will be added later as i suspect theres more work on the upper superstructure to be done. I started off marking the positions from the plan on masking tape,here im using 40mm wide tape as it covers all the portholes in one strip,the blue line is where the degausing trunking will run il be using plastic strip here like on the Yamato.After all the portholes were marked the tape was transfered to the hull and then a 2mm drill was used to drill them out ,a 1.5 mm drill was used for the smaller port holes. I have included pictures of the hull with just the drill holes showing as this is how the instructions say to leave them and after that the pics show with the aftermarket portholes attached.I still have the other side to do as yet and as uyssual all questions/comments are welcome regards Andy arpurchase attached the following image(s): Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
Rank: Vice-Master   Groups: Registered
Joined: 13/02/2012 Posts: 651 Points: 1,903 Location: croydon
|
Hi Andy. Just wanted to say wow great build  . Best regards. Mark
|
|
|
|
|
Hi Mark Thank you for your kind words ,much appreciated regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
 Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
I bet that was hard going on the eyes Andy, and certainly an improvement over not adding them
|
|
|
|
|
Thanks Mr T not so bad on the eyes just time consuming, marking out, transfering to ship then the endless portholes  regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
Rank: Pro Groups: Registered
Joined: 06/08/2011 Posts: 480 Points: 1,421 Location: Galway
|
Hi Andy, You set a high standard for everyone else to follow
|
|
|
 Rank: Elite  Groups: Registered
Joined: 13/02/2011 Posts: 2,239 Points: 6,837 Location: East Sussex
|
Hi Andy, Your work is always impressive,keep sending. Regards Trev. Work in progress: Tombstone (Scratch) - San Francisco 2. -The Mayflower ( scratch by plan).
OcCre- Santa-Maria (Kit).
|
|
|
|
|
Hi Ger c and Trev Thank you both for looking in on my build,Ger not trying to set a high standard just trying to show what can be achieved with a little thought and perseverance and we are all capable of achieving better than what we imagine.Trev your support is always apreciated regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
 Rank: Super-Elite  Groups: Registered
Joined: 24/04/2010 Posts: 5,787 Points: 17,662 Location: Stafford, United Kingdom
|
Hi Andy Top Job, your work on a difficult build is smashing Regards Mike MWG BUILD DIARIES: HMS VICTORY, SOVEREIGN OF THE SEAS, SAN FRANCISCO II, HMS HOOD, HMS ENDEAVOUR LONGBOAT, HMS VICTORY X-SECTION, 007 DB5, NISSAN GTR, CUTTY SARK, RB7, AKAGI, BARK HMS ENDEAVOUR, HUMMER H1, MITSUBISHI ZERO.
|
|
|
Rank: Vice-Master Groups: Registered
Joined: 21/04/2012 Posts: 747 Points: 2,233 Location: Tokyo, Japan
|
Hi Andy! You've done not only practically hard jobs but also mentally hard ones!  I think such hard jobs make your ship more and more great one. I expect your next sending. Best Regards, Yutaro DeAGOSTINI 1/250 the YAMATO, 1/250 the AKAGI.
Hasegawa Co. 1/350 Battle ship NGATO, 1/350 Aircraft carrier Akagi, Battle ship MIKASA.
Water line series 1/700 Battle ship YAMATO, HIEI, YAMASHIRO, Aircraft carrier HIRYU,TAIHO, Heavy Cruiser Myoukou, Ashigara, Nachi, Haguro & others.
|
|
|
|
|
Thank you both Mike and Yaturo your comments are always apreciated regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
 Rank: Master Groups: Registered
Joined: 15/04/2010 Posts: 1,266 Points: 3,841 Location: The Quantock Hills,Somerset
|
Wow..what a difference that has made to the overall look of the model.How many portholes were there in total as I may do this myself when I get round to starting my build. Rob Nolli Illigitimi Carborundum!!!Current Builds: HMS Victory, SV Thermopylae
|
|
|
|
|
Hi Dontshootme If you take a look at page 12 post 130 the porthole count and info you need is listed there m8 regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
Rank: Master Groups: Registered
Joined: 15/04/2010 Posts: 1,266 Points: 3,841 Location: The Quantock Hills,Somerset
|
Thanks for that Andy,must have missed that post  ,sometimes I don't get the red "new post" symbol ...can be very annoying.  Rob Nolli Illigitimi Carborundum!!!Current Builds: HMS Victory, SV Thermopylae
|
|
|
|
