Looking very impressive Carl and getting better with every step you make, very well done....Drool Drool

Regards

Alan
Kev the Modeller
#22 Posted : 19 July 2019 11:08:50

Rank: Master

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of Honour
Groups: Registered

Joined: 25/11/2018
Posts: 1,284
Points: 3,878
Location: Southeast UK
Excellent work Carl, I admire people like yourself who have the knowledge to just design and build something from nothing other than a few sketches - well done! Cool ThumpUp

Kev Smile
Per Ardua Ad Astra
darbyvet
#23 Posted : 22 July 2019 03:56:02

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA

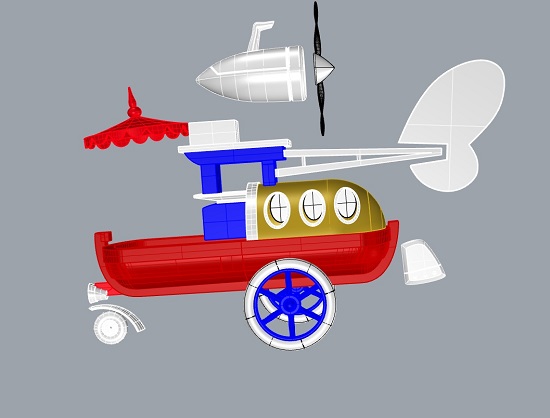

More work on the parts of the convert a car.

I need to do the wheels next.Do you guys want to see the step by step process of making a wheel?

Carl

darbyvet attached the following image(s):
birdaj2
#24 Posted : 22 July 2019 07:33:19

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 31/05/2010
Posts: 5,679
Points: 17,011
Location: Wiltshire
Carl

Looking really good.

I would be interested to see how tye wheels are made.

Tony
Happy Modelling

BUILDING: Hachette Spitfire Mk 1A, Constructo Mayflower
SUBSCRIPTION COMPLETE (Awaiting building): USS Constitution, Sovereign of the Seas, 1:200 Bismarck (Hachette)
COMPLETED: Porsche 911, E-Type Jaguar, Lam Countach
roymattblack
#25 Posted : 22 July 2019 07:50:53

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered

Joined: 04/06/2011
Posts: 4,742
Points: 14,372
Location: ipswich
This is a really interesting project. I'm looking forward to seeing some of it as a physical model.
Keep it coming.

Roy.
tigerace
#26 Posted : 22 July 2019 10:59:29

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 28/07/2014
Posts: 4,269
Points: 12,713
Location: Scotland
Nice update CarlBigGrin regards Phil
COMING SOON =1/72 Italeri diorama`s Battle for the Reichstag and Stalingrad battle at the tractor factory 1/16 Trumpeter King Tiger with loads of extras ON THE GO= refurbishment of 1/25 Tamiya tiger 1 , amt Star trek kits and space 1999 models

So Much to Build,But What a Hobby!


Markwarren
#27 Posted : 22 July 2019 18:58:16
Rank: Administration

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered, Administrators, Global Forum Support, Moderator, Forum Support Team, Official Builds

Joined: 04/01/2016
Posts: 6,688
Points: 20,381
Location: Northamptonshire, England
Nice work Carl, I can see this going into full production soon.Love

Mark
Regards
Markwarren
(Mark) Admin
Gandale
#28 Posted : 22 July 2019 22:35:36

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered, Global Forum Support, Moderator, Official Builds, Administrators

Joined: 08/09/2012
Posts: 15,172
Points: 46,151
Location: Aberdeen
This is really coming along Carl, lovely work and great to see something different.... Very interesting seeing the processes...Cool Cool

Regards

Alan
darbyvet
#29 Posted : 23 July 2019 01:48:06

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA
OK wheel 3d tutorial

here we go;

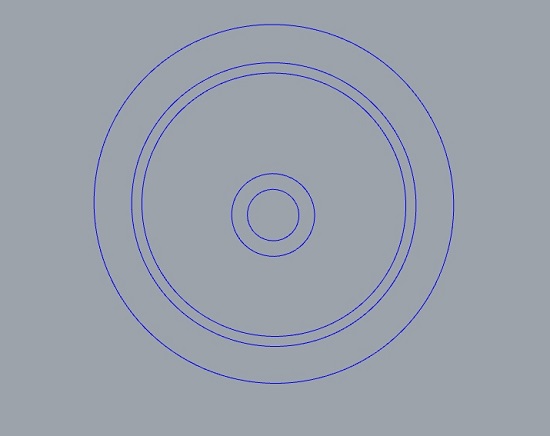

Step one is I traced around the picture to get the outline of the wheel

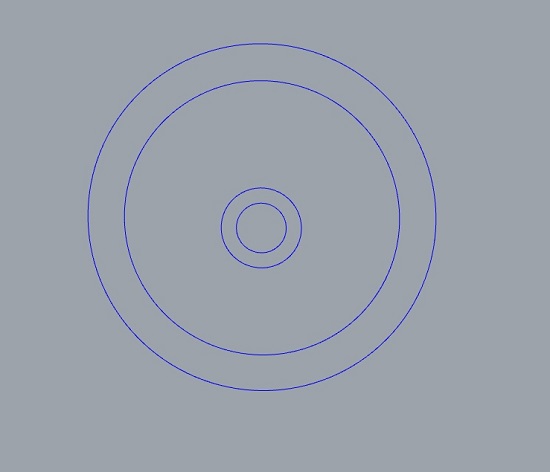

Step 2 Starting with the rim I made a second circle inside the first.

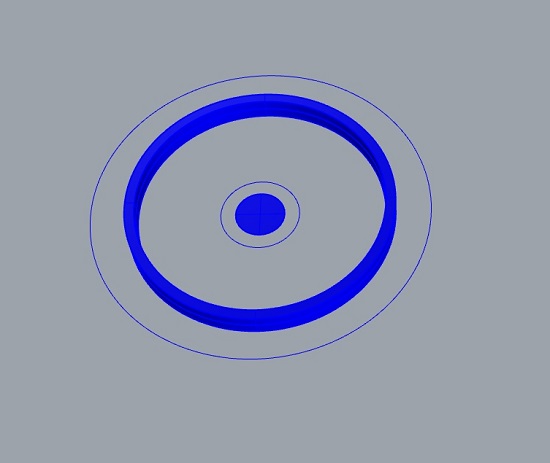

Step 3 I made a surface between the 2 circles and then extruded the surface to make a solid rim.
darbyvet attached the following image(s):
darbyvet
#30 Posted : 23 July 2019 01:54:21

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA
Step 4 starting on the hub.Made a surface from the smaller circle

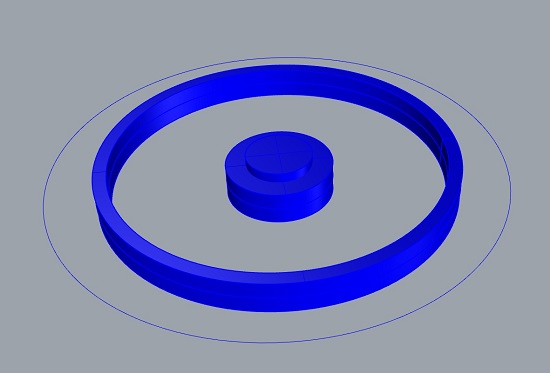

Step 5 extruded the surface to make a solid cylinder

Step 6 made a surface from the out circle of the wheel hub

Step 7 extruded the outer circle surface to make another cylinder

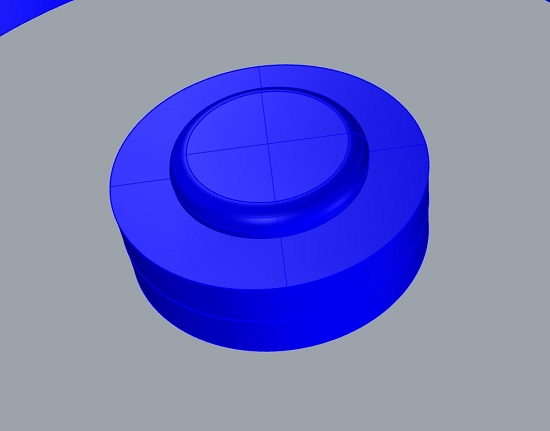

Step 8 I rounded off the edge of the inner cylinder to mimic the axle
darbyvet attached the following image(s):
darbyvet
#31 Posted : 23 July 2019 02:02:01

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA
Step 9 Making a wheel hub cap.I drew an arc between the ends of the hub.

Step 10 I revolved the arc around the vertical line to make the hub cap

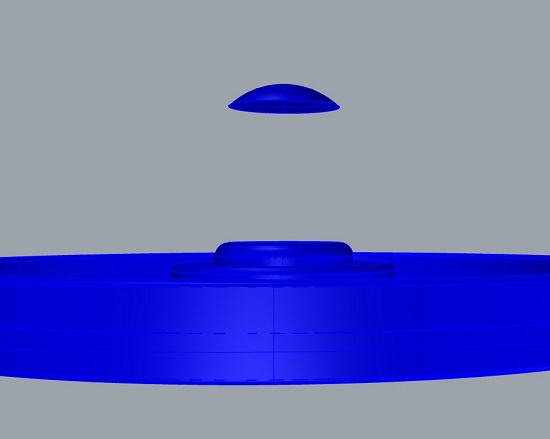

step 11 I separated the hub cap from the hub.This way I can paint it a different color
darbyvet attached the following image(s):
darbyvet
#32 Posted : 23 July 2019 02:19:10

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA

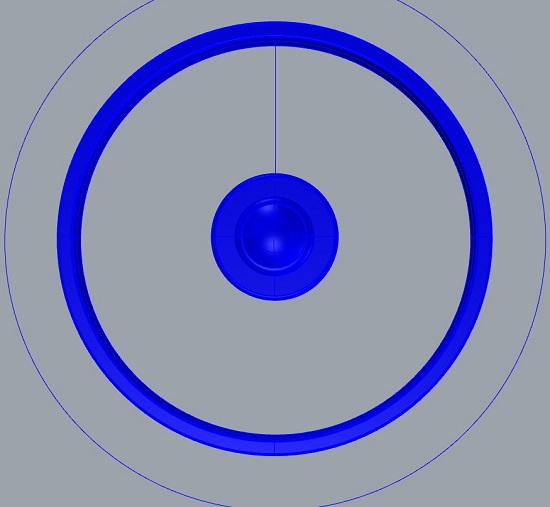

Step 12 making the wheel spokes.I drew a line between the hub and the rim

Step 13 I drew some circles around the line to form the walls of the spoke

Step14 I used the loft function to make a surface that was defined by the circles and the line.This was then made into a solid.

Step15 Once I had one spoke I made 5 others using the polar array function.This duplicates an object around a central point.
darbyvet attached the following image(s):
darbyvet
#33 Posted : 23 July 2019 02:28:00

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA
Step16 making the tire.I drew some reference lines to get the tire width

Step17 I made some curves to make the tire bulge slightly.These curves will form the outline of the tire.

Step18 I used the sweep 2 rail function to rotate the curve around the rim to make the tire.


Step19 The final render of the wheel.It was quit e a few steps, but it only took me about 15 minutes. I will now make a mirror image of the wheel to make the other back wheel and make an axle


Carl
darbyvet attached the following image(s):
birdaj2
#34 Posted : 23 July 2019 11:27:30

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 31/05/2010
Posts: 5,679
Points: 17,011
Location: Wiltshire
Carl

That is so skilled being able to produce things as you do.

Its all looking really good.

Tony
Happy Modelling

BUILDING: Hachette Spitfire Mk 1A, Constructo Mayflower
SUBSCRIPTION COMPLETE (Awaiting building): USS Constitution, Sovereign of the Seas, 1:200 Bismarck (Hachette)
COMPLETED: Porsche 911, E-Type Jaguar, Lam Countach
Garth
#35 Posted : 24 July 2019 15:34:45

Rank: Master

Active Service Medal: 500 post active service MedalTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of HonourOutstanding Build: An award for an outstanding build
Groups: Registered

Joined: 29/03/2011
Posts: 1,053
Points: 3,165
Location: Glenvista JHB
Hi Carl,
I really like your Rhino skills. I also use Rhino, its such an awesome design package.
Kind regards,
Garth
"Measure twice, cut once!!!"
Finished!!! HMS Victory,
Current build: Black Pearl.
On hold: Bismarck, Golden Hind, Flying Scotsman, Victory Cross Section, SOTS, Tiger 1.
Wish list: USS Constitution.
roymattblack
#36 Posted : 24 July 2019 15:38:31

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered

Joined: 04/06/2011
Posts: 4,742
Points: 14,372
Location: ipswich
As a slight aside here - did you know Scalextric are soon to release Penelope Pitstop's car...?
They have the rights to Wacky Races so who knows - many others will probably follow...
darbyvet
#37 Posted : 24 July 2019 16:15:52

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA
Thanks Guys,


@Garth Thanks.Rhino is an incredible program.It has a steep learning curve and you have to get your head around the NURBS stuff but it is very powerful.I am currently experimenting with applying textures to surfaces and then using extendrendermesh to make the textures part of the printable model.If I can get it to work it will be perfect for the boulder car in Wacky races and the Arkansas Chugalug wooden planks

@Roy. Oh I hope they do release the pink catcat.If they do I would buy one and scan it to make a bigger version to the same scale as the convert a car.it is quite difficult to model because of all the complex curves.

Carl

roymattblack
#38 Posted : 24 July 2019 16:49:59

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered

Joined: 04/06/2011
Posts: 4,742
Points: 14,372
Location: ipswich
Carl - have a look on the Scalextric website. They show all new releases for 2019.
Surely before long, they will be showing 2020

BTW... PM coming your way.
nightwisher
#39 Posted : 24 July 2019 21:01:34

Rank: Vice-Master

Active Service Medal: 500 post active service MedalTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 09/12/2013
Posts: 577
Points: 1,748
Location: smethwick england
This technical stuff is amazing ,it's all science fiction to me and something I'll never get my head around . Can't wait to see it all for real
Man he took his time in the sun
Had a dream to understand
A single grain of sand
He gave birth to poetry
But one day will cease to be
Greet the last light of the library...We were here!
darbyvet
#40 Posted : 25 July 2019 04:40:33

Rank: Super-Elite
Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 17/12/2013
Posts: 3,982
Points: 11,974
Location: NY, USA
Almost finished the major sub assemblies.Once this is done I will do a test print to see how it looks

CD
darbyvet attached the following image(s):
