steve-h Black Pearl Build diary Options
steve-h
#21 Posted : 16 February 2014 12:02:41

Rank: Amateur level 2


Groups: Registered

Joined: 24/01/2014
Posts: 46
Points: 141
Location: gosport
Hi Gandale I want to try and make it more than it is some led lighting, and where you can see the open space to try and make it authentic as possible.I will probably end up picking people's brains (zombie mode LOL).
Regards steve
when I had an MRI scan all they found was an IOU instead of a brain
steve-h
#22 Posted : 21 February 2014 23:00:39

Rank: Amateur level 2


Groups: Registered

Joined: 24/01/2014
Posts: 46
Points: 141
Location: gosport
Hi everyoneBigGrin
I have been to the library and found a book on model ships
Building The Wooden Fighting Ship by James Dodds & James Moore.
The only problem was they had nothing on east Indiaman ships, so I had to borrow one on a 74 gun ship.

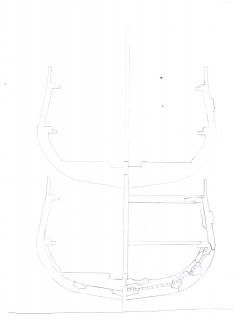

I copied a picture from the book on mid ship frames, and then I copied it onto a picture of the rib from issue 3.


I think a lot of the detail would be lost under the deckingConfused and ideas?
Steve
when I had an MRI scan all they found was an IOU instead of a brain
arpurchase
#23 Posted : 21 February 2014 23:20:47

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 27/09/2011
Posts: 15,196
Points: 45,687
Location: Dudley
BigGrin Hi Steve
You need some careful planing here if you wish to procead down this avenue, such as the exposed/visible open areas along the side of the hull could have the true build sequences you propose but also remember that their would be the ribs to include too so perhaps a mix of both in the open area's. Anything that is enclosed by planking will be a wast of effort apart from the satisfaction you know its there if you do add it. Hope this helps in your endevours
regards
AndyCool

PS Just an idea but perhaps looking at some x section builds like the Victory an Santisima Trinidad builds on here and others that can be found at CMB will help you in your planing
Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .

karl1113
#24 Posted : 22 February 2014 00:34:37

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 04/04/2010
Posts: 3,955
Points: 11,809
Location: uk
a trip to the portsmouth museum is in order here, many ships to look at. with what your after,or the greenwich maritime museum is a must, all scales and all types,to make your mouth water.
Current builds: SotS, USS Consitution, San Felipe, D51 loco, HMS Surprise, RB7, Arab Dhow, Jotika HMS Victory
Completed builds: HMS Pickel, Thermopylae, Mississipi river boat, Mary Rose, Cutty Sark, San Francisco II, HMS Victory x5, Titanic Lifeboat, Panart HMS Victory Launch, Hachette Titanic, Virginia Schooner, Endeavour Longboat.

http://www.model-space.com/gb/
Silent_Running
#25 Posted : 22 February 2014 07:23:32

Rank: Master

Active Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 25/03/2011
Posts: 1,027
Points: 3,075
Location: Lincolnshire
karl1113 wrote:
a trip to the portsmouth museum is in order here, many ships to look at. with what your after,or the greenwich maritime museum is a must, all scales and all types,to make your mouth water.


Hi Steve,

As Karl said above, here are the links for you:


National Museum of the Royal Navy

http://www.nmrn.org.uk/



National Maritime museum


http://www.rmg.co.uk/
steve-h
#26 Posted : 22 February 2014 18:40:19

Rank: Amateur level 2


Groups: Registered

Joined: 24/01/2014
Posts: 46
Points: 141
Location: gosport
Hi arpurchase ,Karl and silent_running BigGrin
Thank you for all of your replies. I don't want to go down the lane with wasting time and effort, on the area's that you can not see, but I would like to do something with the space inbetween the ships ribs. I am not sure if a mixture of one half of the open space left open, and the other side filled inbetween the ribs(futtocks)with a filling frame. I don't want to try and go all out on my first model ship, not knowing what I am yet capable of achieving.
when I had an MRI scan all they found was an IOU instead of a brain
steve-h
#27 Posted : 07 April 2014 22:24:47

Rank: Amateur level 2


Groups: Registered

Joined: 24/01/2014
Posts: 46
Points: 141
Location: gosport
Hi everyone been a while since I posted on the pearl I got issues 4-7 in the post last week so here is the latest picture



please could anyone tell me if I need to infill the bow section with balsa wood

Regards
Steve
when I had an MRI scan all they found was an IOU instead of a brain
Gandale
#28 Posted : 07 April 2014 23:27:03

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered, Global Forum Support, Moderator, Official Builds, Administrators

Joined: 08/09/2012
Posts: 15,172
Points: 46,151
Location: Aberdeen
Coming along nicely Steve.... On the subject of balsa infills, you don't have to use them but they do make life easier when it comes to planking..... Cool Cool .. If you feel you are confident enough to plank without them then don't put them in..... My first build, the SOTS, I used balsa infills throughout and it certainly helped me grow in confidence however, for the Titanic I have done without and that is working out just fine... Think the answer is simply do what you feel comfortable with.....Cool Cool ..

Regards

Alan
Pinks666
#29 Posted : 09 April 2014 22:42:13

Rank: Semi-Pro Level 2

Build-Diary Medal: Build-Diary Medal of Honour
Groups: Registered

Joined: 09/04/2014
Posts: 89
Points: 285
Location: Aberdeen
Hi Steve, needing a bit of your expertise here,

On Issue 8 and I have to bevel the bow but the section 15s on issue 4 sit we'll bellow the bulkheads, as you can see on your last post, (between the 2nd and 3rd bulkhead back looking from the front)

Do these section 15s need to be sanded to follow the contours of the bulkheads or will they sit proud.

I am a complete novice with wooden ship building so any advice will be much appreciated

Many thanks
Happy Modelling

Marc Heeley
steve-h
#30 Posted : 09 April 2014 23:45:16

Rank: Amateur level 2


Groups: Registered

Joined: 24/01/2014
Posts: 46
Points: 141
Location: gosport
Hi Pink I think there are others that could answer that a lot better than me this is my first build too so learning as I go along.

Christopher might be the one to ask about that he is a lot further along than me.

regards
Steve

when I had an MRI scan all they found was an IOU instead of a brain
Pinks666
#31 Posted : 12 April 2014 19:29:10

Rank: Semi-Pro Level 2

Build-Diary Medal: Build-Diary Medal of Honour
Groups: Registered

Joined: 09/04/2014
Posts: 89
Points: 285
Location: Aberdeen
Thanks for getting back to me, I will post Christopher the question.

Thanks again

Happy Modelling

Marc Heeley
