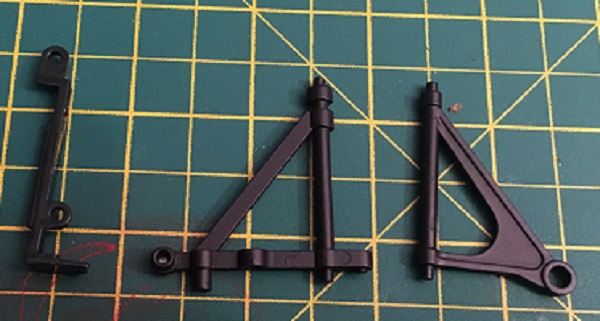

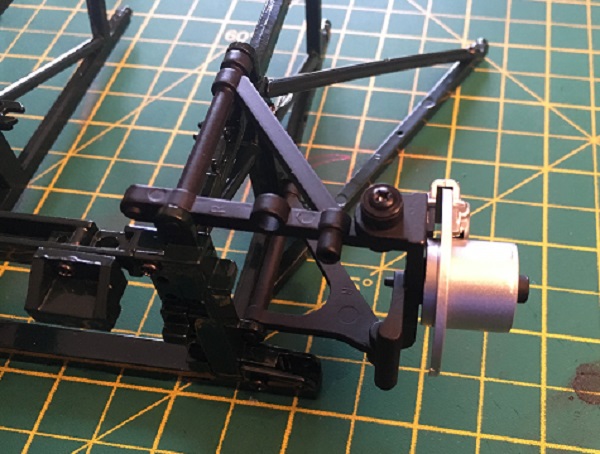

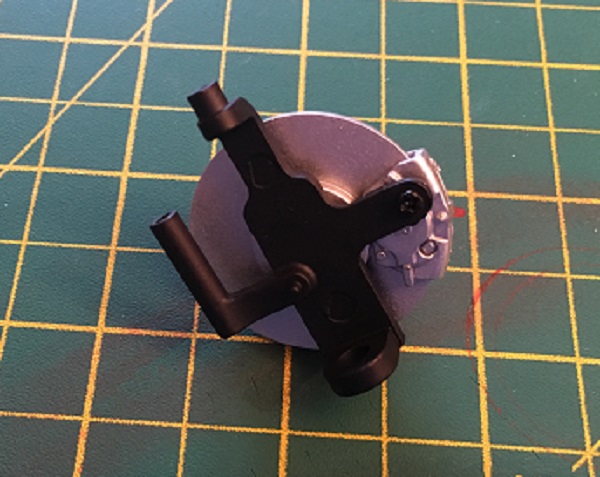

Back to the build and the subframe takes shape Build the Jaguar E-Type, Part 22Parts with issue 22Left upper wishbone Left lower wishbone Left suspension upright This is like stage 20. Take the inner side member from stage 21 and align the wishbones from this stage with the 2 indicated pivot holes. (Picture 2) Take the suspension upright and fit it over the 2 pivot holes, aligning the fixing holes. Secure the suspension upright in place with 2 screws. (Picture 3) Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|

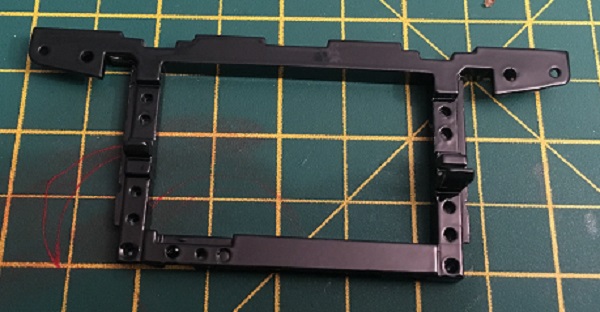

Build the Jaguar E-Type, Stage 23Parts with Issue 23Front Crossmember Take the Crossmember from this issue and the 2 sidemember assemblies, assembled previously. Take the left hand side member and slide it into place taking note of the orientation. Secure with 2 screws as indicated. (Picture 2) repeat for the right hand side member, making note of the alignment shown. (Picture 3) Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|

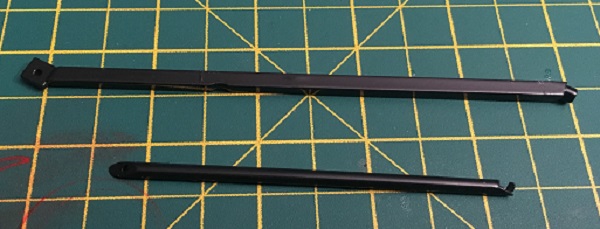

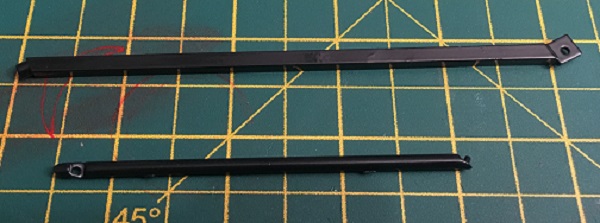

Build the Jaguar E-Type, Part 24Parts with Issue 24Right hand upper brace Right hand diagonal brace Take the subframe assembly and the upper brace. Fit the cranked square on the brace against the front crossmember. Holding the brace in place and turn the assembly over. Secure the brace to the side member through the middle of the side member. (Picture 2) Take the diagonal brace into the hole just above the wishbone pivots and align the other end with the corresponding hole in the upper brace. Secure with a single screw. (Picture 3) Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|

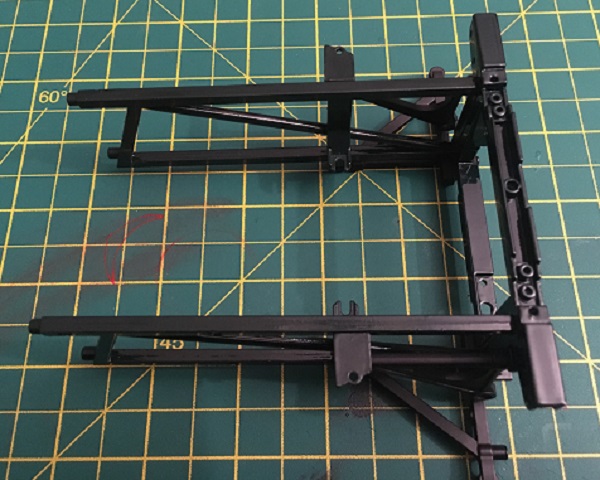

Build the Jaguar E-Type, Stage 25Parts with issue 25Left hand upper brace Left hand diagonal brace This is the same as the previous stage. Take the upper brace and align it as before. Secure with a single screw as before (Picture 2) Take the diagonal brace and secure in with a single screw as before (picture 3) Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|

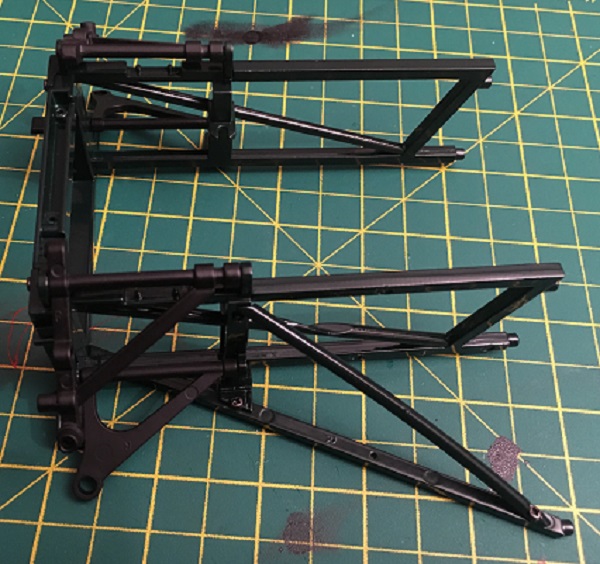

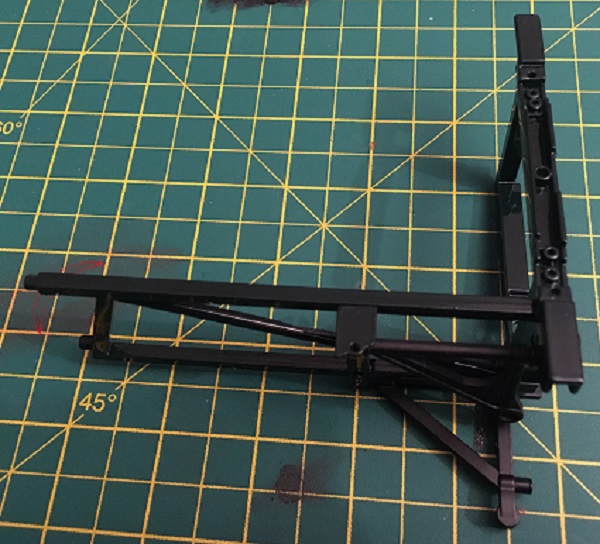

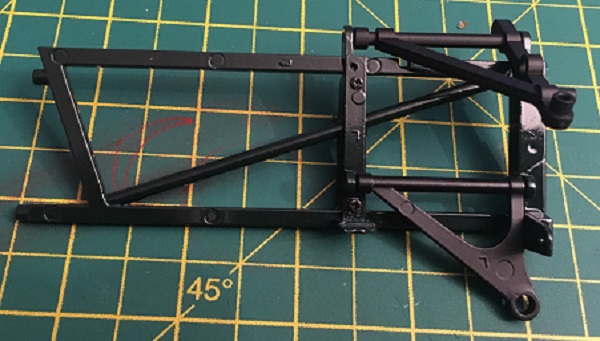

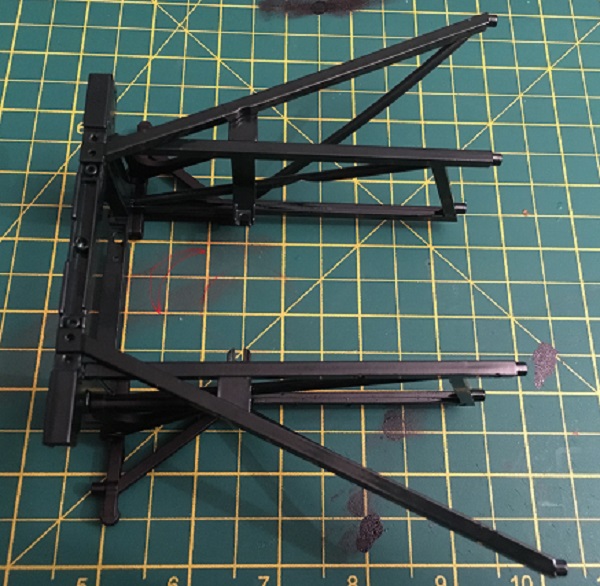

New delivery brings more of the frame Build the Jaguar E-Type, Stage 26Parts with Issue 26Left hand lower brace Right hand lower brace Steering rack mounting bracket Oil filter Take the subframe assembly and the steering rack mounting bracket and align the 2 parts securing with a single screw (picture 2) Take the left hand lower brace and align as shown in the instructions and secure with a single screw (picture 3) the right hand lower brace and the oil filter will be fitted at a later stage Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
 Rank: Pro Groups: New Members, Unapproved Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
looking really good ian, starting to take shape.
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|

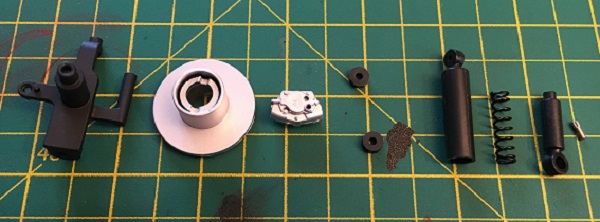

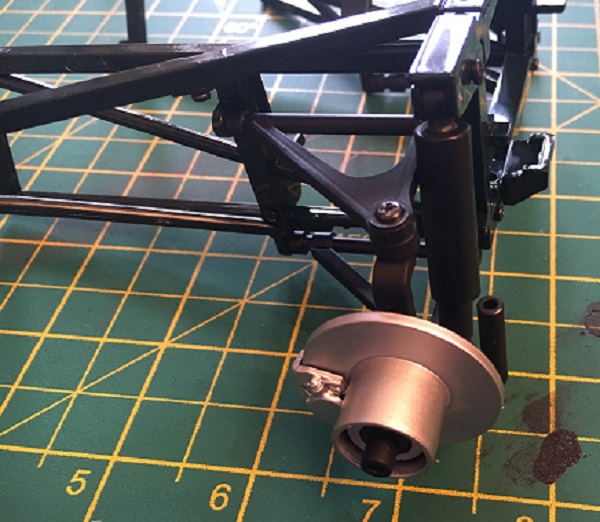

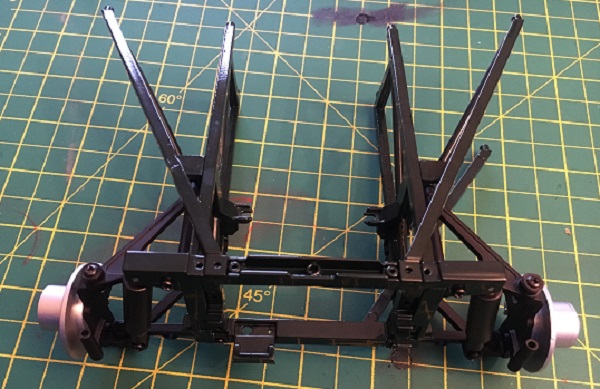

Build the Jaguar E-Type, Stage 27Parts with issue 27Right suspension upright Brake disc Caliper Suspension brushes Shock absorber shroud Coil spring Damper body Pivot pin Take the brake disc and the caliper and slide over the edge of the disc. Align he disc assembly over the central spindle and fit the locating post into the hole in the caliper. Secure with a single screw. (picture 2) take the assembly and the subframe and align with the ends on the wishbones. Fit the brushes over the wishbones and secure with 2 screws from below and above. (picture 3) take the shock absorber shroud and fit the eye into the bracket on the front cross member. Secure with the pivot pin ensuring the splined end goes in last. put the coil spring into the shroud and fit the damper over the spring. secure to the lower wishbone with a single screw. (Picture 4) Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|
Build the Jaguar E-type, stage 28Parts with issue 28Left suspension upright Brake disc Caliper Suspension brushes Shock absorber shroud Coil spring Damper body Pivot pin This stage is identical to the previous stage, just on the left side og the frame Take the brake disc and the caliper and slide over the edge of the disc. Align he disc assembly over the central spindle and fit the locating post into the hole in the caliper. Secure with a single screw. (picture 2) take the assembly and the subframe and align with the ends on the wishbones. Fit the brushes over the wishbones and secure with 2 screws from below and above. (picture 3) take the shock absorber shroud and fit the eye into the bracket on the front cross member. Secure with the pivot pin ensuring the splined end goes in last. put the coil spring into the shroud and fit the damper over the spring. secure to the lower wishbone with a single screw. (Picture 4) Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|

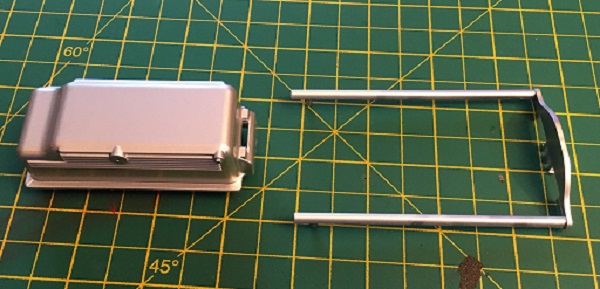

Build the Jaguar E-Type, Stage 29Parts with Issue 29Sump Torsion bar assembly Take the 2 parts provided and align them fitting the 3 prongs into the slot in the sump. (picture 2) Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|
and this brings another month to an end. it's really starting to come together now. won't be long until it starts looking like a car Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Super-Elite  Groups: Registered
Joined: 27/01/2014 Posts: 5,060 Points: 14,980
|
Looking good Ian and coming together nicely
|
|
|
|
|
You're doing a great job Ian, looks great.... Regards Alan
|
|
|
Rank: Super-Elite Groups: Registered
Joined: 19/06/2013 Posts: 4,588 Points: 13,553 Location: West Yorkshire
|
Looking good Ian Its also starting to gain some weight with all that metalwork. Al
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|
Thanks guys. This is going to be a heafty beast when it’s done! Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
Built: Deagostini Millennium Falcon
|
|
|
Rank: Semi-Pro Level 2 Groups: Registered
Joined: 15/03/2017 Posts: 91 Points: 276 Location: Worcester, UK
|

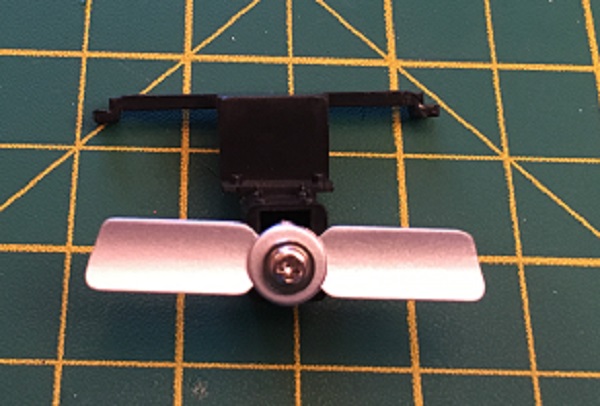

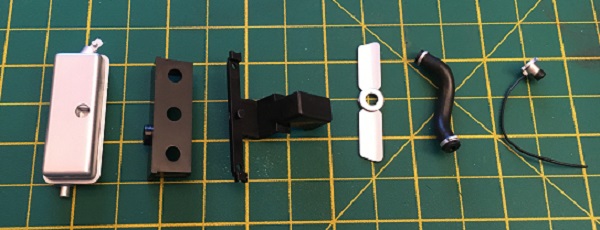

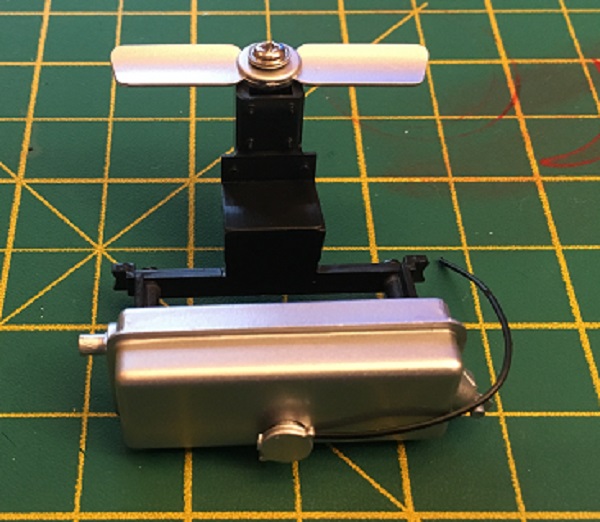

New month means new parts and this month is a busy but fiddly one. The result is great though Build the Jaguar E-Type, Stage 30Parts with Issue 30Radiator header tank Header tank support Fan motor assembly Cooling fan Hose Filler cap Fit the fan onto the motor shaft and secure with a single screw (picture 2) Fit the header tank too its support and secure with a single screw (picture 3) Line the motor assembly and the support up and secure together with 2 screws (picture 4) Line the filler cap up with the hole in the header tank and push firmly into place. (picture 5) The hose will be attached at a later stage Ian23 attached the following image(s): Building: Deagostini R2D2, Eaglemoss Delorean, Deagostini E-Type
