Thanks for the encouragement, I am now attacking the border to the bow, making a paper template of the curve then going to cut the border timber out of plywood. I will keep you posted.

Mo Confused

Report Abusive | Report SPAM

User Profile
Show User Posts

#142 Posted : 31 August 2012 23:42:27

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

Just a wee note to say I have not given up on my build, just been really busy with work etc, now of on holiday for a while, will get back into it soon, as the nights are fair drawing in, I always said this would be a 4 year build,

Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

#143 Posted : 20 September 2012 22:56:26

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

After the disaster of trying to form a margin plank to the deck at the bow,( in plywood ). See my post on Surprise - General - Advice sought. I have now got timber 20mm wide and I am going to do the margin plank in 3 stages, The timber is less likely to split.

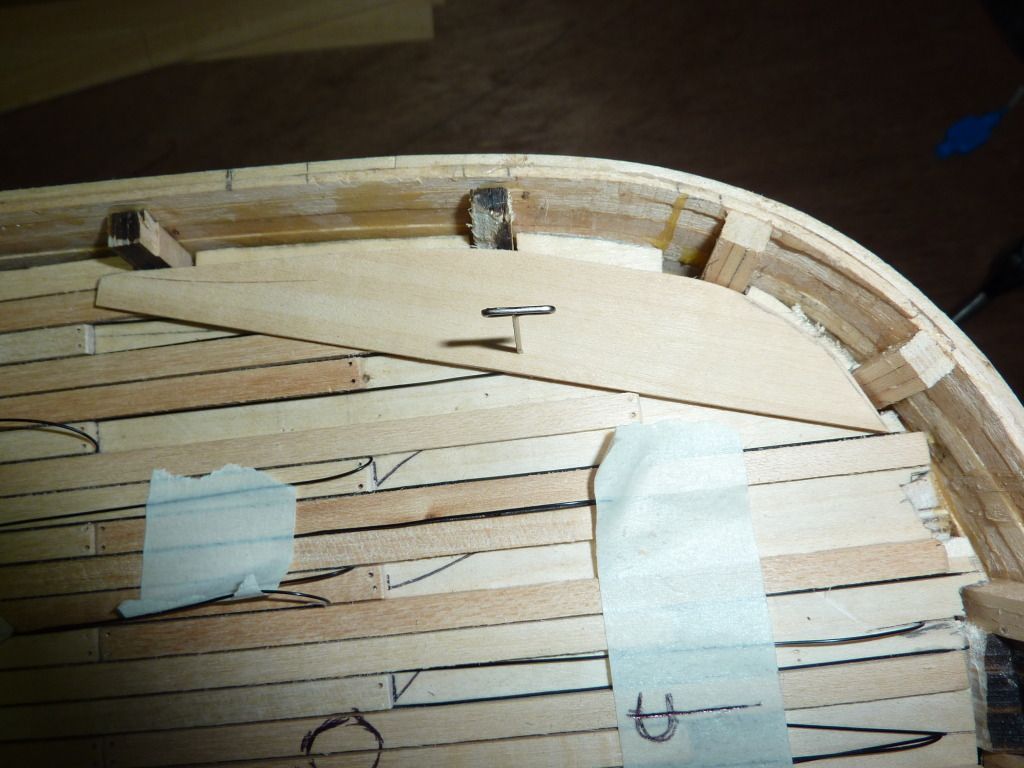

Firstly I cut a bit of the 20mm plank and fitted it to the frames.I did this to both port and starboard sides.

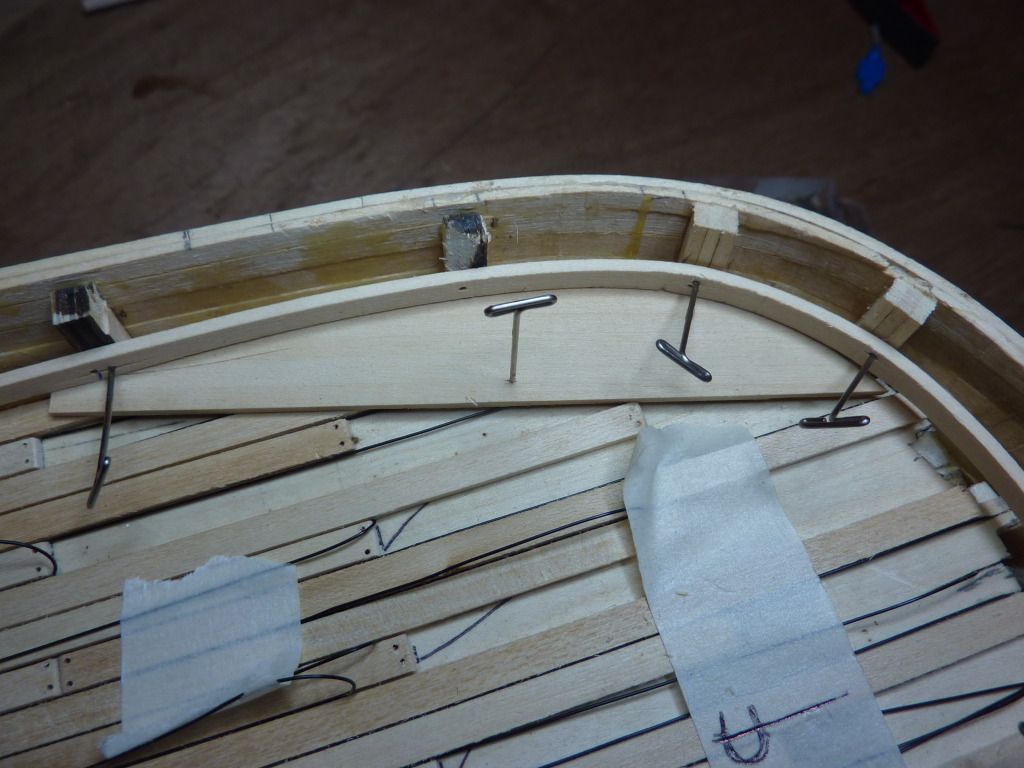

I them fitted one of the pre bent bulwark planks and pinned in place.

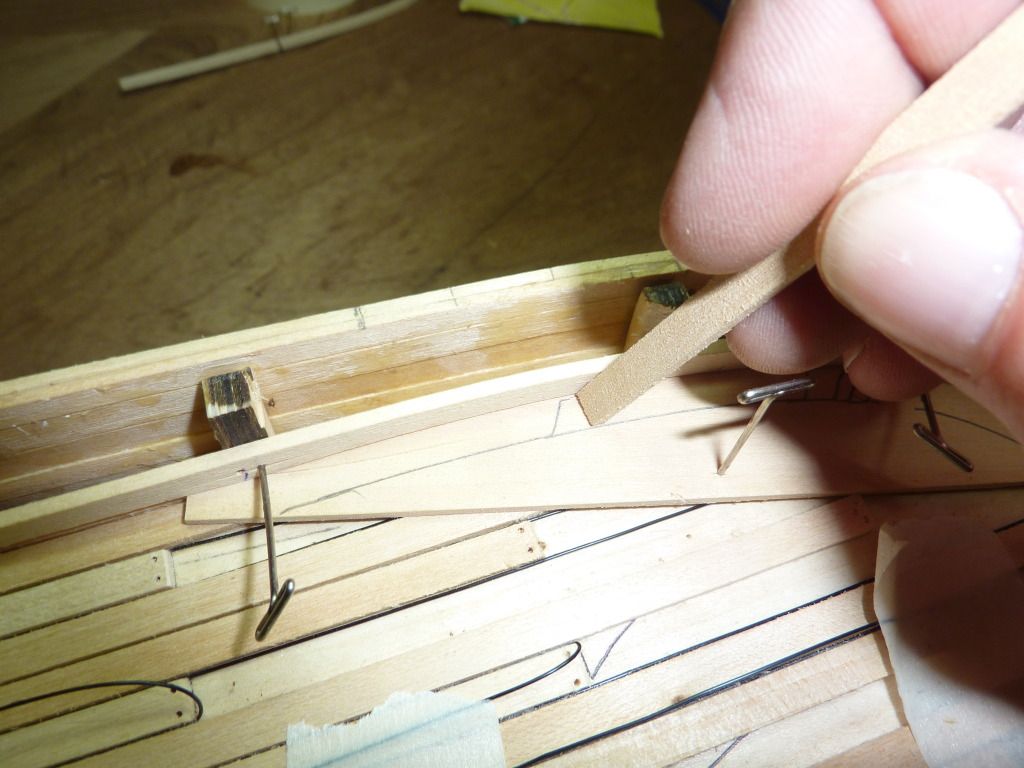

I then used a piece of deck planking and marked a parrell line round the bulwark plank. This then gives me the finished line i need to achieve.

Report Abusive | Report SPAM

User Profile
Show User Posts

#144 Posted : 20 September 2012 23:03:48

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

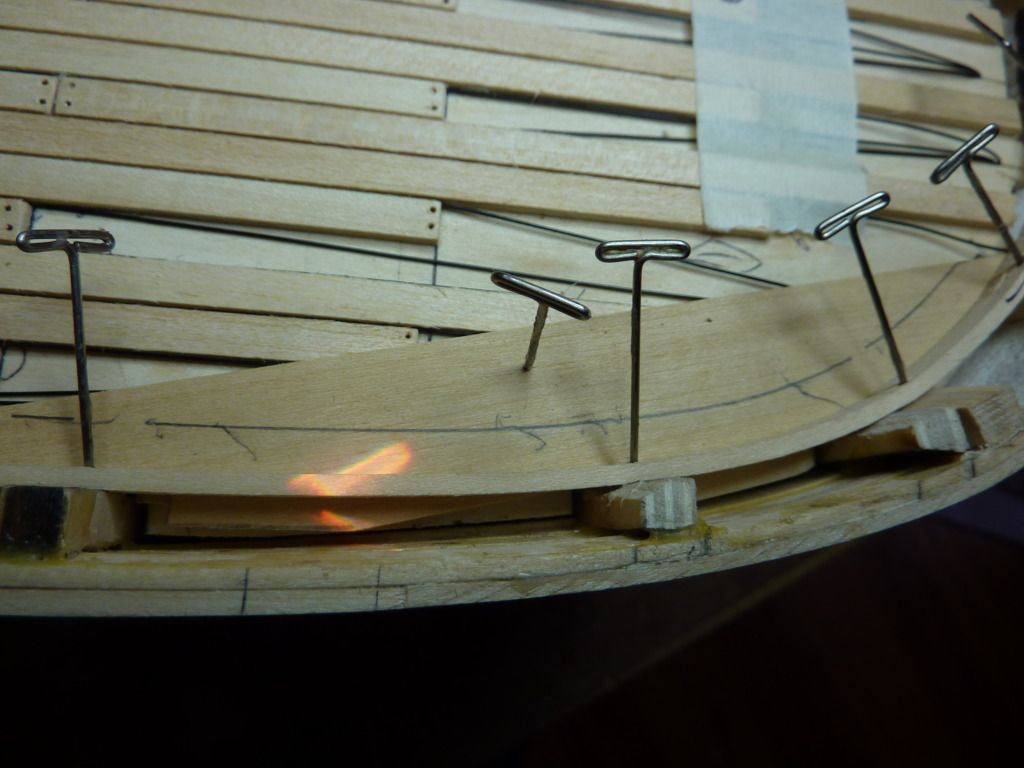

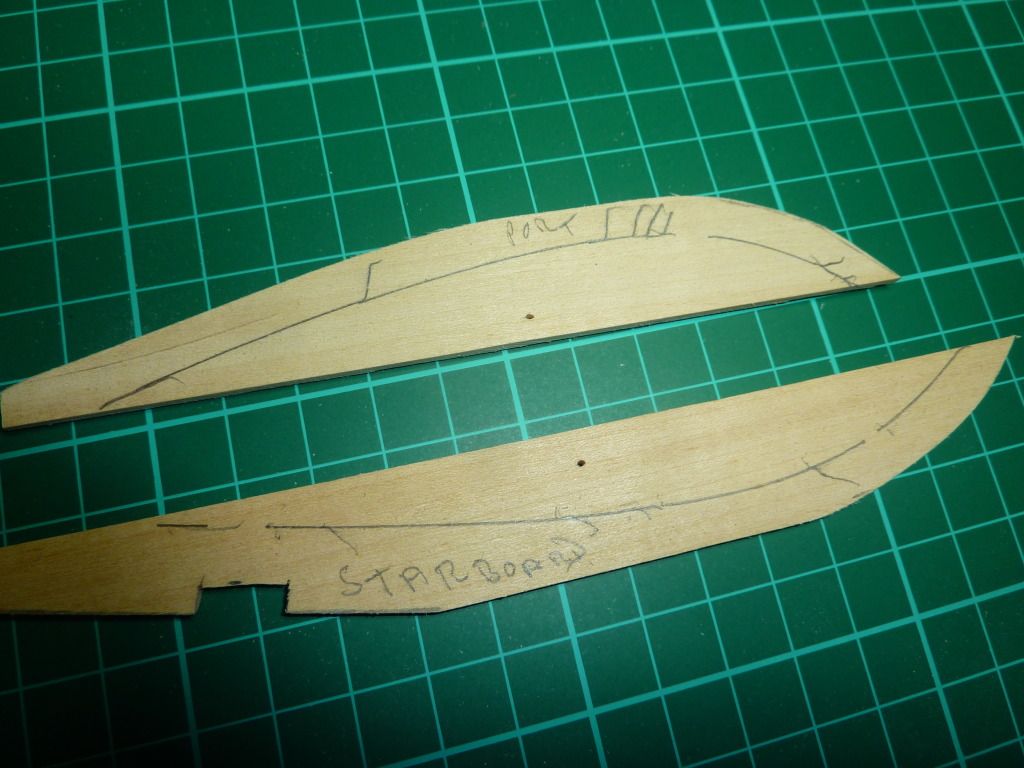

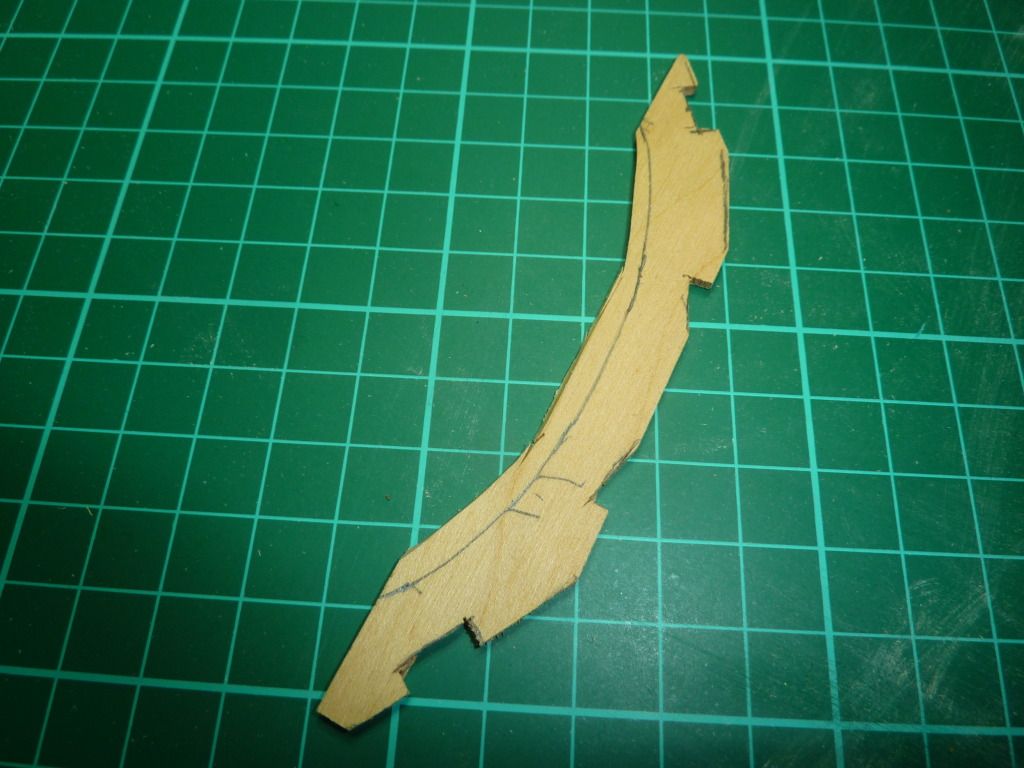

Again the margin plank now marked ready for cutting.

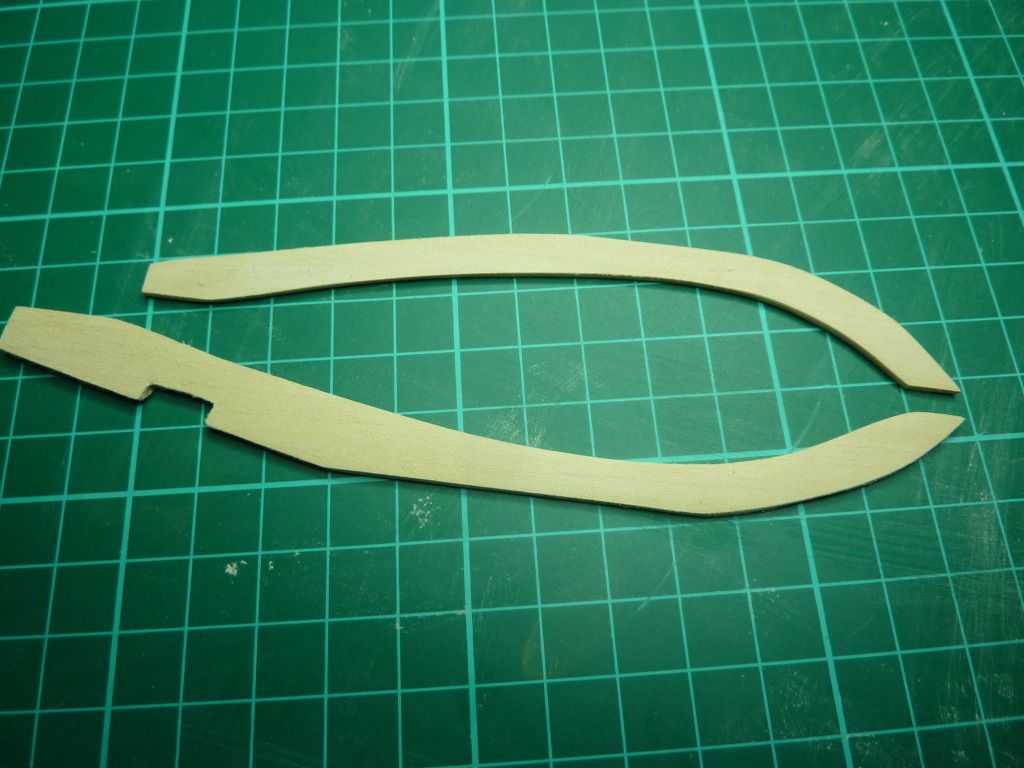

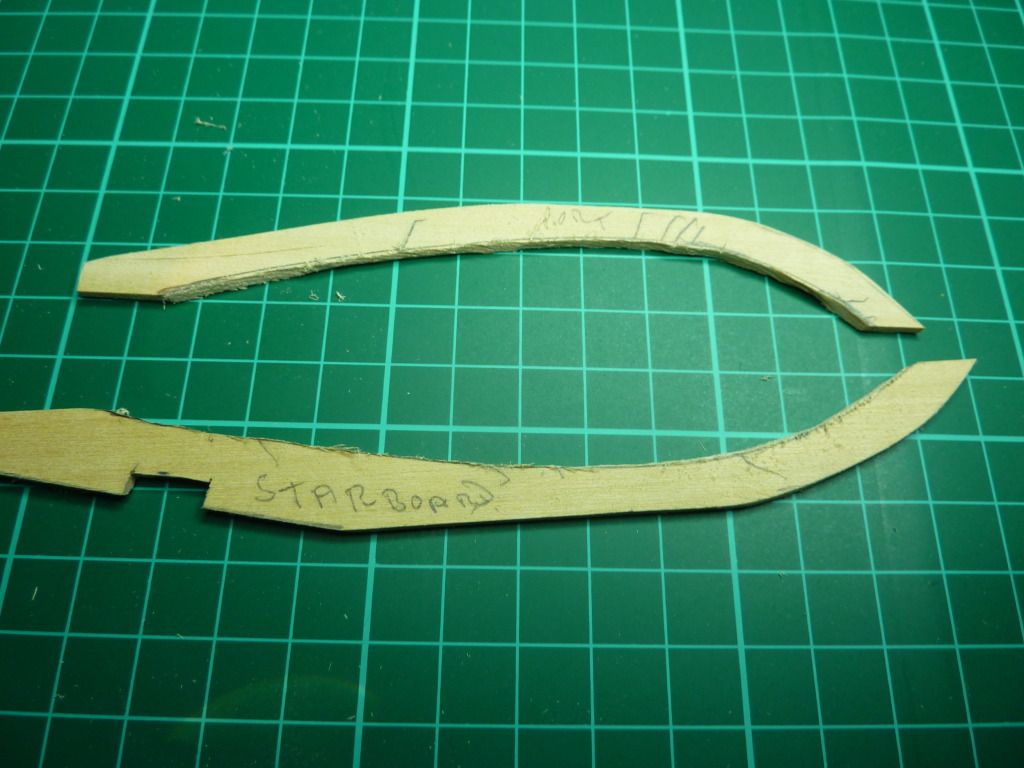

Now all cut and sanded to shape.

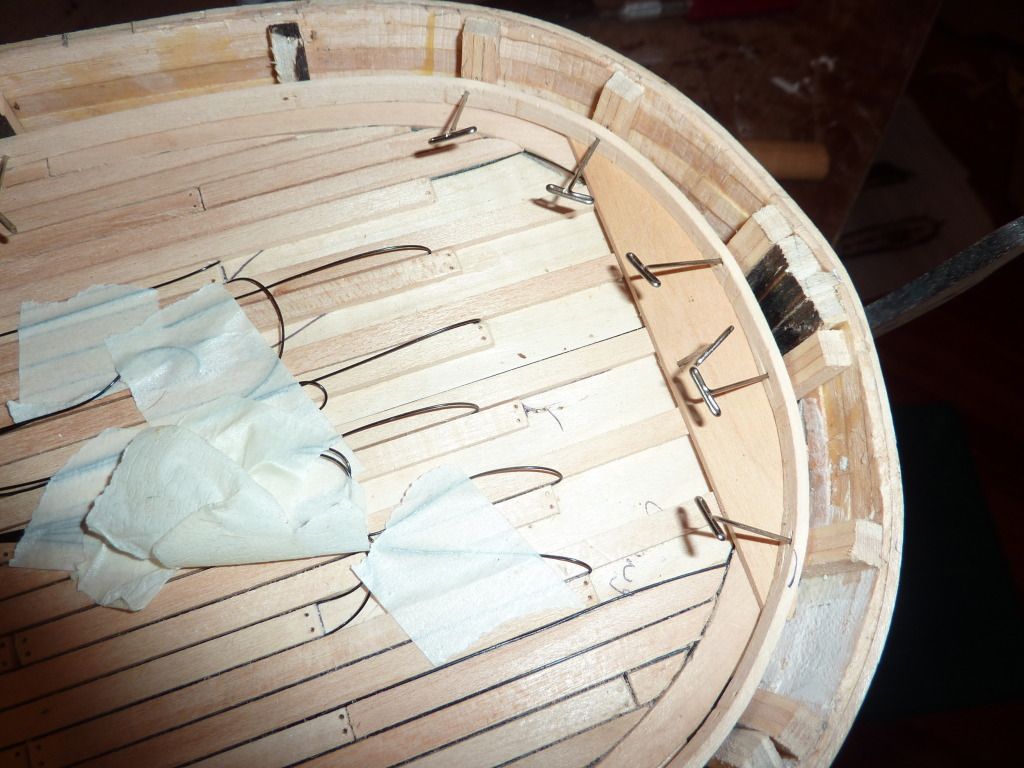

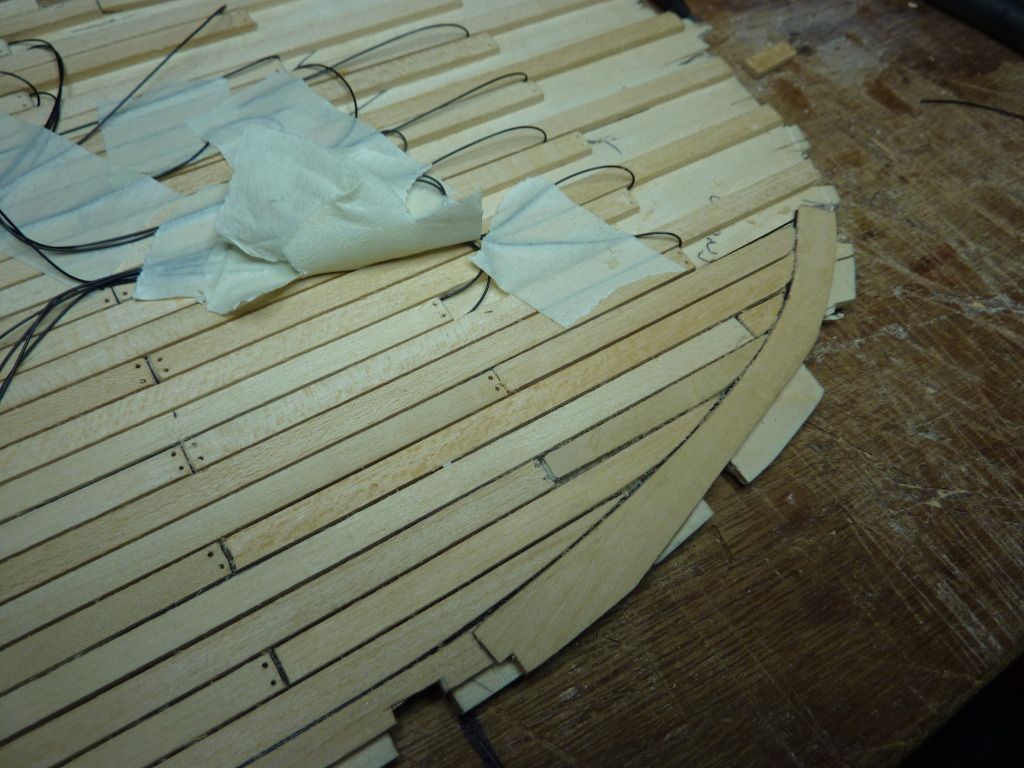

I then glued and fitted the pieces in place.

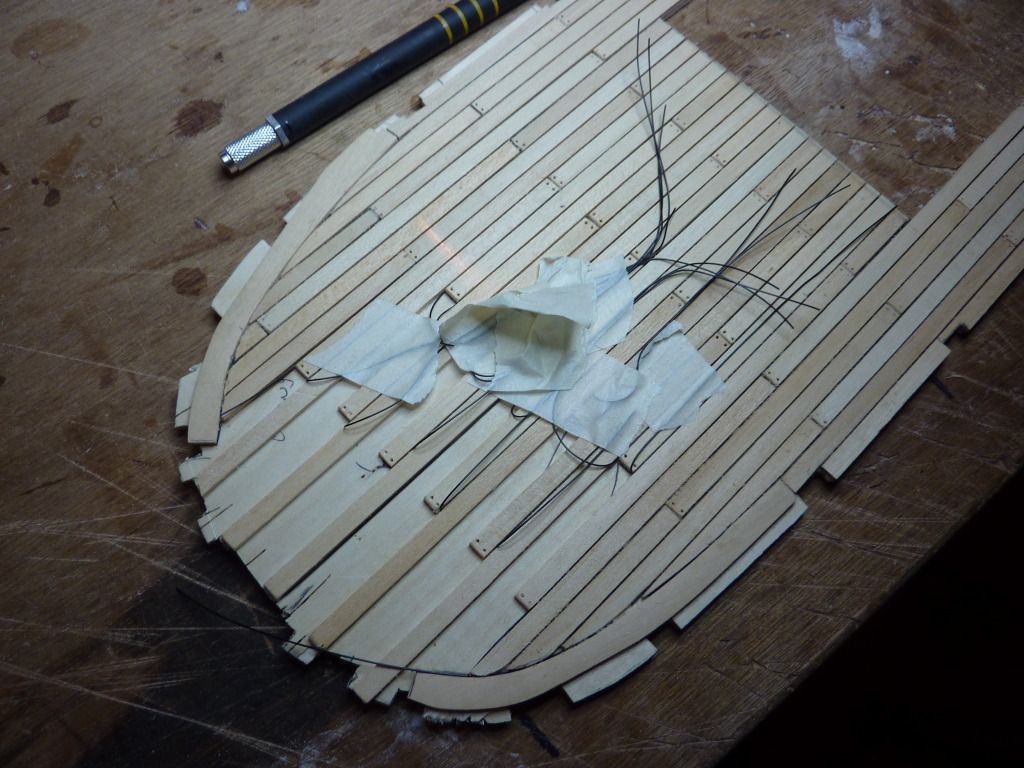

then it's just a case of cutting and filling in the decking.

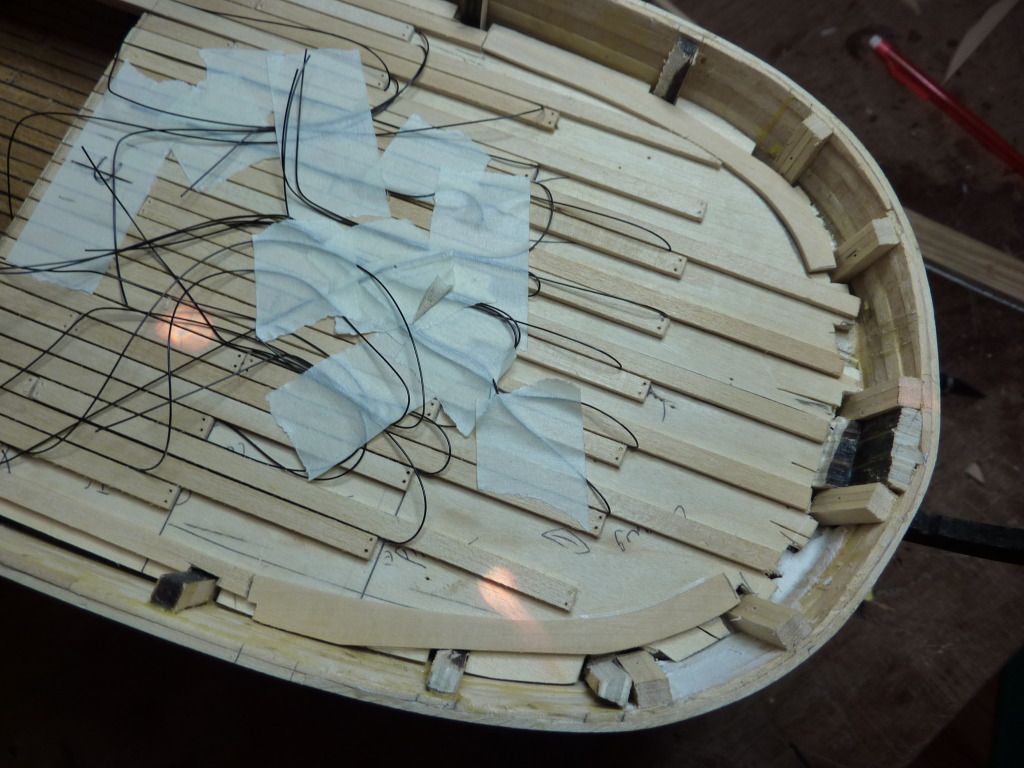

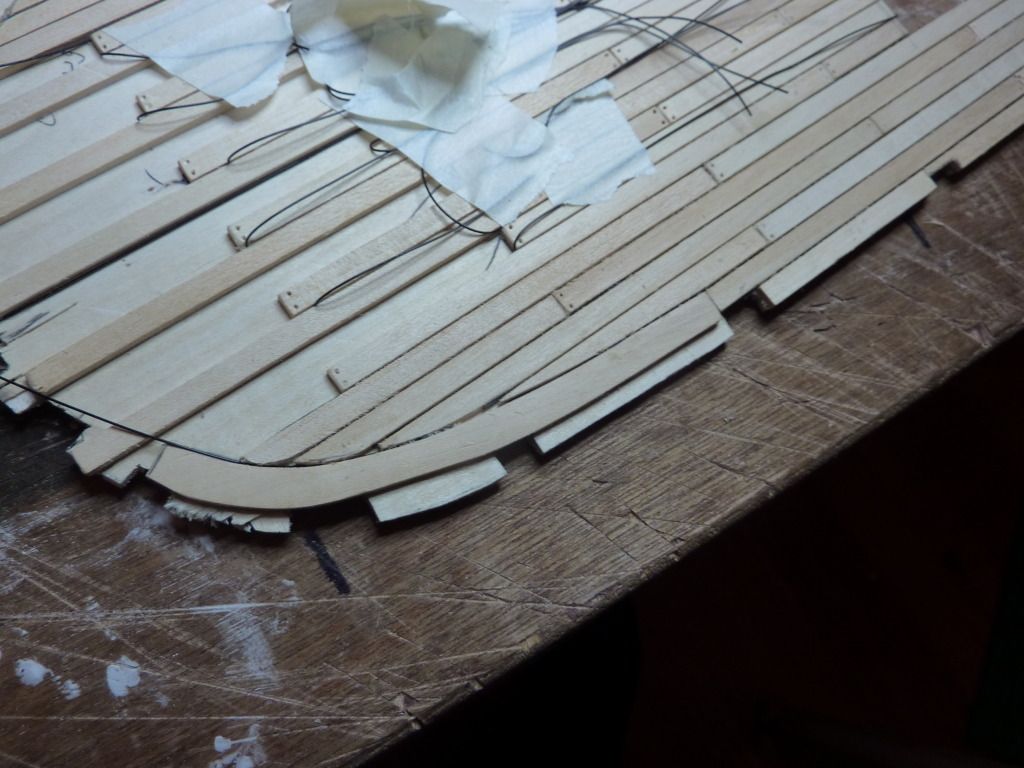

and after the two side margin planks I did the one to the bow.

Over and out for now.
Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

farrabass

#145 Posted : 20 September 2012 23:30:46

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348

Very nice work and a very useful guide on how to do it.
I look forward to the next installment.
Steve..

petpole

#146 Posted : 21 September 2012 21:04:27

Rank: Vice-Master

Groups: Registered

Joined: 20/10/2010
Posts: 511
Points: 1,459
Location: Loughborough

Getting there now mo keep up the good work.
peter

BigGrin

Builds in progress: HMS Victory.HMS Surprise.
Completed builds: Revell London Bus 1/24.
Builds to do:Sovereign of the seas, Hms Albion.

Report Abusive | Report SPAM

User Profile
Hide User Posts

#147 Posted : 24 September 2012 17:34:49

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

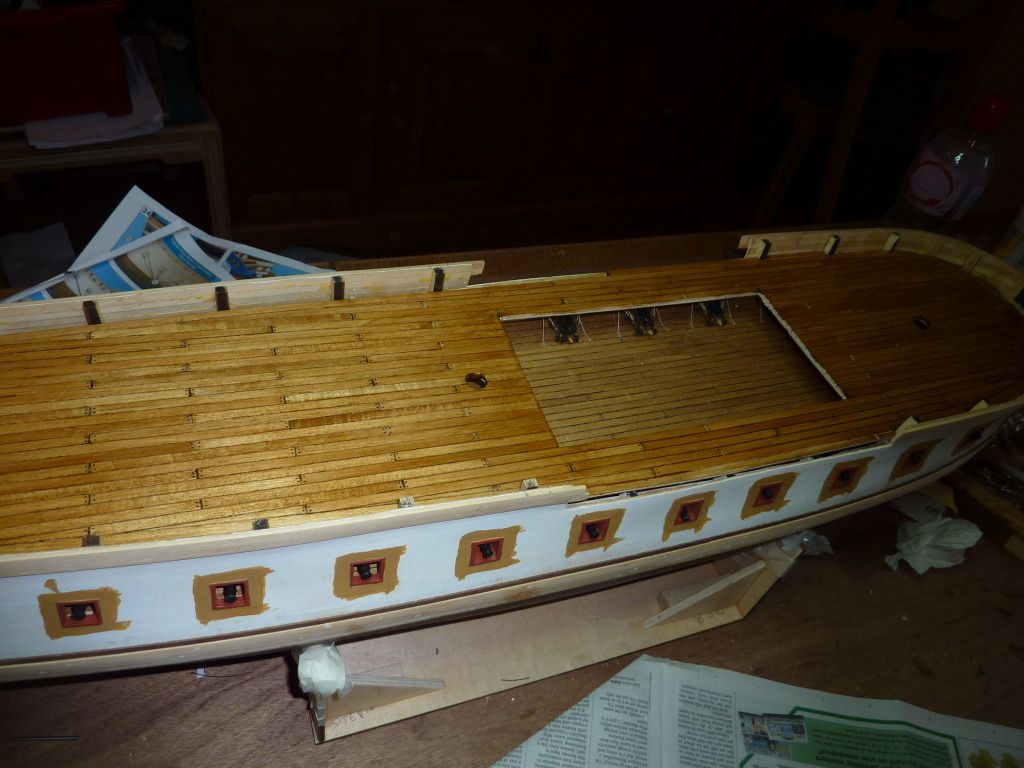

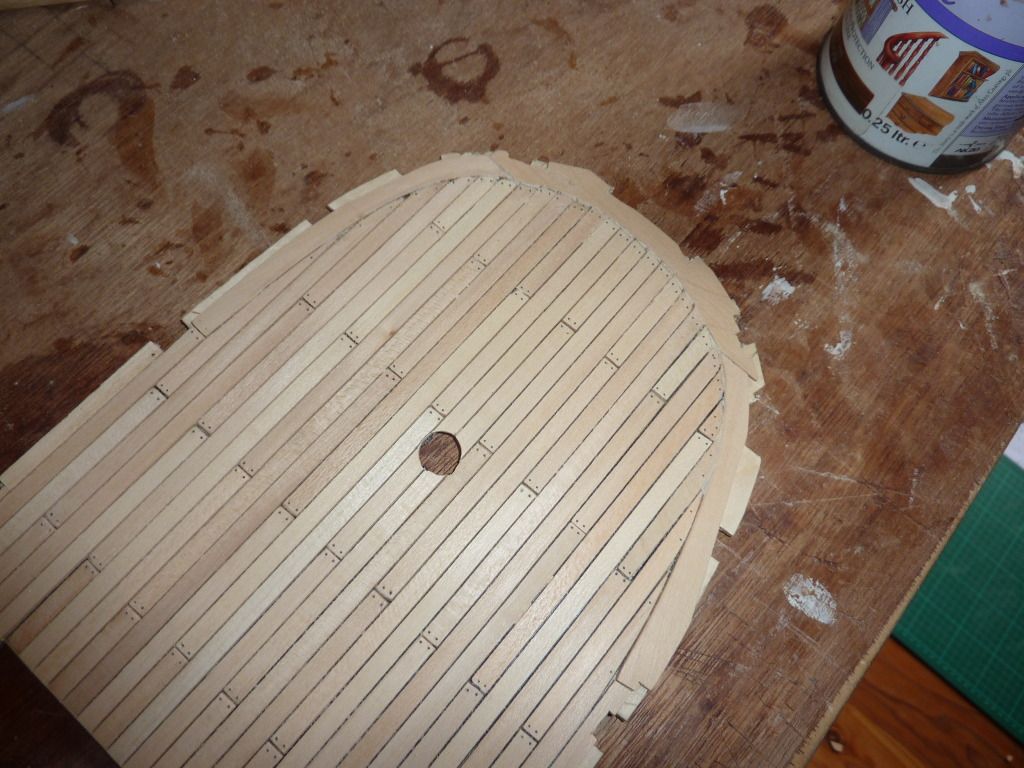

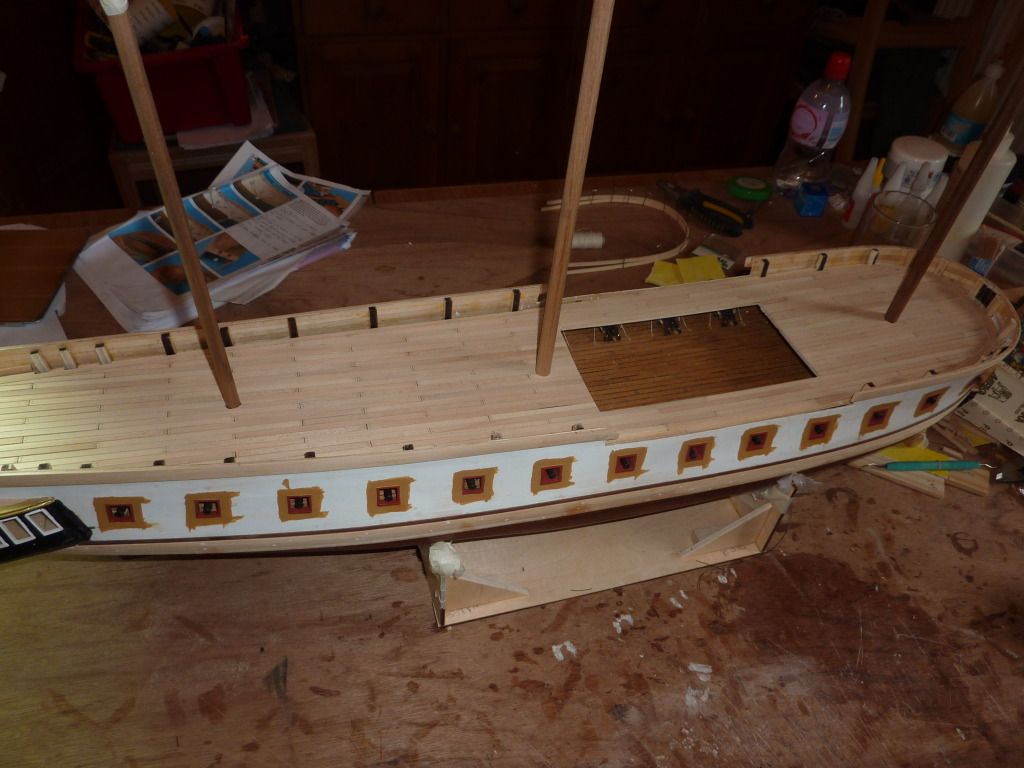

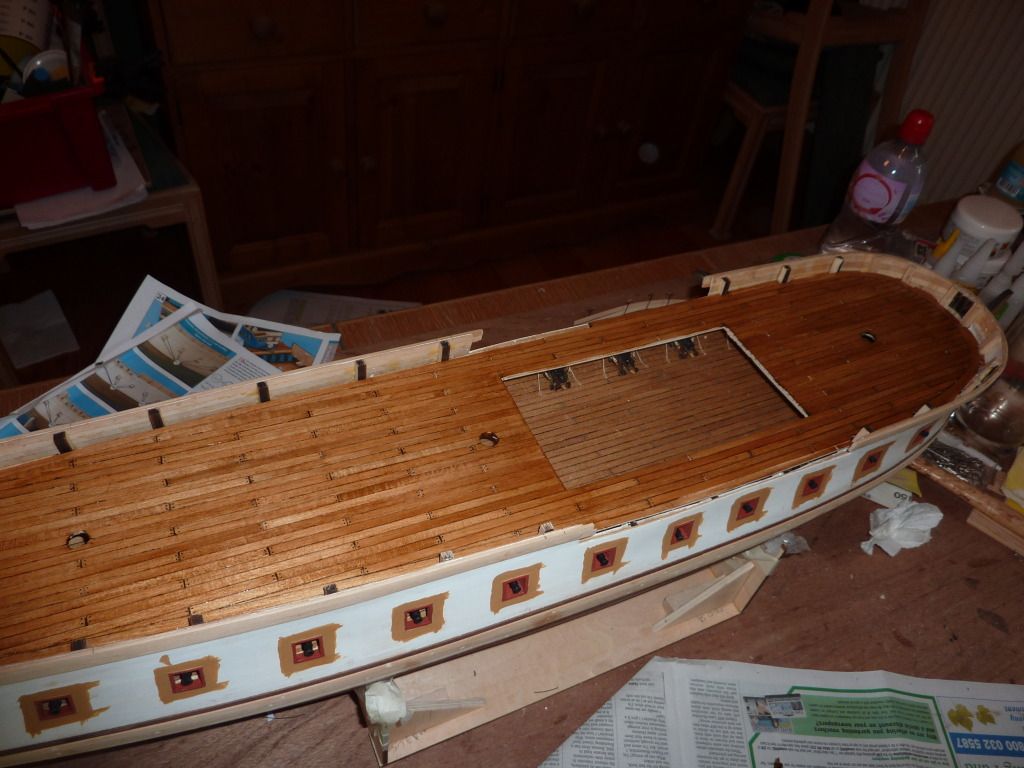

I have now finished the margin plank to the bow and filled in all the planking.

I have also transfered the mast holes from the lower deck to the top deck.I have also checked the hatch opening is straight and square, and I have done all the treenailing.

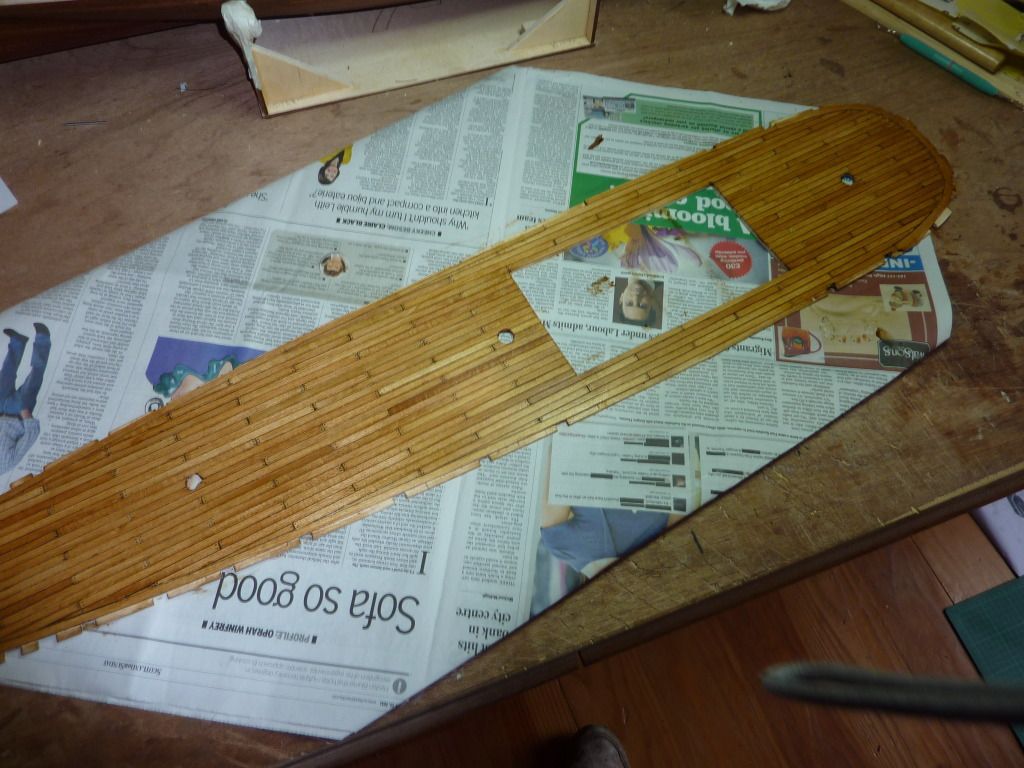

And again I have treated the deck to a coat of oak stain.

Quite happy that all that work in now complete.

Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

harty

#148 Posted : 24 September 2012 18:58:58

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348

Nice piece of work on that deck in the end Mo, looks good. She is starting to look the part now Cool

MWG

#149 Posted : 24 September 2012 19:27:22

Rank: Super-Elite

Groups: Registered

Joined: 24/04/2010
Posts: 5,787
Points: 17,662
Location: Stafford, United Kingdom

Hi Mo very nice work BigGrin

Love the deck Regards Mike

MWG BUILD DIARIES: HMS VICTORY, SOVEREIGN OF THE SEAS, SAN FRANCISCO II, HMS HOOD, HMS ENDEAVOUR LONGBOAT, HMS VICTORY X-SECTION, 007 DB5, NISSAN GTR, CUTTY SARK, RB7, AKAGI, BARK HMS ENDEAVOUR, HUMMER H1, MITSUBISHI ZERO.

Report Abusive | Report SPAM

User Profile
Hide User Posts

arpurchase

#150 Posted : 24 September 2012 21:02:00

Rank: Super-Elite

Groups: Registered

Joined: 27/09/2011
Posts: 15,196
Points: 45,687
Location: Dudley

Nice work Mo and i like how you overcame the planking issue
regards
Andy Cool

Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .

Report Abusive | Report SPAM

User Profile
Hide User Posts

petpole

#151 Posted : 25 September 2012 19:07:33

Rank: Vice-Master

Groups: Registered

Joined: 20/10/2010
Posts: 511
Points: 1,459
Location: Loughborough

Looking stunning now mo, the oak staining really brings out the detailing in the deck, all that hard work has really paid off.
peter
BigGrin

Builds in progress: HMS Victory.HMS Surprise.
Completed builds: Revell London Bus 1/24.
Builds to do:Sovereign of the seas, Hms Albion.

Report Abusive | Report SPAM

User Profile
Hide User Posts

alantait

#152 Posted : 25 September 2012 19:11:11

Rank: Pro

Groups: Registered

Joined: 17/03/2010
Posts: 301
Points: 941
Location: fife

hi mo, the more i see of your build, the more i want this to be my next project, great work

current builds

victory,endeavour,thermoplye,constitution

Report Abusive | Report SPAM

User Profile
Hide User Posts

#153 Posted : 26 September 2012 22:26:26

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

Thanks lads for all your posts, Its nice to know people are reading your posts. I am finding it quite difficult ( For a newbie ) knowing exactly what to do, The instructions are very vague, I see the Victory and Soverign builds have a official diary to follow, wish there was one for the Surprise, As and when I get to the masts and rigging I will just have to refer to these builds,I have looked at the rigging drawings, oh boy what a challange.

Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

#154 Posted : 26 September 2012 22:42:57

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

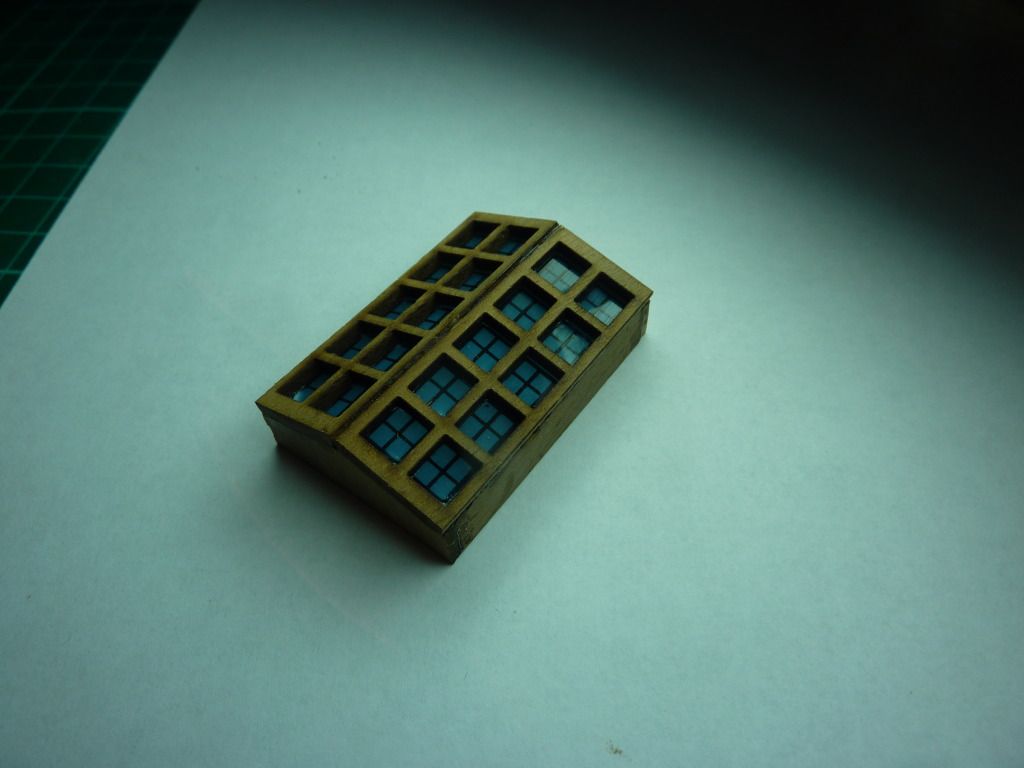

I am doing things a bit out of sequence, but its the way I feel sometimes, looking for a easier task to do, I have now decieded to make the furniture for the top deck, The first thing I am going to do is make the ( dont even know what you call it )see pictures.

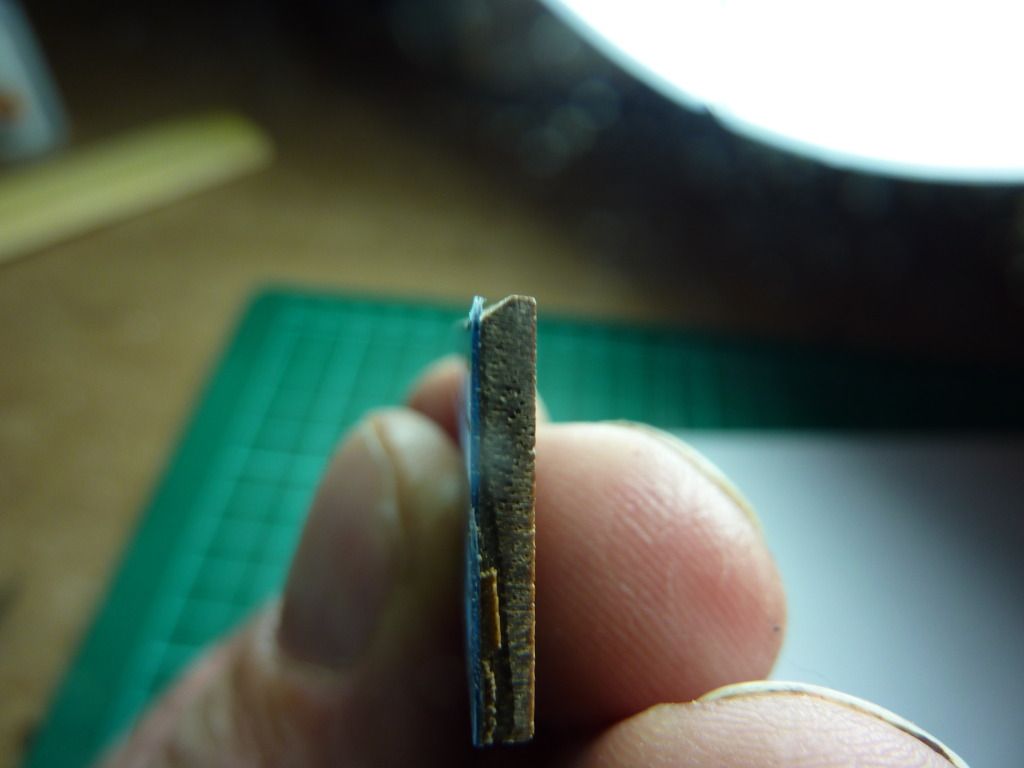

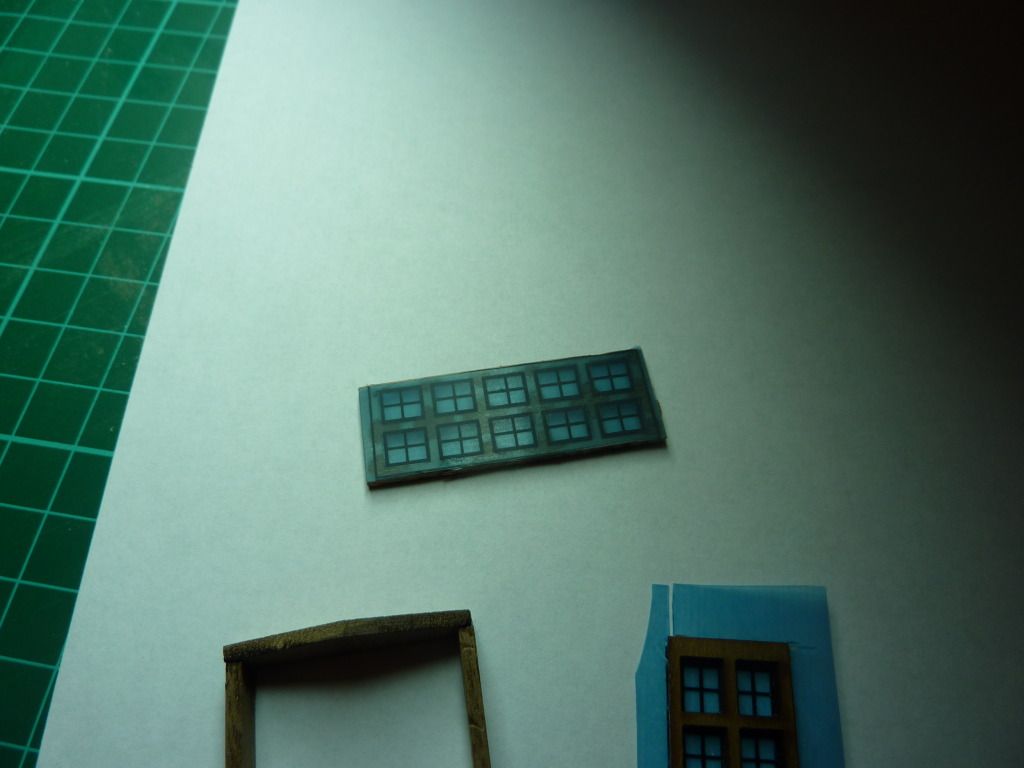

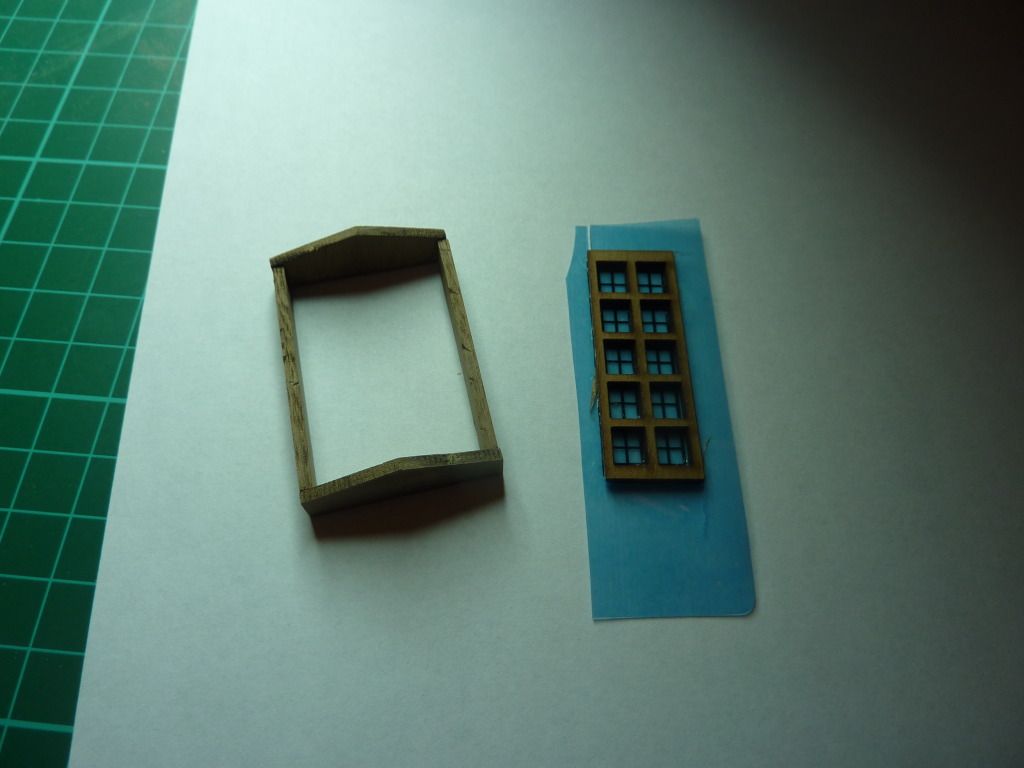

I glued the two ends to the two sides, with super glue, The roof panels with the windows in it, I gave two of the long edges a back bevel, So as when they are glued in place, there will be no gap at the ridge, I also super glued the blue plastic window material to the roof panels.

I then glued them all together, once dry I sanded all the faces to get a good finish, I will give all the walnut a coat of clear varnish at a later date, before fixing to the deck.

Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

#155 Posted : 26 September 2012 22:53:17

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

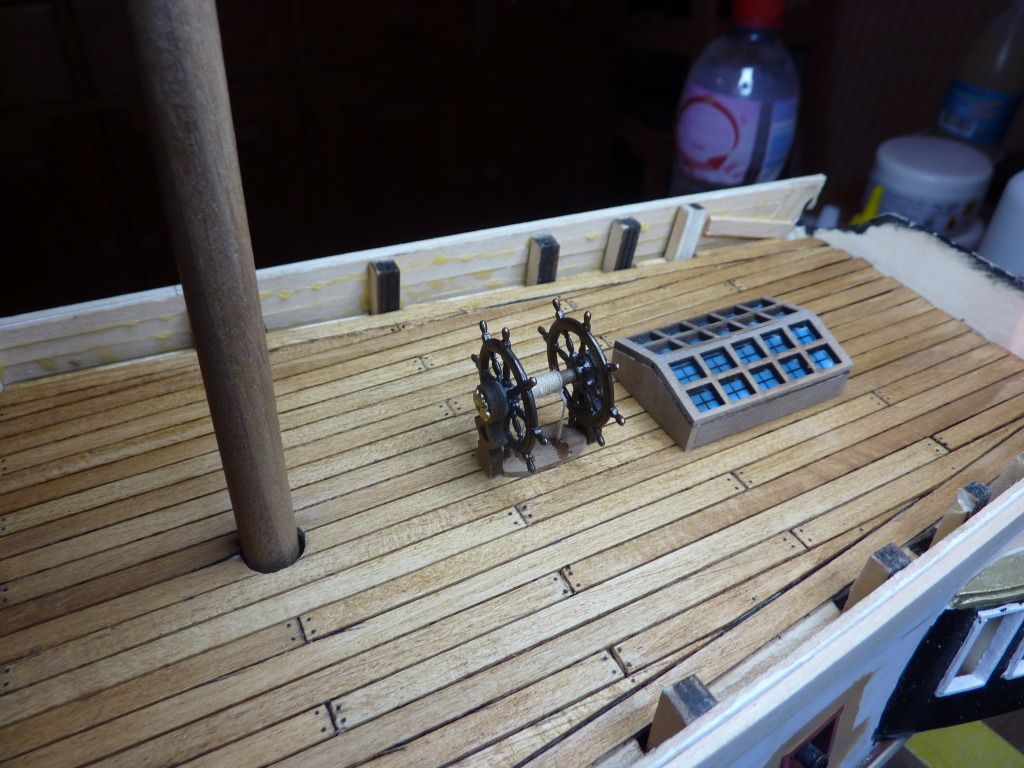

It was then on to the ships wheels.

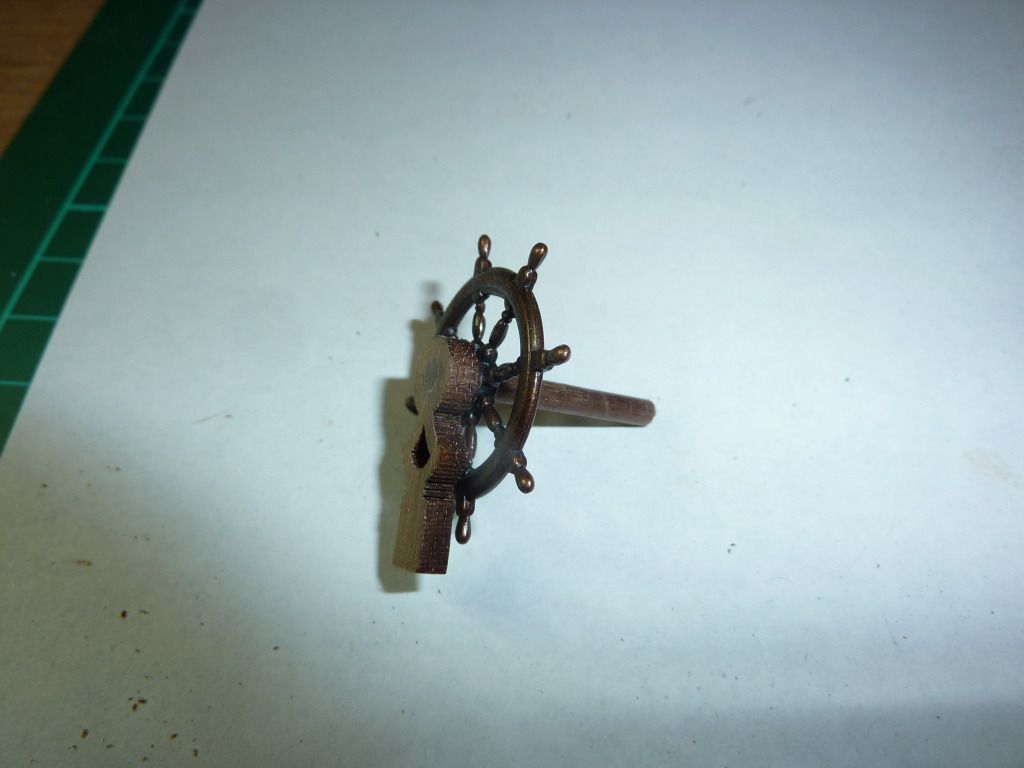

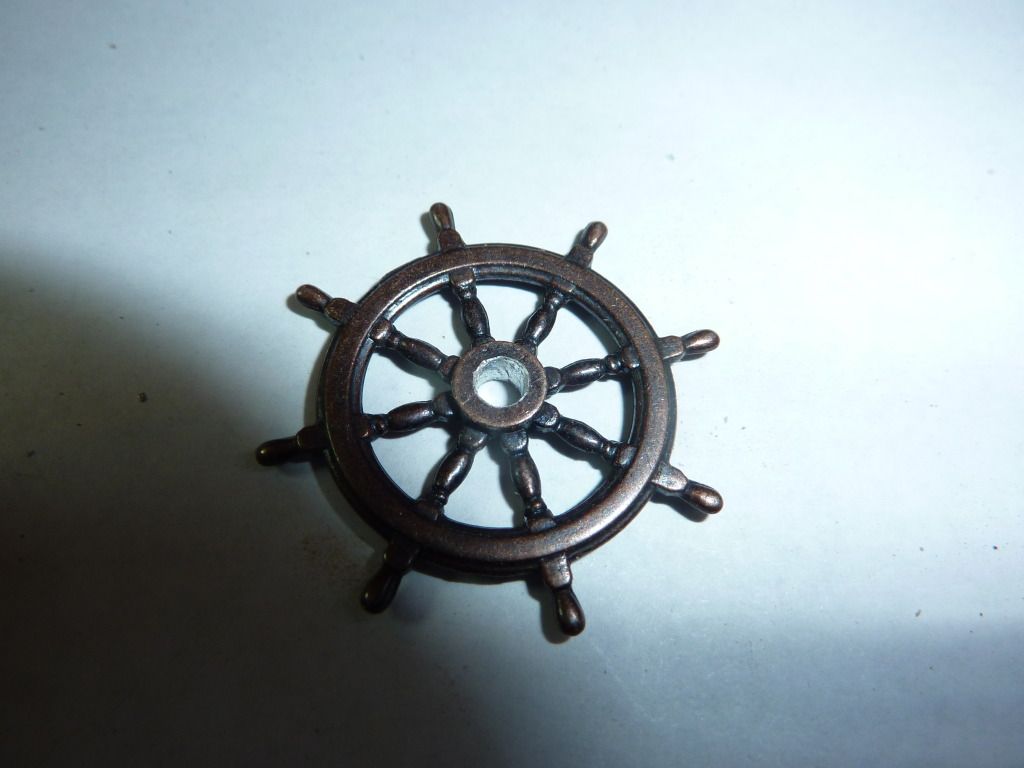

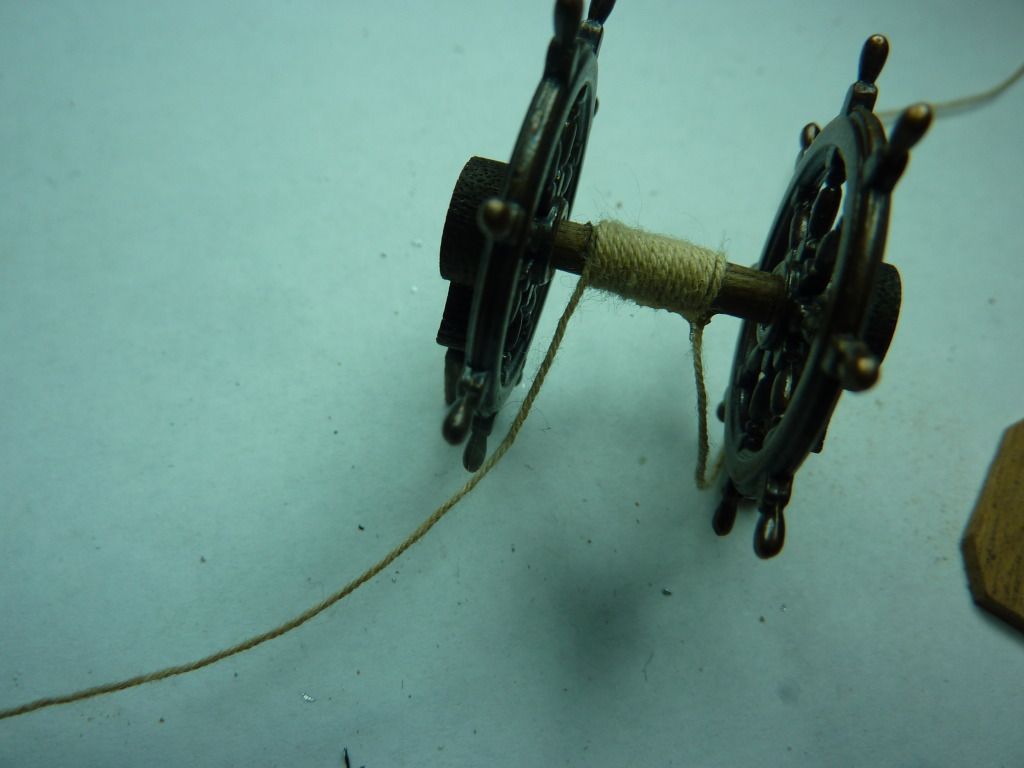

I did not follow the instructions here, I just did my own thing. I re bored the holes in the wheels out to 3mm, I then used a 3 mm walnut dowel and glued the dowel and one of the end in place.

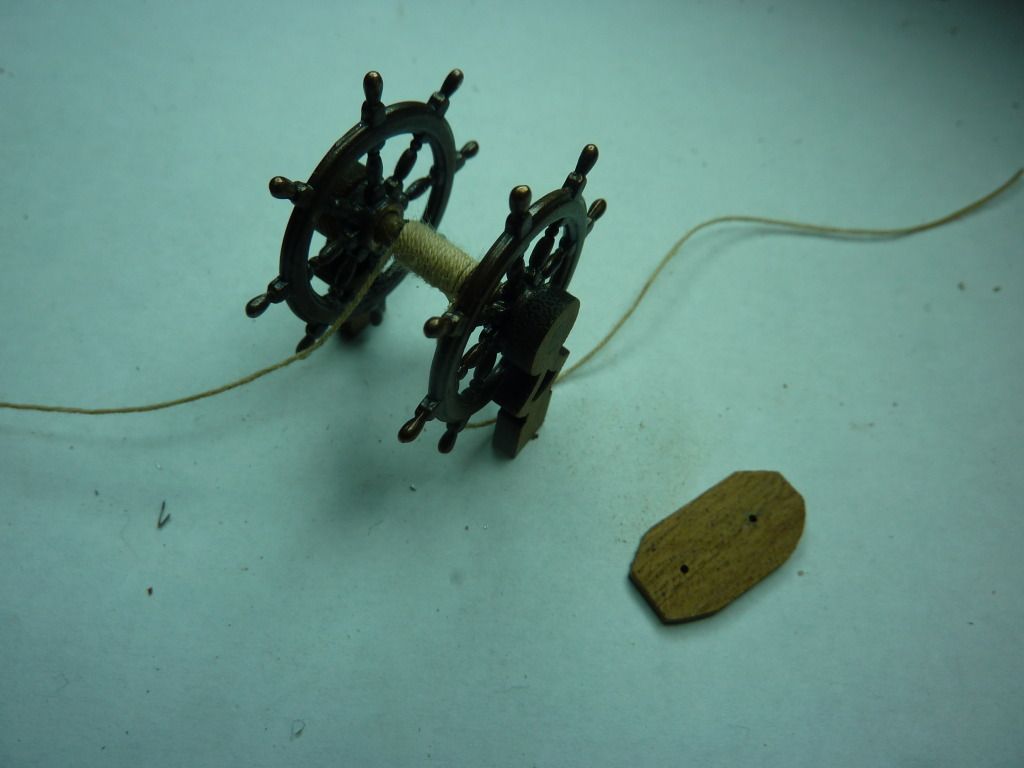

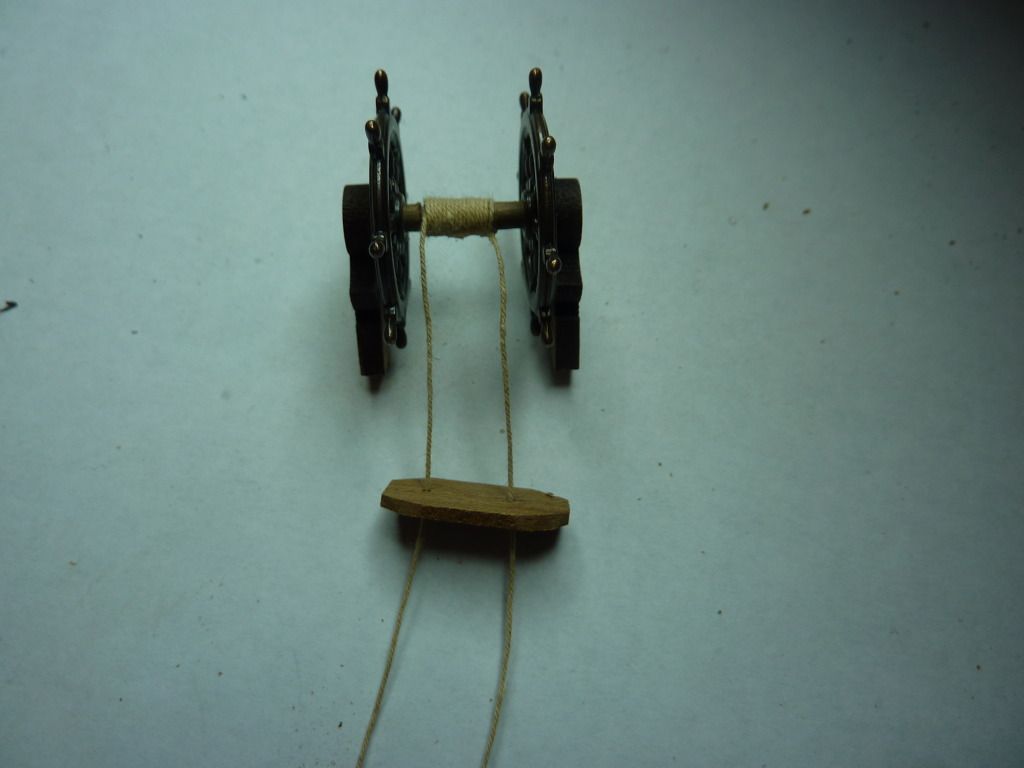

I then glued the other end in place along with the wheel, trying to keep the handles of the two wheels in line. I also made a piece of timber for the base plate, which I bored 2 holes in to take the rope for the rudder.

Again well chuffed how it is all turning out.

Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

petpole

#156 Posted : 26 September 2012 23:03:45

Rank: Vice-Master

Groups: Registered

Joined: 20/10/2010
Posts: 511
Points: 1,459
Location: Loughborough

Looking very good there Mo, the only thing I could advise is be carefull how much of the deck furniture you fit as it will impact when fitting the deck guns give yourself plenty of working room as this is where I am on my build, but it really is coming on now, hope we get to the rigging at the same time need all the help i can get lol.
Great work so far.
BigGrin

Builds in progress: HMS Victory.HMS Surprise.
Completed builds: Revell London Bus 1/24.
Builds to do:Sovereign of the seas, Hms Albion.

Report Abusive | Report SPAM

User Profile
Hide User Posts

karl1113

#157 Posted : 26 September 2012 23:09:50

Rank: Super-Elite

Groups: Registered

Joined: 04/04/2010
Posts: 3,955
Points: 11,809
Location: uk

hi mo,is the word skylight?? look great coming on a treat Cool

Current builds: SotS, USS Consitution, San Felipe, D51 loco, HMS Surprise, RB7, Arab Dhow, Jotika HMS Victory
Completed builds: HMS Pickel, Thermopylae, Mississipi river boat, Mary Rose, Cutty Sark, San Francisco II, HMS Victory x5, Titanic Lifeboat, Panart HMS Victory Launch, Hachette Titanic, Virginia Schooner, Endeavour Longboat.

http://www.model-space.com/gb/

WWW	Report Abusive \| Report SPAM

User Profile
Hide User Posts

#158 Posted : 26 September 2012 23:13:18

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

Peter, I am only making the bits for the top deck, I am not fitting them in place, I still have a lot to do on the lower deck, the top deck isn't fixed yet.

Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

#159 Posted : 26 September 2012 23:15:03

Rank: Vice-Master

Groups: Registered

Joined: 09/02/2012
Posts: 569
Points: 1,675
Location: Scotland

And thanks Karl, A skylight it is.

Mo

Report Abusive | Report SPAM

User Profile
Show User Posts

mark 2

#160 Posted : 27 September 2012 08:11:54

Rank: Vice-Master

Groups: Registered

Joined: 13/02/2012
Posts: 651
Points: 1,903
Location: croydon

Hi Mo.
Your serprise is fantastic and your top deck is great also love what you have done with the ships wheel Drool

.
Best regards.
Mark
