Martyn Ingram wrote: Hi Alan sorry to hear about your probs Just got back from carp fishing in France and have iooked at mine the mast hole is .5mm out the hatch is spot on rgd Martyn Thanks Martyn, we get these problems from time to time but the important thing is what we do to find the solutions... At least with yours a .5mm deviation will be easy to fix and won't be noticeable....  Thanks again and regards Alan
|
|
|
|
|

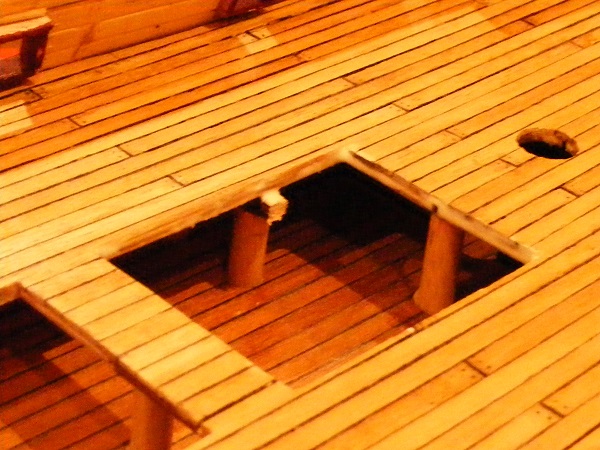

Well while waiting for the replacement decks to arrive I had a look to see what I would do next.. Settled on starting work on the hatch gratings and decided to make some changes here.. First thing I did was to cut away the deck support beam but left a small ear either side, filed the ears down to ensure the gratings would sit on top without ending up above deck level... .. This also helped to ensure the grating when being fitted wouldn't fall through the hatch hole... Gandale attached the following image(s):
|
|
|
|
|

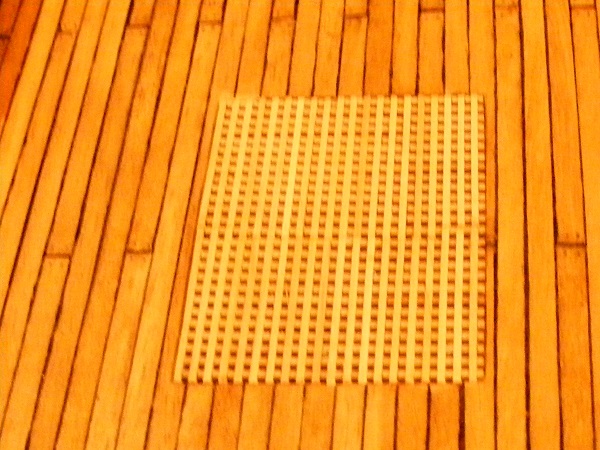

Replaced the 2mm grating kit supplied with 1mm, took a total of 3 kits to complete one hatchway... Tried to ensure most of the joints would actually be on the underside and not visible... .. Once complete glued and fitted into place ensuring a snug fit... Gandale attached the following image(s):
|
|
|
|
|
Took some 1 x 3mm birchwood strips and gave them 2 coats of walnut stain, when dried cut to size to surround the gratings. Cut the corner joints at 45 degrees and test fitted, used very fine sandpaper to ensure nice joints.. .. During the test fit thought the hatches looked large so also decided to fit a cross member again in walnut, this also hid the couple of joints in the grating strips that could be seen... Once happy everything glued in place and am really happy with the results... .. Will make a start on the other hatch tomorrow.... Happy building all Regards Alan Gandale attached the following image(s):
|
|
|
 Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Lovely work Alan Looks great,notching the central rib into the frame is a nice touch Kind Regards Nigel
|
|
|
|
|
NMBROOK wrote:Lovely work Alan Looks great,notching the central rib into the frame is a nice touch Kind Regards Nigel Thanks Nigel, notching the central rib into the frame just looked like the right thing to do, looked odd without and it just sitting flush.... ... Very pleased with it, all it needs now is a couple of coats of varnish.... Regards Alan
|
|
|
