Hi Andy. Speeding along nicely. looking realy good Andy keep the pics coming Ian  Current builds.Hachettes build the bismark,HMS Victory, HMS Hood.
Finished Builds Corel HMS Victory cross section.
|
|
|
|
|
Hi Ian thanks for looking in and your comments hopefully should crack on with the bow and start adding some more deck features this W/E.  Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|

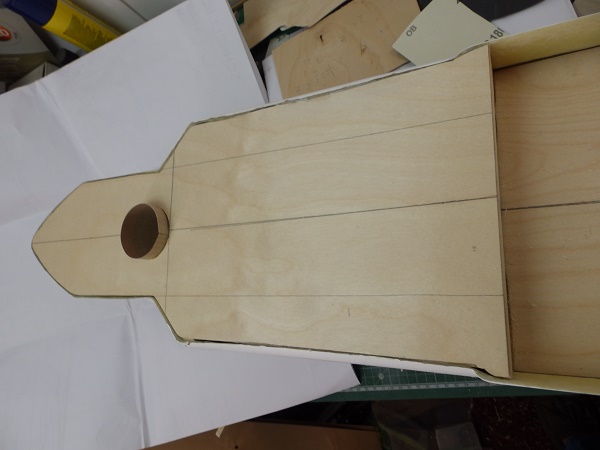

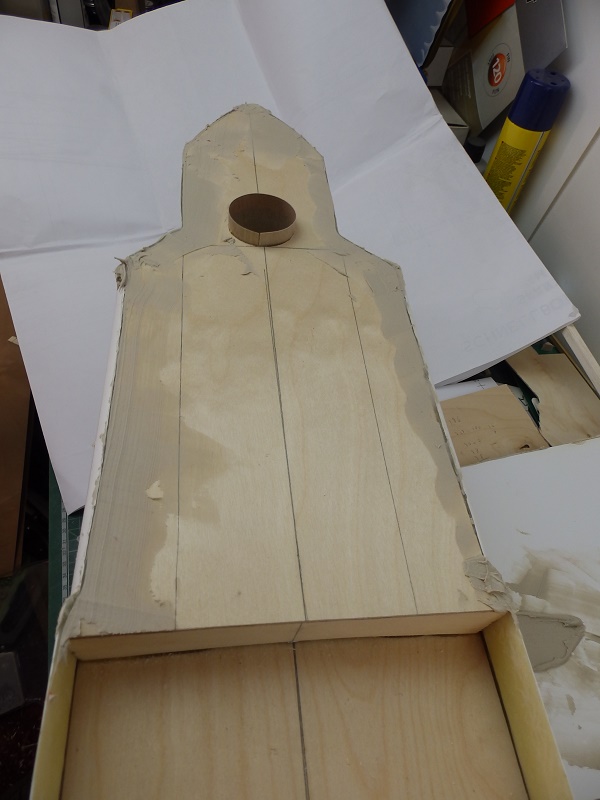

Hi All More done, the bow gun bucket was made from 3 pieces of 5 mm ply and some styrene pillars with a 1/32 ply liner this was then attached to the deck, the ply liner is proud because another deck section is to go on top of the central bow deck this extra will be trimed back after its attached. Braces were added to the hull where the bow deck will be attached and then the deck was fixed in place with epoxy resin. Once the epoxy had set the deck edge gaps were filled with filler and now awaits a good sanding before the central deck is added. More soon. Regards Andy arpurchase attached the following image(s): Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
Rank: Super-Elite  Groups: Registered
Joined: 27/01/2014 Posts: 5,060 Points: 14,980
|
This is coming along quite nicely, I'm really enjoying this build
|
|
|
 Rank: Elite Groups: Registered
Joined: 13/02/2011 Posts: 2,239 Points: 6,837 Location: East Sussex
|
Andy, Starting to shape up now and we can see where you are going, but still a lot of work on this section alone. Regards Trev. Work in progress: Tombstone (Scratch) - San Francisco 2. -The Mayflower ( scratch by plan).
OcCre- Santa-Maria (Kit).
|
|
|
|
|
Hi both thanks for your comments and looking in Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
Rank: Super-Elite   Groups: Registered
Joined: 31/05/2010 Posts: 5,679 Points: 17,011 Location: Wiltshire
|
Very inovative building with the gun basket. Its movng along at a good pace now. Happy Modelling
BUILDING: Hachette Spitfire Mk 1A, Constructo Mayflower
SUBSCRIPTION COMPLETE (Awaiting building): USS Constitution, Sovereign of the Seas, 1:200 Bismarck (Hachette)
COMPLETED: Porsche 911, E-Type Jaguar, Lam Countach
|
|
|
|
|
Hi Tony thanks for your comments and looking in, still have to work out how im going to build the skullcap Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|

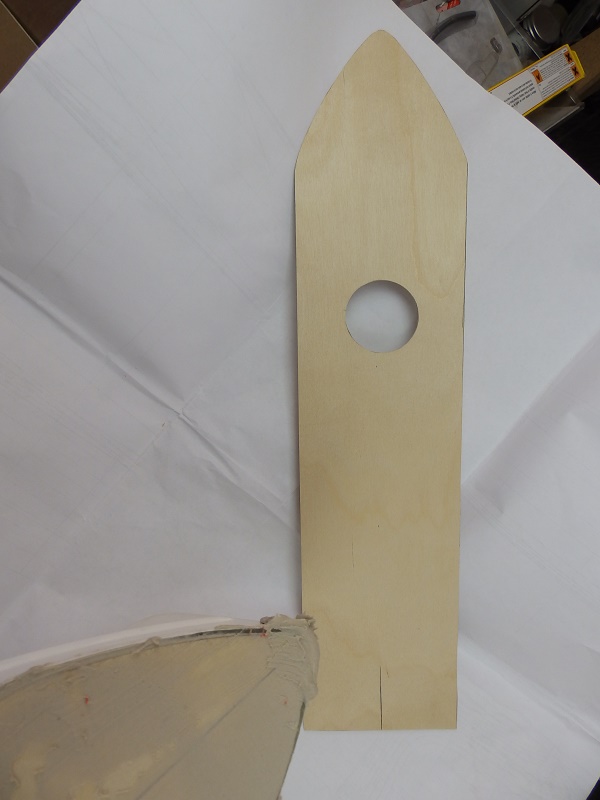

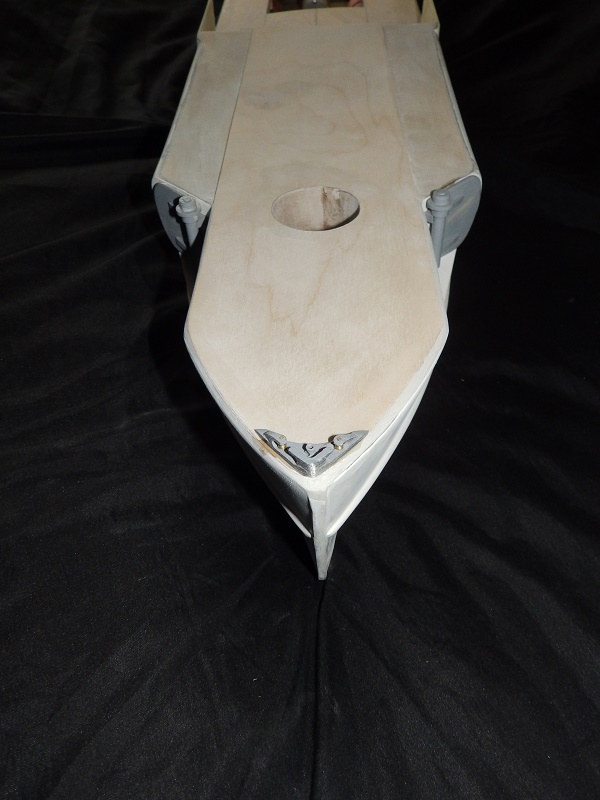

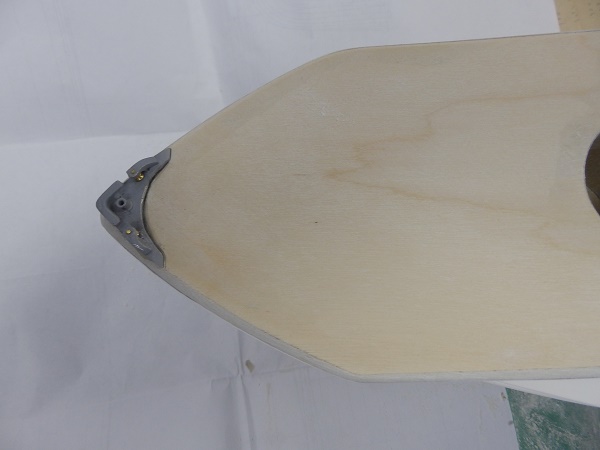

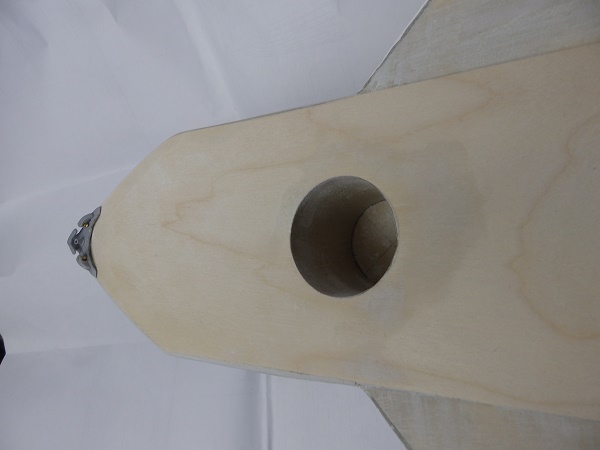

Hi All The central bow section has now been glued in place and then filler was used from the torpedo doors forward so when it was sanded back the deck and hull blend together. The gun bucket was trimmed back and a small amount of filler used around the edges to tidy it up. I couldnt resist adding some fittings so added the bow fairlead and the torpedo doors. Next its the skullcap and bridge and have started by cutting out some templates. More soon. Regards Andy arpurchase attached the following image(s): Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
Rank: Elite Groups: Registered
Joined: 13/02/2011 Posts: 2,239 Points: 6,837 Location: East Sussex
|
Andy, Just had look while working on the Spit looks good and with the door fittings I can see we are in for a treat. Must crack on. Trev. Work in progress: Tombstone (Scratch) - San Francisco 2. -The Mayflower ( scratch by plan).
OcCre- Santa-Maria (Kit).
|
|
|
Rank: Super-Elite  Groups: Registered, Forum Support Team, Administrators, Global Forum Support Team, Moderator, Official Builds Joined: 09/11/2012 Posts: 8,520 Points: 24,651 Location: East midlands
|
That`s looking good,  . WTG Andy, really taking on some shape now. Regards delboy271155 (Derek) COME BACK GUY FAWKES "YOUR COUNTRY NEEDS YOU"
|
|
|
|
|
Now this is taking shape Andy, very well described too..... great work....  Regards Alan
|
|
|
|
|
Thanks everyone for looking in and your replys Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
Rank: Super-Elite Groups: Registered
Joined: 31/05/2010 Posts: 5,679 Points: 17,011 Location: Wiltshire
|
The detail parts look good. Cannot wait to see the armament as its bound to be very detailed and should look brilliant when in place. Happy Modelling
BUILDING: Hachette Spitfire Mk 1A, Constructo Mayflower
SUBSCRIPTION COMPLETE (Awaiting building): USS Constitution, Sovereign of the Seas, 1:200 Bismarck (Hachette)
COMPLETED: Porsche 911, E-Type Jaguar, Lam Countach
|
|
|
|
|
Hi Tony Thanks for looking in the fittings kit although not cheap it has some quality pieces in it as you will soon see. Regards Andy Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|

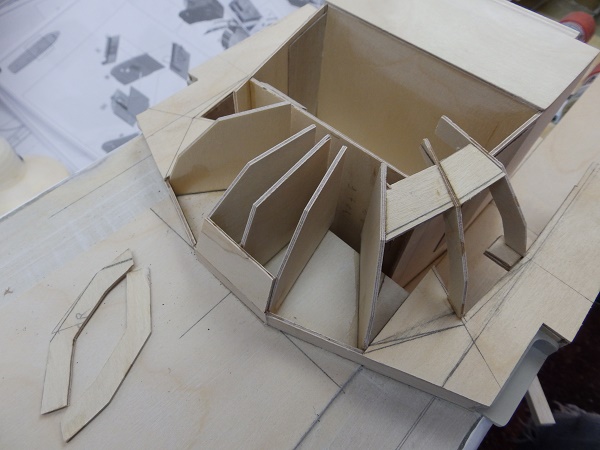

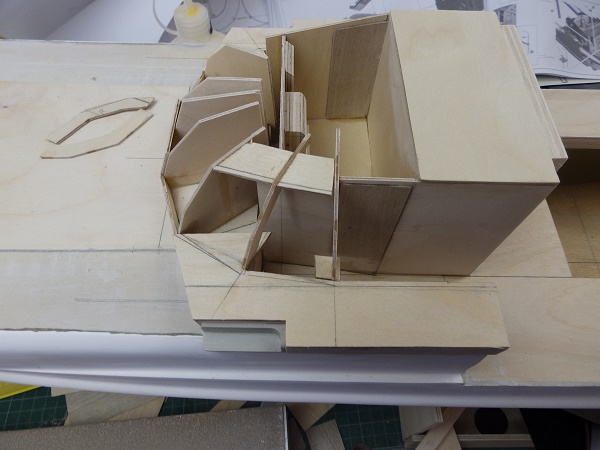

Hi All Started on the scratch build of the skullcap by fixing the first 5 formers in place . Next the bottom row of plates were added the two side pieces go across to the hull sides and back to aid location the running light housings were fixed in place and then the hull sides were built up to match, the inner hull sides were also lined with 1/32 ply to give a backing for the built up parts. The skullcap side decks were then added this will enable the fitting of the final four templates. The first facet has been fitted to the front of the skull cap but each one will have to be carefully sized to fit . More soon. Regards Andy arpurchase attached the following image(s): Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|

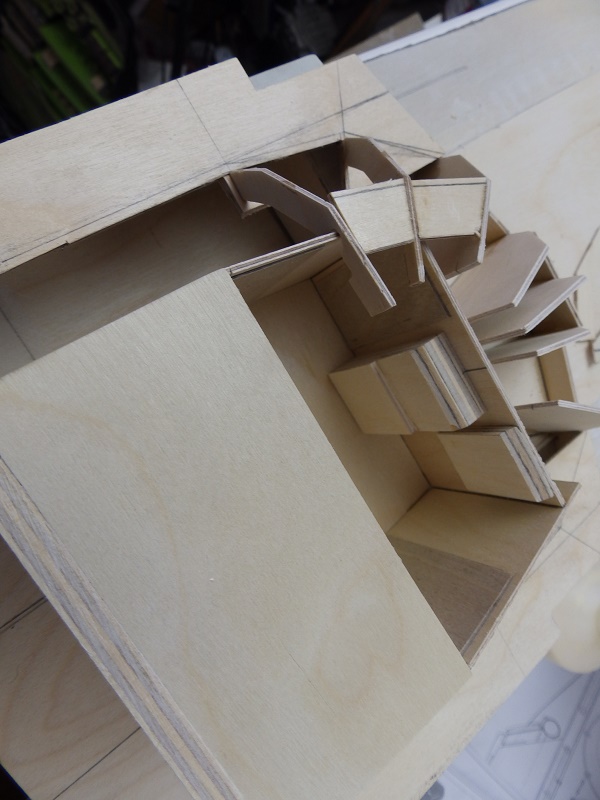

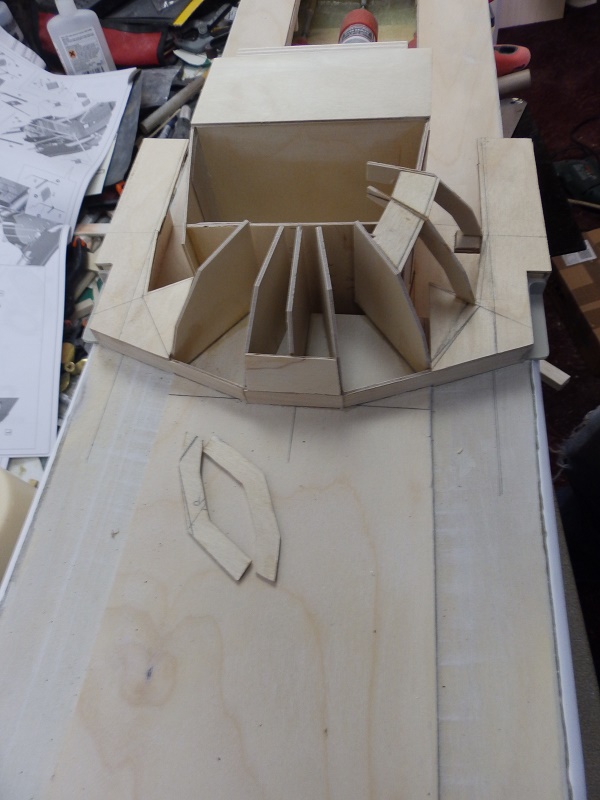

Hi All More progress on the bridge area. After measuring and trimming back the bridge side steps the main upper open bridge was measured up and constructed from 2 mm ply some scratch built bridge fittings were added along with some dummy doors and the rear box attached, still more to add here like handles and floor duck boards along with a raised portion around the forward central binocular area. Once the central bridge area was fixed in place I could then proceed with the sides of the skull cap formers and managed to complete one side just the other side to do now and then the facets can start going on. More soon. Regards Andy arpurchase attached the following image(s): Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
|
Fantastic work, just had a catch up and this is going to be something special!!
|
|
|
Rank: Super-Elite Groups: Registered
Joined: 27/01/2014 Posts: 5,060 Points: 14,980
|
Wow, you're really moving along now looking good Watching eagerly for your next update
|
|
|
|
|
Thanks for looking in both of you and your comments Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .
|
|
|
|
