 Rank: Pro Groups: Registered
Joined: 24/04/2010 Posts: 120 Points: 327
|
hi guys i wonder if one of you can help me, it says in the mag to sand part 34 to follow the line of the stern post, has part 34 got to be sanded flush with the stern, if this is the case then that negates the use of part 34 surely. i cant tell by the pictures because they dont show it clearly but if that is the case part 34 will be sanded to a wafer, would be grateful for any help.
thanks
|
|
|
 Rank: Super-Elite        Groups: Registered
Joined: 04/04/2010 Posts: 3,955 Points: 11,809 Location: uk
|
wallace I found the same thing,what it meant I think,that it runs parallel with stern post not flush. Current builds: SotS, USS Consitution, San Felipe, D51 loco, HMS Surprise, RB7, Arab Dhow, Jotika HMS Victory Completed builds: HMS Pickel, Thermopylae, Mississipi river boat, Mary Rose, Cutty Sark, San Francisco II, HMS Victory x5, Titanic Lifeboat, Panart HMS Victory Launch, Hachette Titanic, Virginia Schooner, Endeavour Longboat. http://www.model-space.com/gb/
|
|
|
Rank: Pro Groups: Registered
Joined: 24/04/2010 Posts: 120 Points: 327
|
is the stern post the rear of the keel which is between the two parts 34 karl, as i am not familiar with navy terminology, (im just an ex squaddie) AND A CONFUSED ONE AT THAT.
CHEERS MATE
|
|
|
 Rank: Vice-Master   Groups: Registered
Joined: 23/03/2010 Posts: 507 Points: 1,571
|

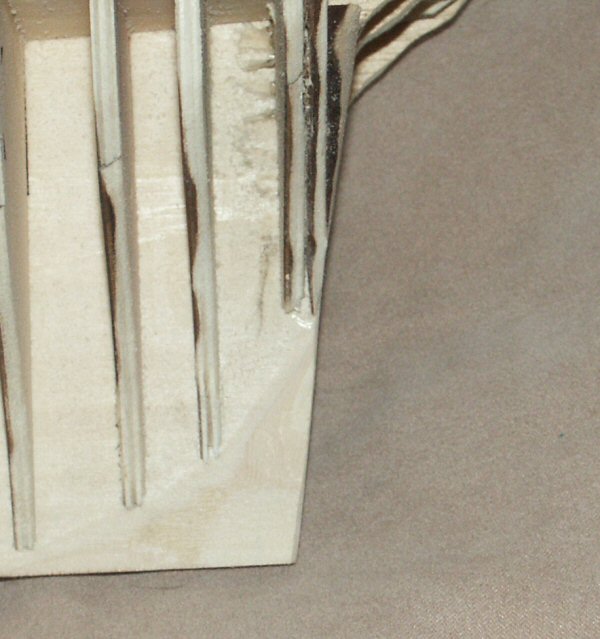

The stern post is not parallel to the ribs so part 34 has to be sanded back to the keel willz attached the following image(s):
|
|
|
Rank: Vice-Master Groups: Registered
Joined: 23/03/2010 Posts: 507 Points: 1,571
|
Part 34 with the stern post in the picture shows an almost straight line, the base of part 34 must be level with the stern post and feather slightly away from it further up, this is my interpretation of it,
|
|
|
Rank: Vice-Master Groups: Registered
Joined: 20/04/2010 Posts: 545 Points: 1,536 Location: lossiemouth
|
the stern post is the back end of the false keel yes you sand back to it that why you have a 3 sandwitch section look at TOMICS PICTURES AGAIN THE BOTTOM OF 34 DISAPIERS ,some time down the line you be fitting the true stern post to which the rudder is bolted to part of the main keel
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Got it in one Willie
|
|
|
Rank: Pro Groups: Registered
Joined: 24/04/2010 Posts: 120 Points: 327
|
Thanks very much guys, much appreciated.
|
|
|
|
