 Rank: Pro   Groups: Registered
Joined: 29/03/2010 Posts: 202 Points: 569 Location: sunderland
|

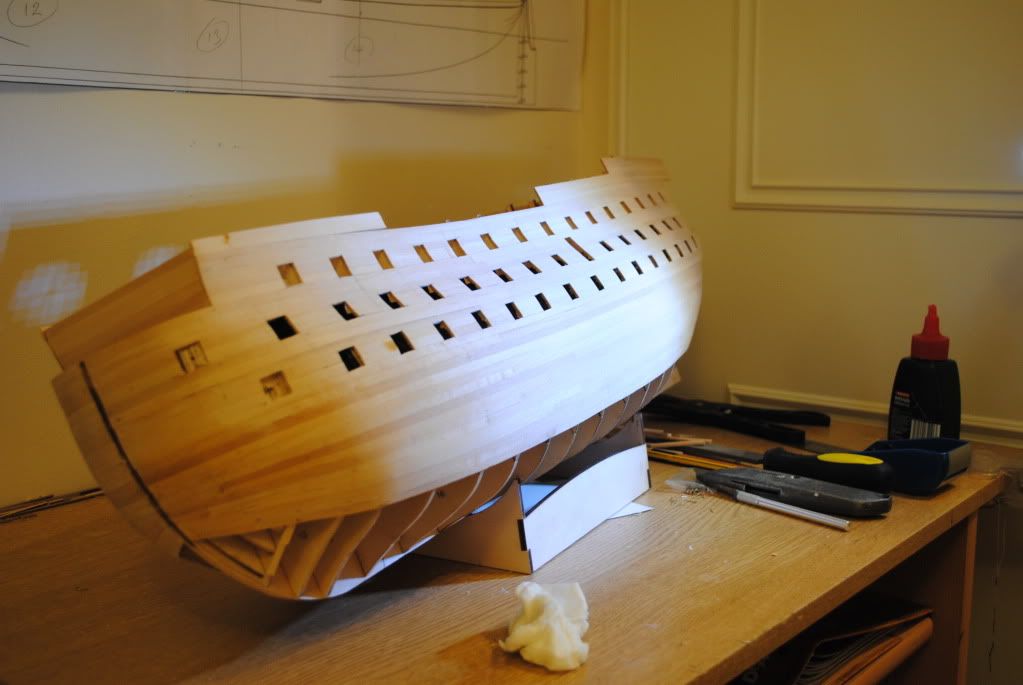

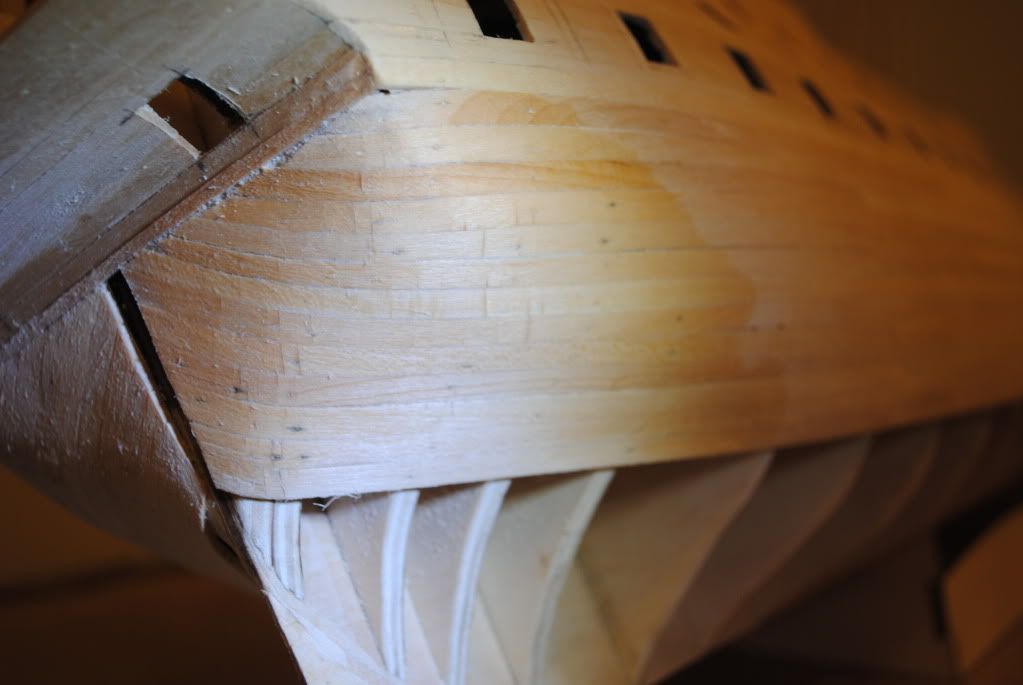

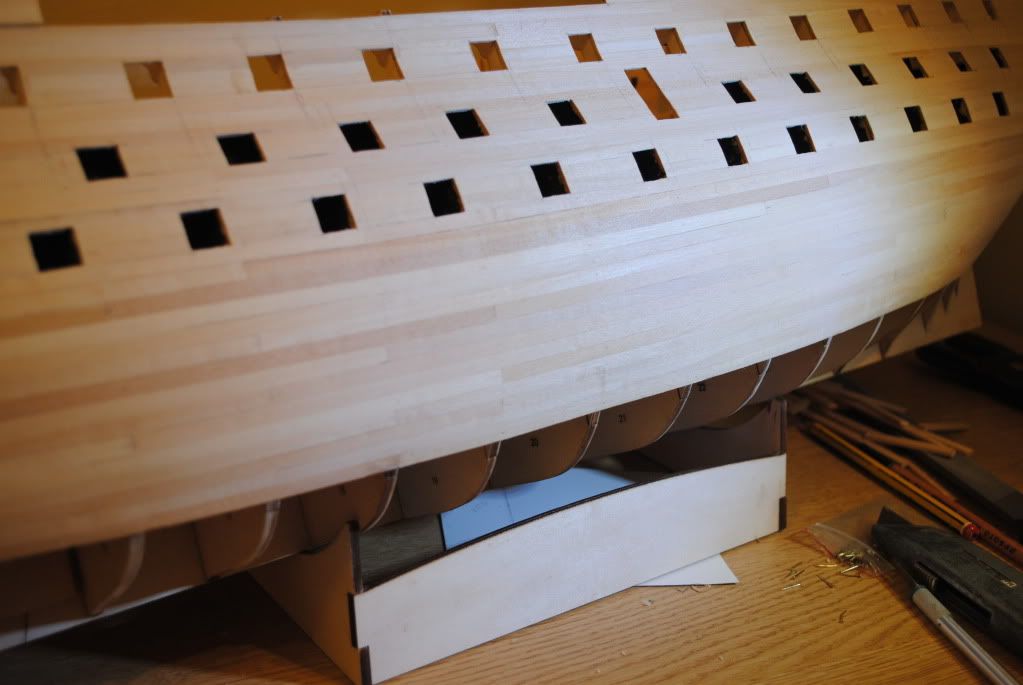

I'm a bit further ahead than Tomick with the planking due to the extra delivery of planking, I've used all the extra planking and sanded it down, from a distance it looks fine, but looking closer there are lots of 'cracks' which appear to have been caused by the 'plank bender' (suplied with the kit), all my planks were shaped and soaked before bending, I may have over done the sanding but the sections where I did not use the p/bender are fine. I'm not too bothered because I'm second planking and it won't be visible, I just thought that anyone varnishing this planking may be diapointed with the finish and could need an alternative way of bending, thinking back I could probably have managed without the bender! Here's some pic's so you can see what I mean, but one question before I go on second planking, what's the best glue to use? (vineer is 1/2 x 4mm).
|
|
|
Rank: Pro  Groups: Registered
Joined: 29/03/2010 Posts: 190 Points: 512 Location: Lytham UK
|
Hi Jeff.. Thanks for the planking detail. I would like to plank the hull before moving on to any other tasks. It looks like the gun port framing is under way next week, but i am still thinking of staining the wood before framing. Regards, Ian Ian Builds in progress: E-type, HMS Victory, HMS Endeavour, HMS Soverein of the Seas Wish list: Bentley Blower http://forum.model-space...spx?g=posts&m=30439
http://mxpublishing.co.uk/engine/shop/product/9781780920184/Hunt+for+the+Blower+Bentley
|
|
|
Rank: Pro  Groups: Registered
Joined: 17/03/2010 Posts: 301 Points: 941 Location: fife
|
wow, if i get anywhere near that i will be more than happy, mine will probably neak like a sieve  current builds
victory,endeavour,thermoplye,constitution
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
I've used a plank bender throughout my build and found no such problem.
|
|
|
 Rank: Elite   Groups: Unapproved
Joined: 24/05/2010 Posts: 1,761 Points: 5,351 Location: London & Greece
|
What does "plank bender supplied with the kit" mean? I haven't received one, I don't think.
John
|
|
|
 Rank: Super-Elite     Groups: Registered
Joined: 04/04/2010 Posts: 3,955 Points: 11,809 Location: uk
|
jeff averre ,hi,did you reverse the blade in the bender?using the blunt end?I used the sharp end and I kept snipping the plank into pieces,when I used the blunt side all was ok. Current builds: SotS, USS Consitution, San Felipe, D51 loco, HMS Surprise, RB7, Arab Dhow, Jotika HMS Victory Completed builds: HMS Pickel, Thermopylae, Mississipi river boat, Mary Rose, Cutty Sark, San Francisco II, HMS Victory x5, Titanic Lifeboat, Panart HMS Victory Launch, Hachette Titanic, Virginia Schooner, Endeavour Longboat. http://www.model-space.com/gb/
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Correct its the blunt edge for bending.
z8000783 - Those who subsrcibed to the series received a free tool kit which includes a nip plank bender.
|
|
|
Rank: Elite Groups: Unapproved
Joined: 24/05/2010 Posts: 1,761 Points: 5,351 Location: London & Greece
|
Tomick wrote:Those who subsrcibed to the series received a free tool kit which includes a nip plank bender. Oh you mean that thing that looks like a pair of secateurs? Is that going to be necessary rather than using steam? I didn't want to use pins let along that. John
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Use which ever method suits you best.
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
z8000783 wrote:What does "plank bender supplied with the kit" mean? I haven't received one, I don't think.

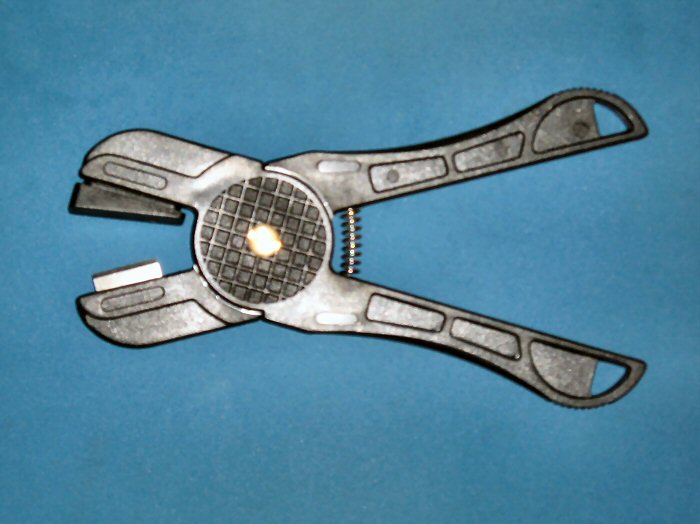

John This John! Son of Bulwark attached the following image(s):
|
|
|
Rank: Elite Groups: Unapproved
Joined: 24/05/2010 Posts: 1,761 Points: 5,351 Location: London & Greece
|
Tomick wrote:Use which ever method suits you best. Tomick, being a novice I am not in a position to know what suits me best yet, which is why the advice here is so useful. So if someone manages to bend the planks around the bow or the stern without it then that's great to hear about, but if everyone says it can't be done, especially you, then I will take note of that. John
|
|
|
Rank: Pro Groups: Registered
Joined: 08/05/2010 Posts: 236 Points: 808 Location: Manchester
|
z8000783 wrote:Tomick wrote:Those who subsrcibed to the series received a free tool kit which includes a nip plank bender. Oh you mean that thing that looks like a pair of secateurs? Is that going to be necessary rather than using steam? I didn't want to use pins let along that. John Im no where near planking at the mo. But I think the idea is basically the same as how we installed the gun support lengths on the decks. The 'nip' will be on the inside of the plank i think. Im still gonna use hot soaks to help with the bend tho. If you dont want to leave marks then i would clamp them while the glue dries. Can anyone help me on this one tho? When ive soaked the plank and nipped it to the right bend. Should i let it dry out thoroughly before tapering with sandpaper and gluing it to the frame. Will the drying process straighten out the plank? If so, should i taper it at that dryed stage, then soak it again, bend it again then glue it to frame slightly damp? Ive never sanded wood when its damp. Im still panicked by all this lol Cheerz, Piot i dont know what weapons will be used in ww3 but ww4 will be sticks and stones.
|
|
|
Rank: Pro Groups: Registered
Joined: 08/05/2010 Posts: 236 Points: 808 Location: Manchester
|
lol should read all posts before posting myself. neh-mind.  i dont know what weapons will be used in ww3 but ww4 will be sticks and stones.
|
|
|
 Rank: Master   Groups: Registered
Joined: 08/07/2010 Posts: 1,036 Points: 3,086 Location: Thetford, Norfolk, UK
|
Hi Jeff,
I hope my planking looks as good as yours when I get that far into the build. From my inexperienced eye, I don't think you've got much to worry about Jeff, I think it looks amazing.
Daffy09
|
|
|
Rank: Master Groups: Registered
Joined: 08/07/2010 Posts: 1,036 Points: 3,086 Location: Thetford, Norfolk, UK
|
Hello Piot007
I think I can help you a little with those questions although a look at Zeptrader's threads on the subject will help you a lot.
I read somewhere that when the wood is wet it swells so its best to leave it some sort of former to dry out so that when it is dry, it;s shape will be retained, but again a visit to Zeptrader will sort you out. I would assume that if the planks swell when wet, they will shrink a little as they dry out. A former can be a used ice-cream lid or a flat piece of wood with pegs or nails that describe the shape you want to achieve.
Hope that helps a little, I'm pretty inexperienced at this myself and a lot of the skills I have gained have been through some of the valuable information given on this forum, Tomick, Zeptrader, Magpie and Lonestar Spirit to name but a few.
Happy building
Daffy09
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Just to add in at his point, I'm actually needing to bend one plank now, Ive soaked it in hot water for about 20mins, then boil the kettle to give it another soak (hot) just a few seconds later (make sure you dont burn your hands) is to take the very supple plank and offer it up to the area on the ship you want to plank, using what ever method you have clip and hold the plank on the formers overnight...this will then be dry and keep its shape.
I'm doing a step by step guide (pics) of laying one plank, if it helps those new to this.
|
|
|
Rank: Pro  Groups: Registered
Joined: 22/03/2010 Posts: 369 Points: 1,150 Location: Broadstairs
|
I have managed to complete the bow planking using the sharp side of the plank bender and a lot of patience. I found that just creasing the wood very closely helps achieve the desired curve. Now Tomick says that we should be using the blunt side of the blade. Will give it a try, that's if I can get the blade our after all the crimping.???  TIS
|
|
|
Rank: Pro Groups: Registered
Joined: 22/03/2010 Posts: 369 Points: 1,150 Location: Broadstairs
|
jeff averre wrote:I'm a bit further ahead than Tomick with the planking due to the extra delivery of planking, I've used all the extra planking and sanded it down, from a distance it looks fine, but looking closer there are lots of 'cracks' which appear to have been caused by the 'plank bender' (suplied with the kit), all my planks were shaped and soaked before bending, I may have over done the sanding but the sections where I did not use the p/bender are fine. I'm not too bothered because I'm second planking and it won't be visible, I just thought that anyone varnishing this planking may be diapointed with the finish and could need an alternative way of bending, thinking back I could probably have managed without the bender! Here's some pic's so you can see what I mean, but one question before I go on second planking, what's the best glue to use? (vineer is 1/2 x 4mm). It's is possible that the wood was allowed to dry out too quickly? just a thought. TIS
|
|
|
Rank: Pro Groups: Joined: 24/08/2009 Posts: 48,827 Points: -13,348
|
Tiswas wrote:I have managed to complete the bow planking using the sharp side of the plank bender and a lot of patience. I found that just creasing the wood very closely helps achieve the desired curve. Now Tomick says that we should be using the blunt side of the blade. Will give it a try, that's if I can get the blade our after all the crimping.??? TIS The sharp or blade side is designed to cut planks, the blunt side of the blade designed to nip planks for bending.
|
|
|
Rank: Pro Groups: Registered
Joined: 29/03/2010 Posts: 202 Points: 569 Location: sunderland
|
Thats it then! I was using the sharp side of the blade (the way it came), I never picked up on it being turned round, I've never used one of these plank benders before and as far as this kit is concerned I probably won't need it again as the remaining bends are not too tight.
I don't know why there is a sharp side, I would'nt dream of cutting a plank with it!
Jeff
|
|
|
|
