Dremel JIG for chamfering Planks --- With SPECS. Options
Previous Topic · Next Topic
Gauncer
#1 Posted : 17 December 2015 20:50:40

Rank: Semi-Pro Level 2

Build-Diary Medal: Build-Diary Medal of Honour
Groups: Registered

Joined: 30/04/2015
Posts: 75
Points: 234
Location: St. Louis USA

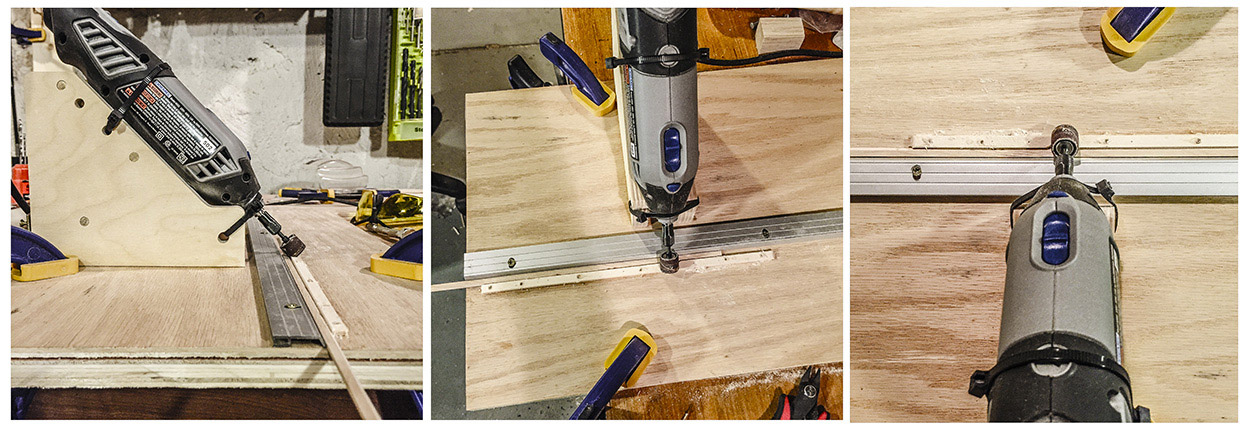

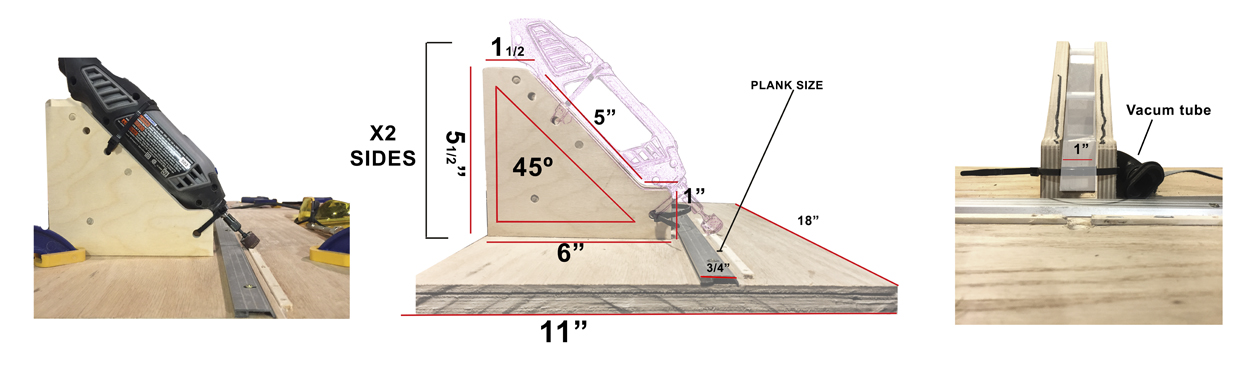

@eebygum asked if I would send spec for the jig I mad for my Victory build.

You can find the info to build and modify your own jig.

Thanks for looking.

JG

File Attachment(s):
IMG_9469 copy.jpg (364kb) downloaded 22 time(s).
Gauncer attached the following image(s):
In the workshop: HMS Victory
Finished builds: Providence Whaleboat
Back to top
 Report Abusive | Report SPAM | Edit by user: 17/12/2015 21:06:47 | Reason: Not specified
tf64
#2 Posted : 17 December 2015 22:45:40

Rank: Elite
Publisher Medal: Featured Build of the Month May 2020Active Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 13/02/2011
Posts: 2,239
Points: 6,837
Location: East Sussex
Hi Gauncer,
Great tool you have made, well done and thank you for showing us all how to jig up for planking this will be a great help.

Regards
Trev.
Work in progress: Tombstone (Scratch) - San Francisco 2. -The Mayflower ( scratch by plan).

OcCre- Santa-Maria (Kit).
Back to top
 Report Abusive | Report SPAM
greyhawk
#3 Posted : 17 December 2015 23:24:21

Rank: Master

Active Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 19/05/2015
Posts: 1,419
Points: 4,272
Location: Darmstadt, Germany
Back to top
 Report Abusive | Report SPAM
Gauncer
#4 Posted : 21 December 2015 16:36:29

Rank: Semi-Pro Level 2

Build-Diary Medal: Build-Diary Medal of Honour
Groups: Registered

Joined: 30/04/2015
Posts: 75
Points: 234
Location: St. Louis USA
Thanks Greyhawk and Trev.

To everyone who may make their own jig. Share you pics. Lets see those modification.
-JG
In the workshop: HMS Victory
Finished builds: Providence Whaleboat
Back to top
 Report Abusive | Report SPAM
eebygum
#5 Posted : 05 February 2016 23:01:16

Rank: Pro

Build-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 18/08/2015
Posts: 294
Points: 897
Location: Amesbury, Wiltshire
Hi

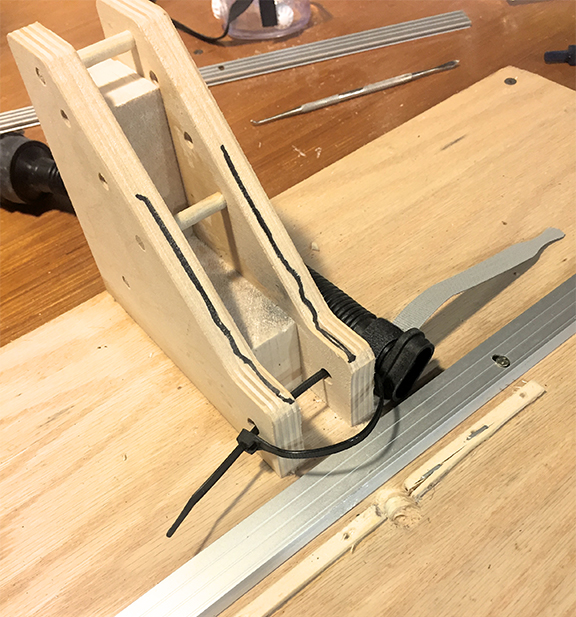

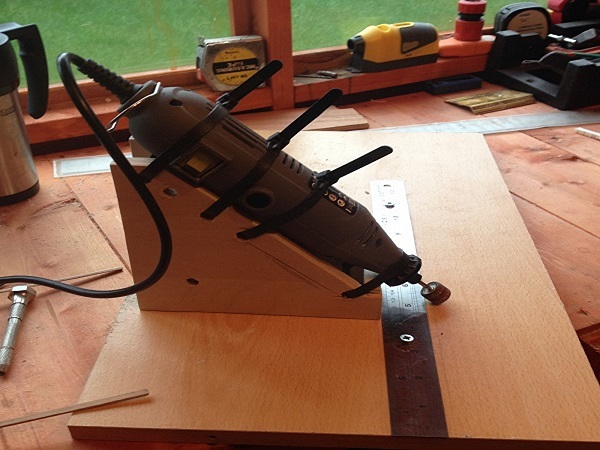

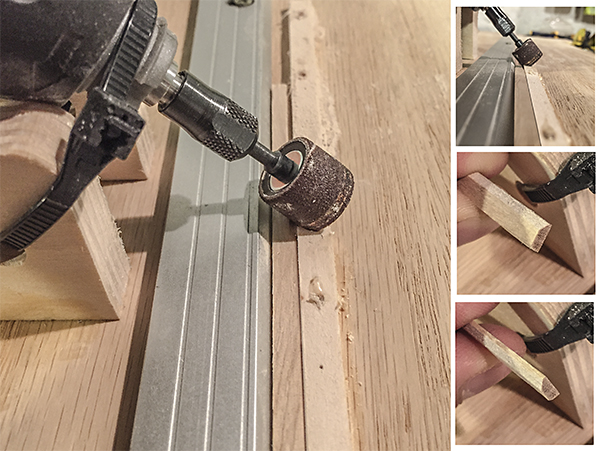

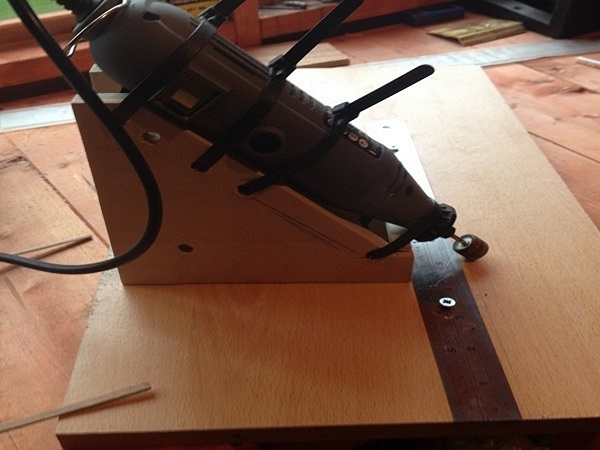

Here's my jig not much of a carpenter but at least it worked. Thanks to Jason
eebygum attached the following image(s):
FINISHED BUILDS---- HMS Victory--Bismarck--Battleship Yamato-D51 Steam Train--Pocher Ferrari Testarossa--Soleil Royal--Schnellboot S-100--StageCoach 1848--HMS HOOD-- Delorean (Back to the Future)
Back to top
 Report Abusive | Report SPAM
