hello there fellow ship modelers
before I start cutting out the gun ports is it ok to be a tad under size hole wise like for example instead of 12mm on all corners it is 1.97 or 1.99 etc. because I tried several time to make a jig that is 12mm X12mm I seem to miss the 12mm measurement also can I just clean out the square hole with a sanding stick if I do not have a square file. by the way Alan can you tell me where you got your square file from thank you
Ronald
Tomick
#2 Posted : 19 September 2018 16:22:03

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348
Perma-grit 6.5mm square file fine
https://www.permagrit.com/square-file-6mm-fine/
z8000783
#3 Posted : 19 September 2018 16:28:09

Rank: Elite
Active Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of Honour
Groups: Unapproved

Joined: 24/05/2010
Posts: 1,761
Points: 5,351
Location: London & Greece
I bought some ladies emery boards for nails from John Lewis or similar. They are exactly 12 mm at the widest point and ideal for sanding to the correct size.
Gandale
#4 Posted : 19 September 2018 17:42:08

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered, Global Forum Support, Moderator, Official Builds, Administrators

Joined: 08/09/2012
Posts: 15,172
Points: 46,151
Location: Aberdeen
Hi Ron,

The instructions call for the ports to be 12x12mm therefore you should make your ports as close to this as you can. It can be easily achieved by using emery boards, the same kind as ladies would use for their nails. Just check your size frequently until you have the size needed.

My files are part of a set.

https://www.permagrit.co...and-tools-in-roll-fine/

Regards

Alan
ronald305
#5 Posted : 19 September 2018 17:54:30

Rank: Pro

Groups: Registered

Joined: 08/02/2015
Posts: 426
Points: 1,259
Location: Louisiana
thanks everyone
I need to decide either buy the emery boards or the perm grit square file or file set I doubt I will be able to find any john Lewis emery boards or the permi grit files in the US but I look for something similar
Ronald
arpurchase
#6 Posted : 20 September 2018 07:09:01

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 27/09/2011
Posts: 15,196
Points: 45,687
Location: Dudley
BigGrin Link to US Perma-Grit distributor below:-

http://www.bvmjets.com/pages/catalog/permagrit.htm
Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .

ronald305
#7 Posted : 28 September 2018 16:14:56

Rank: Pro

Groups: Registered

Joined: 08/02/2015
Posts: 426
Points: 1,259
Location: Louisiana
Hi Alan
you didn't mentioned it in the video but did you use a ruler or calipers to
make sure the gun port holes were 12mm X 12mm I hope they do not need to be
perfect close maybe I will try to get them at 12mm thank you
Ronald
Gandale
#8 Posted : 28 September 2018 17:46:26

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered, Global Forum Support, Moderator, Official Builds, Administrators

Joined: 08/09/2012
Posts: 15,172
Points: 46,151
Location: Aberdeen
ronald305 wrote:
Hi Alan
you didn't mentioned it in the video but did you use a ruler or calipers to
make sure the gun port holes were 12mm X 12mm I hope they do not need to be
perfect close maybe I will try to get them at 12mm thank you
Ronald

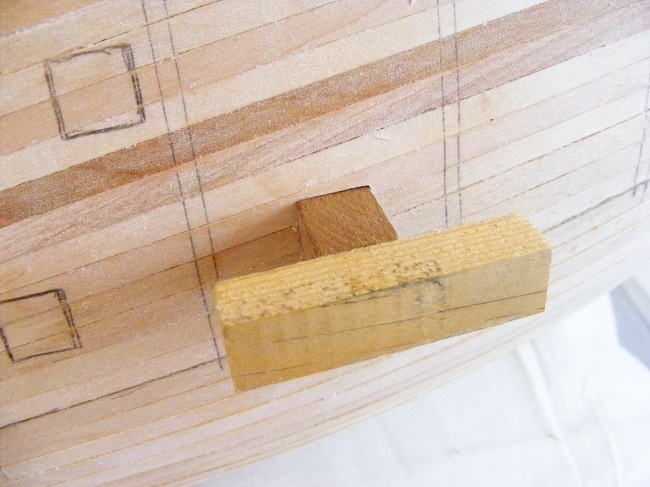

Hi Ronald, normally I check the ports by making up a jig. Made one up from a wooden strip that was 12x12mm…..

Regards

Alan

Gandale attached the following image(s):
Port jig.jpg
ronald305
#9 Posted : 30 September 2018 18:41:23

Rank: Pro

Groups: Registered

Joined: 08/02/2015
Posts: 426
Points: 1,259
Location: Louisiana
I've tried to make one out of pieces of tin first then out plywood left over from the bow fillers, I will try to make one like you have in the picture
Ronald
ronald305
#10 Posted : 30 September 2018 19:35:29

Rank: Pro

Groups: Registered

Joined: 08/02/2015
Posts: 426
Points: 1,259
Location: Louisiana
can't promise it will come right I have been using digital calipers and a 6" ruler
Ronald
