Hi All,

Me again, with a new question... sorry... Blink

Could the pros here help me how the double parrel for the fore yard should be tied to the yard?
Figure A:
The two ends of the threads are separated, go above and and below the yard and tied together on the front together using e.g. a reef knot.

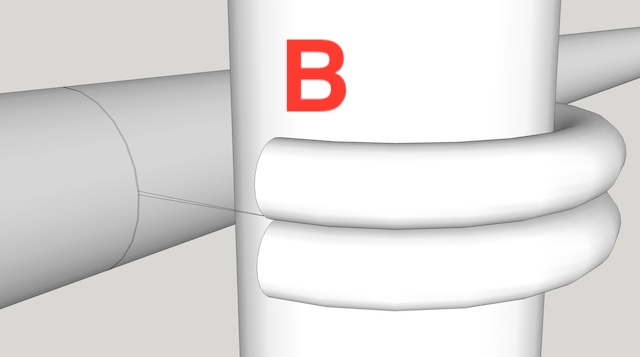

Figure B:
The two ends stay together, go around the yard together and tied behind the yard using e.g. two half-hitches

Which way is the correct way? A or B?
gingerale75 attached the following image(s):
Happy building!
Laszlo

Finished builds: HMS Victory, HMS Victory Cross-Section
Plymouth57
#2 Posted : 27 October 2018 20:37:03

Rank: Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 03/10/2012
Posts: 2,072
Points: 6,211
Location: Plympton
Hi there Ginger!

I checked on one of my jpegs of the rigging of the parrels and according to the diagram you start with a complete loop around the port side of the yard which is lashed together just behind the yard. The two separate ropes then pass around the mast (with the parrel blocks on of course) and then the lower rope passes around the spar on the starboard side and is joined to the top rope just in front of the mast, each end being looped around the other and lashed together. Once joined the two ropes are lashed together right behind the spar like the port side.
It sounds really complicated but I can send you a copy of the pic if you'd like.

Best of luck!

Robin
First wooden ship: The Grimsby 12 Gun 'Frigate' by Constructo Second: Bounty DelPrado Part Works Third: HMS Victory DelPrado Part Works 1/100 scale
Diorama of the Battle of the Brandywine from the American Revolutionary War Diorama of the Battle of New Falkland (unfinished sci-fi), Great War Centenary Diorama of the Messines Ridge Assault
Index for the Victory diary is on page 1
gingerale75
#3 Posted : 27 October 2018 20:41:18

Rank: Pro
Build-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 30/11/2017
Posts: 493
Points: 1,482
Location: South Norfolk
Plymouth57 wrote:
Hi there Ginger!

I checked on one of my jpegs of the rigging of the parrels and according to the diagram you start with a complete loop around the port side of the yard which is lashed together just behind the yard. The two separate ropes then pass around the mast (with the parrel blocks on of course) and then the lower rope passes around the spar on the starboard side and is joined to the top rope just in front of the mast, each end being looped around the other and lashed together. Once joined the two ropes are lashed together right behind the spar like the port side.
It sounds really complicated but I can send you a copy of the pic if you'd like.

Best of luck!

Robin


Hi Robin,

Thanks for your reply, a picture would help.
Happy building!
Laszlo

Finished builds: HMS Victory, HMS Victory Cross-Section
Plymouth57
#4 Posted : 28 October 2018 22:54:07

Rank: Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 03/10/2012
Posts: 2,072
Points: 6,211
Location: Plympton

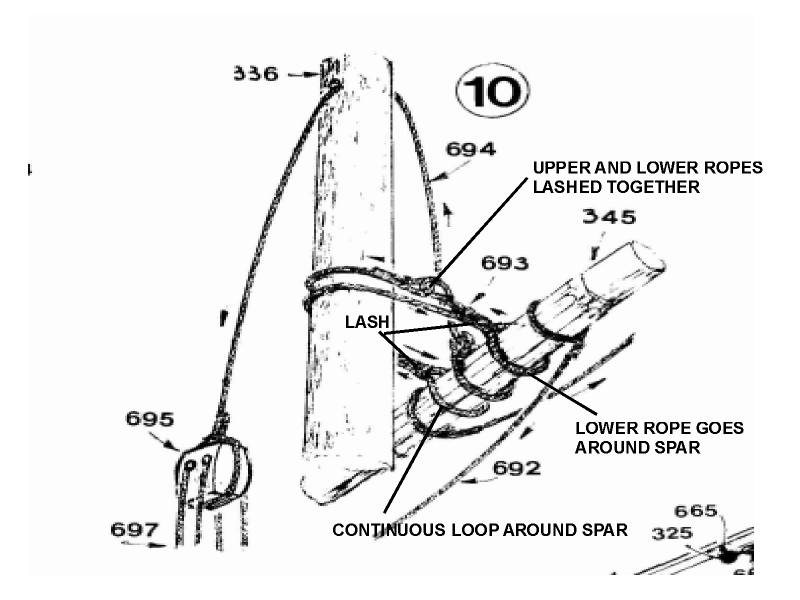

Here you go, sorry it's not crystal clear - this is a small section from a much larger pic which is enlarged way past its optimum!Crying

Hopefully the added text will help.

Robin.
Plymouth57 attached the following image(s):
Parrel Rigging Diagram pic.JPG
First wooden ship: The Grimsby 12 Gun 'Frigate' by Constructo Second: Bounty DelPrado Part Works Third: HMS Victory DelPrado Part Works 1/100 scale
Diorama of the Battle of the Brandywine from the American Revolutionary War Diorama of the Battle of New Falkland (unfinished sci-fi), Great War Centenary Diorama of the Messines Ridge Assault
Index for the Victory diary is on page 1
gingerale75
#5 Posted : 28 October 2018 23:31:09

Rank: Pro
Build-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 30/11/2017
Posts: 493
Points: 1,482
Location: South Norfolk
Hi Robin,

Thanks for the diagram, definitely helps and makes it much clearer than the text only. BigGrin
Happy building!
Laszlo

Finished builds: HMS Victory, HMS Victory Cross-Section
