Hi All,
I`m back with the next pack of ET, that covers issues 87-92.
Parts supplied.....Pic 1, you also need ET(on his stand) and the two remaining cables from Issue 65.
Start by plugging one of the cables 65-01 into the front/lower side of the circuit board, as indicated in Pic 2.
Take one of the ribs 87-01. Place the cable just fitted and the cable to ET`s heart and position them into the hook of the rib. Then fit the rib in the lowest position as shown in Pic 3.
Now place both cables into the other three ribs 65-01 in the same manner as the first, Pic 4. The free end of the cable 65-01 is now passed under the chest plate as shown in Pic 5.
Connect the second cable 65-01 to the first and slot it behind the clip nearest ET`s shoulder, all in Pic 6. Then place the cable into the second clip of the upper arm and connect the loose end with the cable from ET`s finger, as shown in Pic 7.

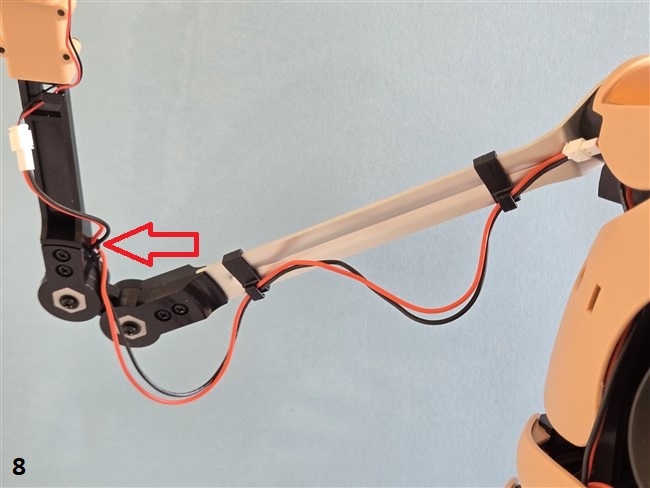

Finally position the cable into the final clip (just below ET`s elbow) as shown in Pic 8.

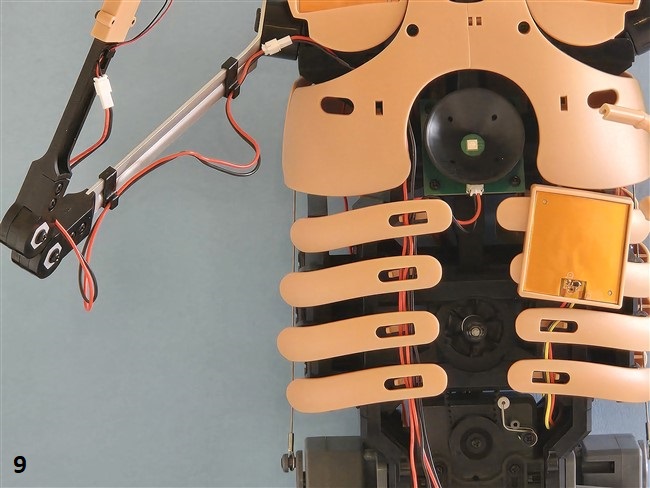

Pics 9 and 10 show how things should look at the end of this update.
Regards
delboy271155
(Derek)delboy271155 attached the following image(s): COME BACK GUY FAWKES "YOUR COUNTRY NEEDS YOU"
|
|
|
Rank: Super-Elite Groups: Registered, Forum Support Team, Administrators, Global Forum Support Team, Moderator, Official Builds Joined: 09/11/2012 Posts: 8,500 Points: 24,591 Location: East midlands
|
Hi All,
Its ET update time with Issue 88.
Parts supplied.....Pic 1, you will also need the main model assembly.
Before we start on any construction there`s a small tidy up to do. The large group of wires with the large plug need to be fed behind the rear upper back plate, see Pic 2.
Now position the wires from the right shoulder sensor into the hook on one of the ribs 88-01 and press the rib into position as shown in Pic 3. With the wires not connected at the bottom end, I thought it easier to fit the ribs from top to bottom. It ends up the same either way.
Fit the other ribs 3 x 88-01 in the same manner, Pic 4. Finally, plug the loose end of the wires into the rear/lower circuit board as indicated in Pic 5.
Pics 6 and 7 show the end assembly for this update.
Regards
delboy271155
(Derek) delboy271155 attached the following image(s): COME BACK GUY FAWKES "YOUR COUNTRY NEEDS YOU"
|
|
|
Rank: Super-Elite Groups: Registered, Forum Support Team, Administrators, Global Forum Support Team, Moderator, Official Builds Joined: 09/11/2012 Posts: 8,500 Points: 24,591 Location: East midlands
|
Hi All,
Here we are with the Issue 89 update, where we fit ET`s left hip.
Parts supplied.....Pic 1, you will also need ET on his stand.
Start with the hip parts 89-01 and 89-02. Press the parts together, engaging the hooks on 89-02 over the edge of 89-01, as in Pic 2.
Working om ET`s left side, remove the two screws indicated in Pic 3 and the panel 63-02, shown in Pic 4. NOTE: At this point ET`s body is only connected to his legs on one side, so if you have to move him make sure the base is supported.
Fix the plate you just removed to the hip assembly and fix them together with 2 x P-TP screws, Pic 5. Now engage the hook at the bottom of the assembly into its previous position and fit the shoulder plates onto the long posts that emerge from ET`s side. Make sure all the parts are fully engaged and fix them together with 2 x P-TP screws as shown in Pic 6. The completion of this update is shown in Pic 7.
Regards
delboy271155
(Derek)delboy271155 attached the following image(s): COME BACK GUY FAWKES "YOUR COUNTRY NEEDS YOU"
|
|
|
Rank: Super-Elite Groups: Registered, Forum Support Team, Administrators, Global Forum Support Team, Moderator, Official Builds Joined: 09/11/2012 Posts: 8,500 Points: 24,591 Location: East midlands
|
Hi All,
Here we are with the next ET update, Issue 90. This will be a shortened update as it replicates Issue 89, just the opposite side.
Parts supplied.....Pic 1, you will also need ET on his stand.
Remove the screws from the Torso to Leg connector plate 63-02 (right hand side) and remove the part. Press the parts 90-01 and 90-02 together and fix them to the part removed with 2 x P-TP screws, Pic 2.

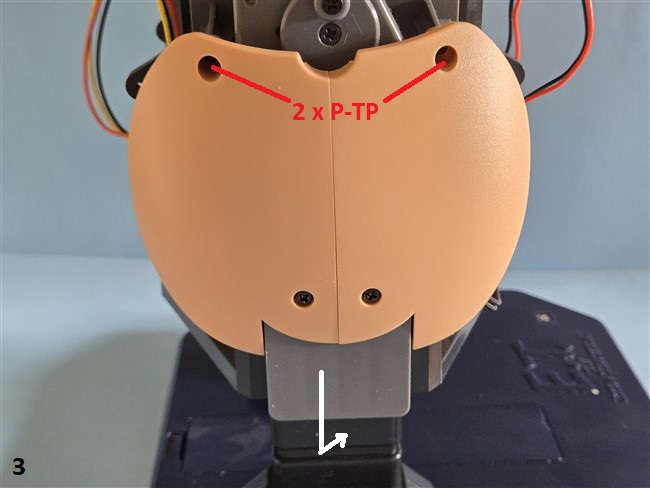

Hook the bottom of the assembly back to the model and fix the top edge with 2 x P-TP screws, Pic 3.
Pics 4 and 5 show the end result of this update.
Regards
delboy271155
(Derek)delboy271155 attached the following image(s): COME BACK GUY FAWKES "YOUR COUNTRY NEEDS YOU"
|
|
|
|
