Hi All,
Looks like the replacement parts for issue 44 are going to be a while longer, so I`ll move onto Issue 45 in this thread.
Parts supplied..... Pic 1.

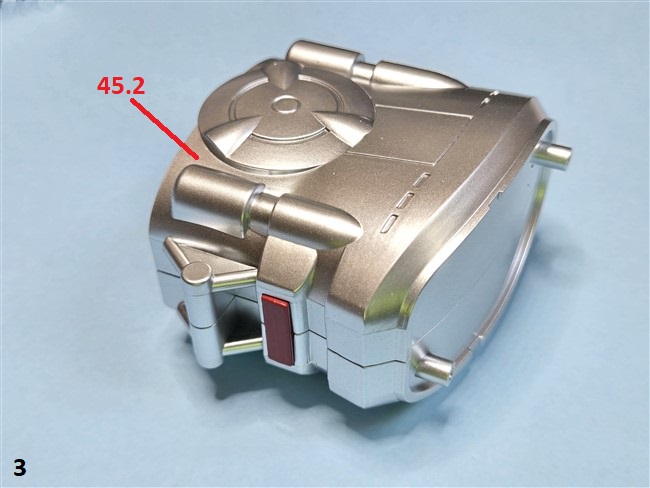

Press the trim 45.8 into place on the left leg (right side) 45.3 as shown in Pic 2. Then add the left leg (left side) 45.2 as in Pic 3.
Now position the top of the foot 45.4 onto the previous assembly, Pic 4 and fix its position with 2 x PB screws, as shown in Pic 5. Keep the assembly the same way up and fix the internal structure 45.6 with 3 x PB screws, Pic 6.

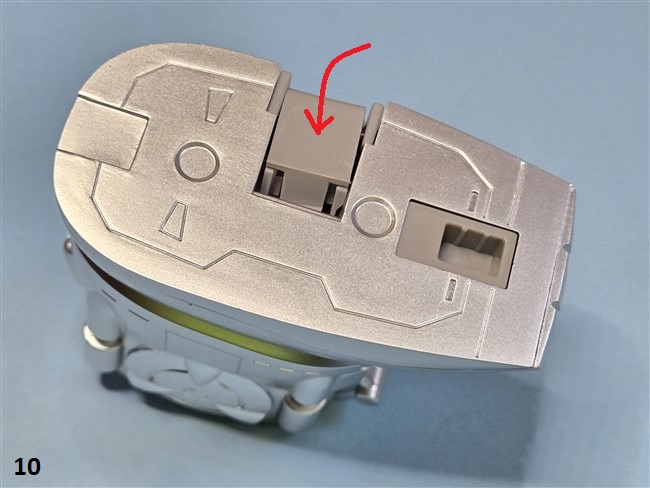

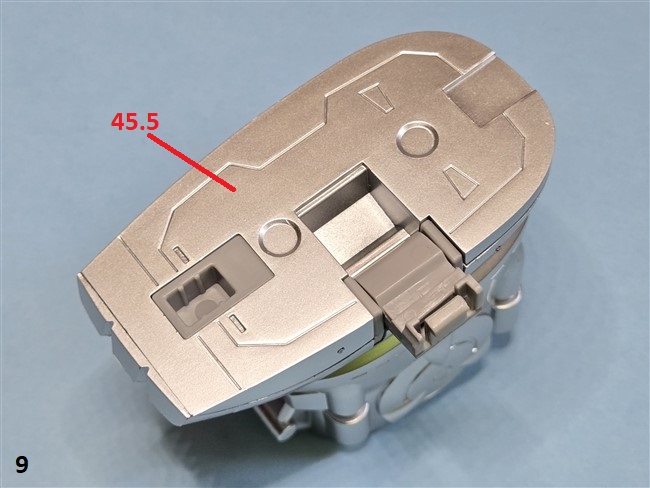

Next, carefully check the orientation and fit the connector 45.7 with the pin 45.9 as in Pic 7 and the pin fully engaged in Pic 8. Now press fit the bottom of the foot 45.5 into position as shown in Pic 9 and pivot the connector to its internal position, Pic 10.
Finally, add the top cover plate (not fixed at this time) onto the assembly, as indicated in Pic 11. That`s all there is for this update, with the final assembly shown in Pic 12.
Regards
delboy271155
