STAGE 57:
Rear right suspension 4.
Pic 1: Retrieve the assembly from the previous stage and locate the arm 57A.
It will fit in the backplate 55A where indicated.
Pic 2: Fit the parts together as shown and fix with 1 x S screw.
Pic 3: Fit the deflector 57B to the backplate, fitting the pins on the deflector into the holes on the backplate.
Fix with 1 x R screw from the other side.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,438 Points: 16,466 Location: ipswich
|
STAGE 58:
Rear right suspension 5.
Pic 1: Retrieve the assembly from the previous stage and locate the outer cover 58A.
The pins on the upper edge will locate in the holes on 55A where indicated.
Pic 2: Press-fit the part into place.
Pic 3: Store the assembly and unused part safely.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,438 Points: 16,466 Location: ipswich
|
STAGE 59:
Rear right suspension 6.
Pic 1: Locate the disc 59A and fit the hooked end of the outer strip 59C into the slot on the edge of the disc.
Pic 2: Wrap the strip around the disc and fold in the other end into the disc.
Pic 3: Locate the other disc part 59B.
It will press-fit onto the disc assembly.
Pic 4: Parts assembled.
Pic 5: Retrieve the assembly from the previous stage and fit the disc in place as shown.

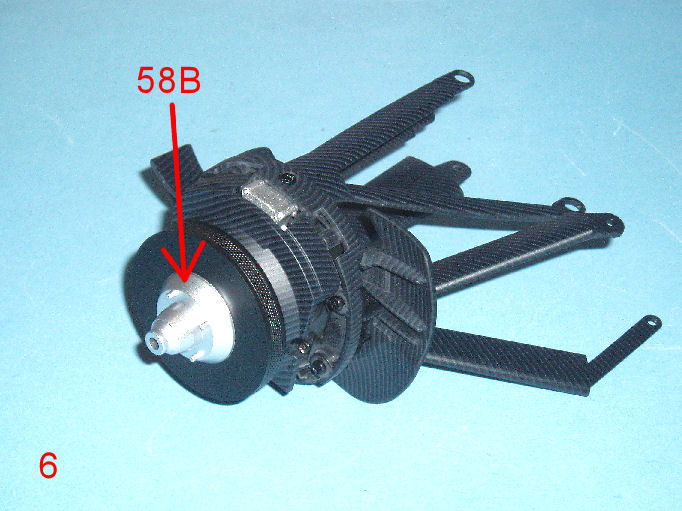

Pic 6: Press-fit the hub 58B in place.
Store the assembly safely.
roymattblack attached the following image(s):
|
|
|
|
